Привод трака 2 для снегоходов Yamaha SX Viper (2002)

Москва и регионы России

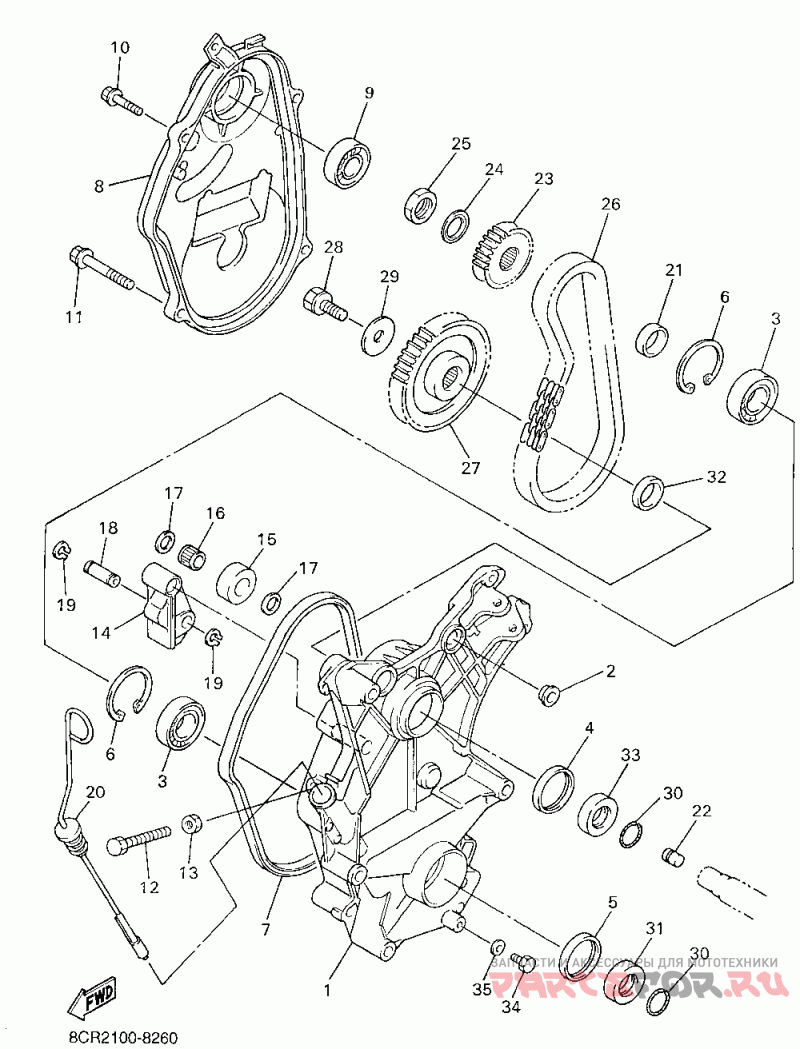

Привод трака 2

Yamaha SX Viper

Привод трака 2

#

oem код

название

цена

1

8CR-47541-01-00

Housing, Chain (8ek1)

Housing, Chain (8ek1)

2

Nut, Spec'l Shape (8ek1)

Nut, Spec'l Shape (8ek1)

3

Bearing (8ek1)

Bearing (8ek1)

4

Oil Seal (8ek1)

Oil Seal (8ek1)

5

Oil Seal, Sd-type (8ek1)

Oil Seal, Sd-type (8ek1)

6

Circlip (8ek1)

Circlip (8ek1)

7

8CR-47558-01-00

Ring, Housing/gasket (8ek1)

Ring, Housing/gasket (8ek1)

8

8CR-47543-01-00

Cap, Housing (8ek1)

Cap, Housing (8ek1)

9

Bearing (8ek1)

Bearing (8ek1)

10

Bolt, Flange (8ek1)

Bolt, Flange (8ek1)

11

Bolt, Flange (8ek1)

Bolt, Flange (8ek1)

12

Bolt (8ek1)

Bolt (8ek1)

13

Nut (6td) (8ek1)

Nut (6td) (8ek1)

14

8CR-47613-00-00

Holder (8ek1)

Holder (8ek1)

15

8CR-47612-00-00

Wheel (8ek1)

Wheel (8ek1)

16

Bearing, Cyl.#15 (8ek1)

Bearing, Cyl.#15 (8ek1)

17

Washer, Plate (8ek1)

Washer, Plate (8ek1)

18

Pin, Spec'l Shape (8ek1)

Pin, Spec'l Shape (8ek1)

19

Circlip (8ek1)

Circlip (8ek1)

20

8CR-47546-00-00

Level, Oil (8ek1)

Level, Oil (8ek1)

21

Collar, Sprocket (8ek1)

Collar, Sprocket (8ek1)

22

82M-17699-00-00

Plug, Oil (8ek1)

Plug, Oil (8ek1)

23

8DW-17682-20-00

22t Sprocket, Chain (8ek1)

22t Sprocket, Chain (8ek1)

24

Washer, Conical Spr (8ek1)

Washer, Conical Spr (8ek1)

25

Nut, Hexagon (8ek1)

Nut, Hexagon (8ek1)

26

68l Chain, Borg Warn (8ek1)

68l Chain, Borg Warn (8ek1)

27

8DW-47587-81-00

Sprocket, Chain Driv (8ek1)

Sprocket, Chain Driv (8ek1)

28

Bolt, Flange (3gd) (8ek1)

Bolt, Flange (3gd) (8ek1)

29

Washer, Plate (8ek1)

Washer, Plate (8ek1)

30

O-ring (8ek1)

O-ring (8ek1)

31

Collar (8ek1)

Collar (8ek1)

32

Collar (8ek1)

Collar (8ek1)

33

Collar (8ek1)

Collar (8ek1)

34

Bolt (8bc) (8ek1)

Bolt (8bc) (8ek1)

35

Washer, Seal (8ek1)

Washer, Seal (8ek1)
