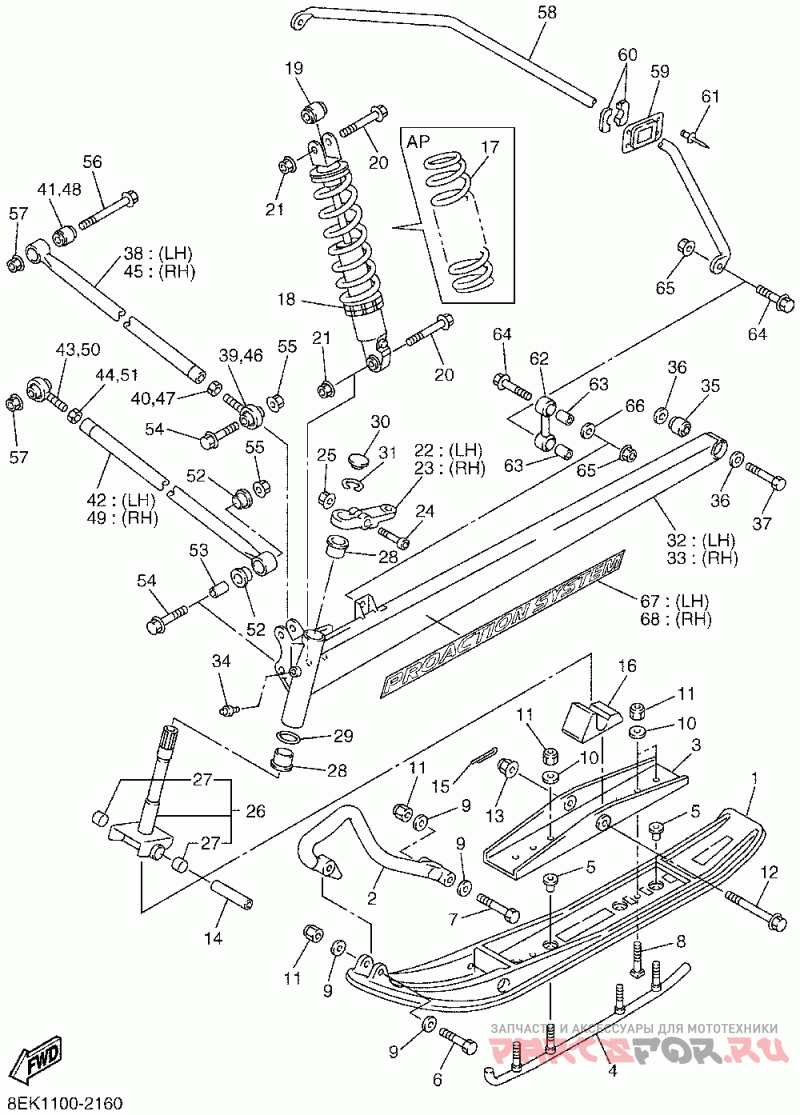

Лыжа

Yamaha SX Viper

Yamaha
#oem кодцена
1
8EK-23711-00-00
Ski 1 (8ek1)
2
8DM-23712-00-BU
Blue 8dm Handle Plas (8ek1)
3
8EK-F3766-00-00
Saddle 1 (8ek1)
4
8EK-23731-00-XX
Runner 1 (8ek1)
5
8EK-F3751-00-00
Bush, Ski 1 (8ek1)
6
97017-08055-00
Bolt, Hexagon (8ek1)
7
97027-08100-00
Bolt (83l) (8ek1)
8
90108-08002-00
Bolt, Square (8ek1)
9
90201-08784-00
Washer, Plate (8ek1)
10
90201-086P8-00
Washer, Plate (8ek1)
11
95717-08300-00
Nut, Lock (8ek1)
12
90105-10712-00
Bolt, Washer Based (8ek1)
13
95607-10200-00
Nut, Self-locking (8ek1)
14
90387-1012H-00
Collar (8ek1)
15
91490-20025-00
Pin, Cotter (8ek1)
16
8CR-23743-10-00
Stopper 1 (8ek1)
17
8CX-23760-00-00
Spring, Shock Ap(8ek1)
17
8CX-23760-10-00
Spring, Compressn Ap(8ek1)
17
8CH-23760-40-00
Spring, Shock Ap(8ek1)
17
8CH-23760-50-00
Spring, Shock Ap(8ek1)
17
8CH-23760-60-00
Spring, Shock Ap(8ek1)
18
8EK-2376A-00-00
Absorber Assy 1 (8ek1)
19
8CR-2376B-00-00
Bush (8ek1)
20
90105-10030-00
Bolt, Flange (8ek1)
22
8EK-23851-00-00
Arm, Outside 1 (8ek1)
23
8EK-23852-00-00
Arm, Outside 2 (8ek1)
24
91314-08035-00
Bolt, Socket (8ek1)
25
95604-08200-00
Nut, U Flange (8ek1)
26
8EK-23803-00-00
Column, Ski Assy (8ek1)
27
90384-16251-00
Bush, Bimetal Form (8ek1)
28
90381-25115-00
Bush, Solid (8ek1)
29
90201-301G3-00
Washer, Plate (8ek1)
30
8CR-23741-10-00
Cap 1 (8ek1)
31
99009-25400-00
Circlip (8ek1)
32
8DM-2382E-10-00
Arm, Front 1 (8ek1)
33
8DM-2382F-10-00
Arm, Front 2 (8ek1)
34
93700-06M03-00
Nipple, Grease (8ek1)
35
8CR-2516A-00-00
Damper, Trailing Arm (8ek1)
36
90201-120T5-00
Washer, Plate (8ek1)
37
90101-12780-00
Bolt (8ek1)
38
8EK-2384E-00-00
Arm, Control 1 (8ek1)
39
8EK-23823-00-00
Joint 2 (8ek1)
40
95337-12600-00
Nut (6ta) (8ek1)
41
8EK-23775-00-00
Insert (8ek1)
42
8EK-2384F-00-00
Arm, Control 2 (8ek1)
43
8EK-23832-00-00
Joint 3 (8ek1)
44
95314-14600-00
Nut (8ek1)
52
90381-17110-00
Bush, Solid (8ek1)
53
90387-1009K-00
Collar (8ek1)
56
90105-12010-00
Bolt, Washer Based (8ek1)
57
95607-12200-00
Nut, U Flange (8ek1)
58
8CR-2386E-00-00
Bar, Stablzr Front (8ek1)
59
8CR-2386H-00-00
Cover, Stablzr Frt (8ek1)
60
8CR-2386G-00-00
Bush, Stablzr Front (8ek1)
61
90267-47186-00
Rivet, Blind (8ek1)
62
8DF-2385L-00-00
Joint, Stabilizer (8ek1)
63
90387-087L3-00
Collar (8ek1)
65
90185-08169-00
Nut, Self Locking (8ek1)
67
8EA-77371-30-00
Emblem 15 (8ek1)
68
8EA-77372-30-00
Emblem 16 (8ek1)
3
8DM-23766-00-00
Saddle 1 (8ek1)
4
SMA-F3731-EK-00
Ski Runner Kit (8ek1)
21
95607-10200-00
Nut, Self-locking (8ek1)
45
8EK-2384E-00-00
Arm, Control 1 (8ek1)
46
8EK-23823-00-00
Joint 2 (8ek1)
47
95337-12600-00
Nut (6ta) (8ek1)
48
8EK-23775-00-00
Insert (8ek1)
49
8EK-2384F-00-00
Arm, Control 2 (8ek1)
50
8EK-23832-00-00
Joint 3 (8ek1)
51
95314-14600-00
Nut (8ek1)
54
90105-10030-00
Bolt, Flange (8ek1)
55
95607-10200-00
Nut, Self-locking (8ek1)
66
90201-086P8-00
Washer, Plate (8ek1)
