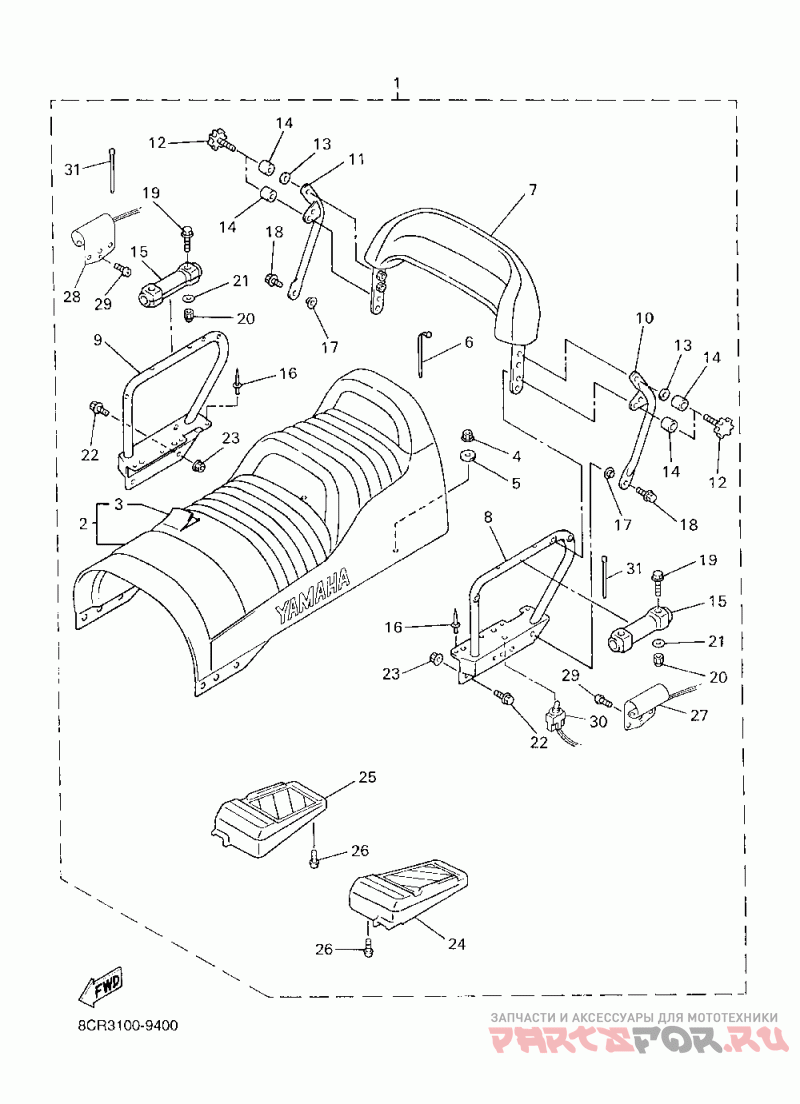

Alternate body rig 1

Yamaha SX 600R

Alternate body rig 1

#

oem код

название

цена

1

8CY-W2473-20-00

Semi-dobule Seat Ass Ap (8ea3)

Semi-dobule Seat Ass Ap (8ea3)

2

8CY-24730-20-00

Double Seat Assy (8ea3)

Double Seat Assy (8ea3)

3

8CY-2470F-20-00

Cover, Seat (8ea3)

Cover, Seat (8ea3)

4

Nut, Lock (8ea3)

Nut, Lock (8ea3)

5

Washer, Plate (8ea3)

Washer, Plate (8ea3)

6

Clamp (8ea3)

Clamp (8ea3)

7

8CW-24790-10-00

Seat Back Assy (8ea3)

Seat Back Assy (8ea3)

8

8CW-2474H-01-00

Bracket, Assist Gr (8ea3)

Bracket, Assist Gr (8ea3)

9

8CW-2474J-01-00

Brkt, Assist Grip 2 (8ea3)

Brkt, Assist Grip 2 (8ea3)

10

8CW-24797-00-00

Bracket, Seat Back (8ea3)

Bracket, Seat Back (8ea3)

11

8CW-2479L-00-00

Bracket, Seat (8ea3)

Bracket, Seat (8ea3)

12

8CW-2479H-00-00

Body, Seat Lock (8ea3)

Body, Seat Lock (8ea3)

13

Washer, Plate (8ea3)

Washer, Plate (8ea3)

14

8CW-24737-00-00

Damper, Seat (8ea3)

Damper, Seat (8ea3)

15

8CW-2474A-00-00

Assist, Grip (8ea3)

Assist, Grip (8ea3)

16

Rivet, Blind (8ea3)

Rivet, Blind (8ea3)

17

Collar (8ea3)

Collar (8ea3)

18

Bolt, Flange (jn5) (8ea3)

Bolt, Flange (jn5) (8ea3)

19

Bolt, Flange (8ea3)

Bolt, Flange (8ea3)

20

Nut(4my) (8ea3)

Nut(4my) (8ea3)

21

Washer (6ta) (8ea3)

Washer (6ta) (8ea3)

22

Bolt, Flange (8ea3)

Bolt, Flange (8ea3)

23

Nut, Flange (jn5) (8ea3)

Nut, Flange (jn5) (8ea3)

24

8DM-27431-02-00

Footrest, Rear 1 (8ea3)

Footrest, Rear 1 (8ea3)

25

8DM-27441-02-00

Footrest, Rear 2 (8ea3)

Footrest, Rear 2 (8ea3)

26

Screw, Tapping (8ea3)

Screw, Tapping (8ea3)

27

8CW-2474B-00-00

Asst Grip Warm Asy (8ea3)

Asst Grip Warm Asy (8ea3)

28

8CW-2474C-00-00

Asst Grip Warm Asy (8ea3)

Asst Grip Warm Asy (8ea3)

29

Screw, Truss (8ea3)

Screw, Truss (8ea3)

30

8CY-82917-00-00

Switch (8ea3)

Switch (8ea3)

31

Clamp (8ea3)

Clamp (8ea3)
