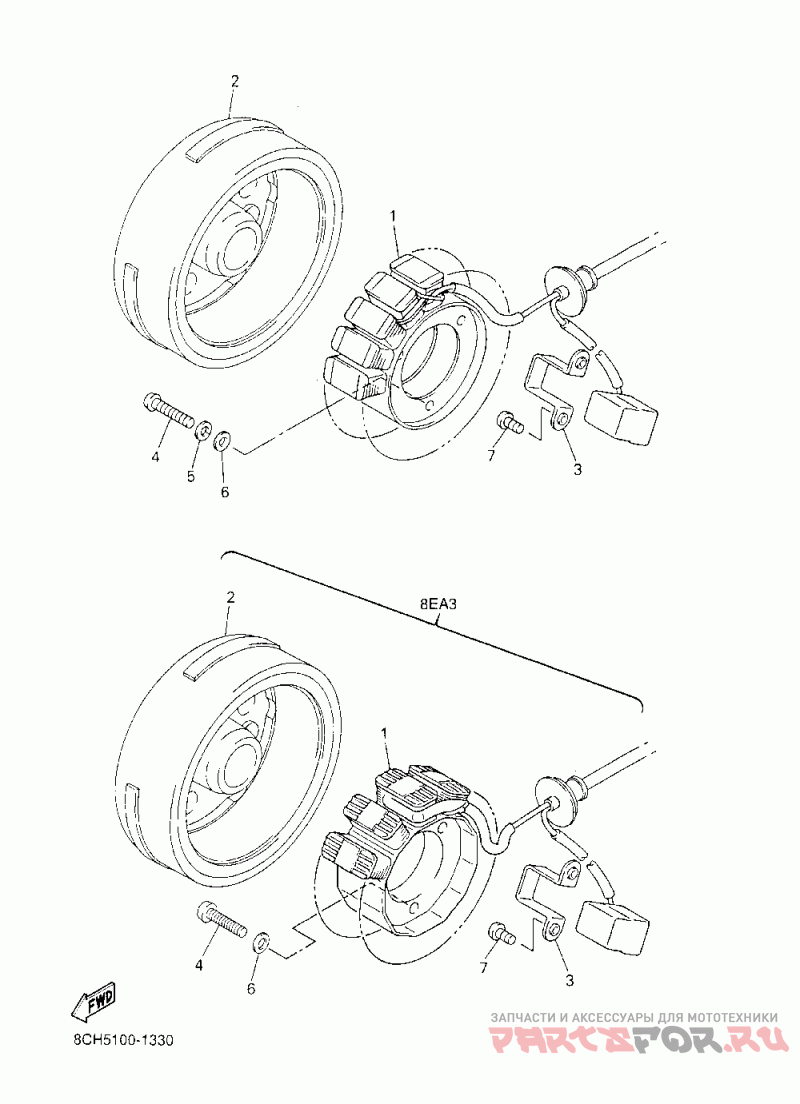

Генератор
Yamaha SX 600R
| # | oem код | название | цена |
|---|---|---|---|
1 | 8CH-85510-02-00 Stator Assy (8ea3) | Stator Assy (8ea3) | |
1 | 8DM-81410-00-00 Stator Assy (8ch5) | Stator Assy (8ch5) | |
2 | 8CH-85550-01-00 Rotor Asy (8ea3) | Rotor Asy (8ea3) | |
2 | 8DM-81450-00-00 Rotor Assy (8ch5) | Rotor Assy (8ch5) | |
3 | 90465-10385-00 Зажим | Зажим | |
4 | 98517-06025-00 Screw, Pan Head (8ea3) | Screw, Pan Head (8ea3) | |
4 | 98517-06030-00 Screw, Pan Head (8ch5) | Screw, Pan Head (8ch5) | |
5 | 92907-06100-00 Washer, Spring (8ch5) | Washer, Spring (8ch5) | |
6 | 92907-06600-00 Шайба | Шайба | |
7 | 98507-05014-00 Винт | Винт |
