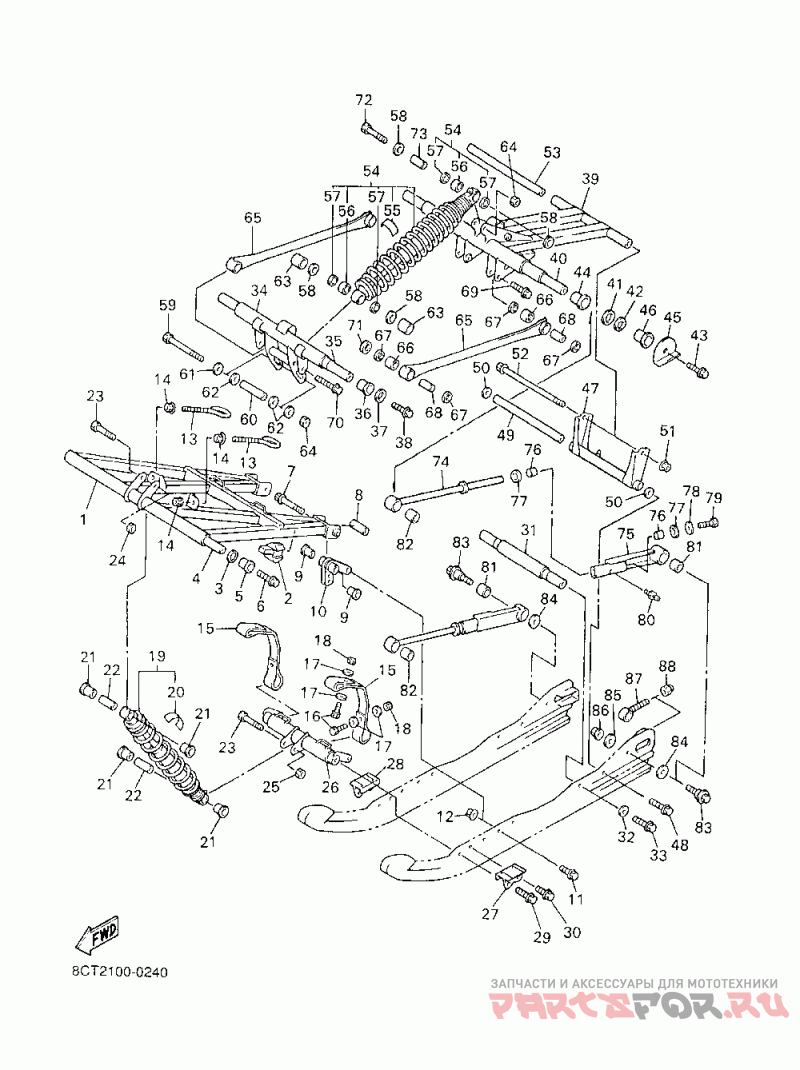

Подвеска трака 2

Yamaha SX 500R

Yamaha
#oem кодцена
1
8CV-47331-01-00
Arm, Pivot 1 (usa)
2
8DF-47456-10-00
Damper 1 (usa)
3
90201-210U0-00
Washer, Plate (usa)
4
8CR-47465-00-00
Shaft 1 (usa)
5
90381-19111-00
Bush, Solid (usa)
6
90105-103A1-00
Bolt, Washer Based (usa)
7
90105-10029-00
Bolt, Flange (usa)
8
90387-1009T-00
Collar (usa)
9
90381-15112-00
Bush, Solid (usa)
10
8CR-47415-00-00
Bracket 1 (usa)
11
95817-10025-00
Bolt, Flange (3gd) (usa)
12
95607-10200-00
Nut, Self-locking (usa)
13
8CR-47448-00-00
Hook 3 (usa)
14
95707-08500-00
Nut, Flange (jn5) (usa)
15
8CR-47495-00-00
Stopper 1 (usa)
16
97017-06025-00
Bolt, Hexagon (usa)
17
90201-06747-00
Washer, Plate (usa)
18
95707-06300-00
Nut, Flange (usa)
19
8CH-47481-40-00
Shock Absorber 2 (usa)
20
4AA-22259-60-00
Label, Warning (usa)
21
90381-14101-00
Bush, Solid (usa)
22
90387-105G5-00
Collar (usa)
23
90101-10738-00
Bolt (usa)
24
90185-10120-00
Nut, Self-locking (usa)
25
95617-10100-00
Nut, U (usa)
26
8EA-47418-00-00
Bracket 4 (usa)
27
8DF-47463-01-00
Bracket 5 (usa)
28
8DF-47464-01-00
Bracket 6 (usa)
29
95817-10030-00
Bolt, Flange (usa)
30
95817-08020-00
Bolt, Flange(8ab) (usa)
31
8CR-47486-00-00
Shaft 4 (usa)
32
90201-106F2-00
Washer, Plate (usa)
34
8CR-47416-10-00
Bracket 2 (usa)
35
8CR-47488-00-00
Shaft 6 (usa)
36
90381-22099-00
Bush, Solid (usa)
37
90201-207J5-00
Washer, Plate (usa)
39
8CR-47332-10-00
Arm, Pivot 2 (usa)
40
8CR-47475-00-00
Shaft 2 (usa)
41
90201-251G8-00
Washer, Plate (usa)
42
90201-250T6-00
Washer, Plate (usa)
44
90381-28108-00
Bush, Solid (usa)
45
8CR-47426-11-00
Bracket, Rear 1 (usa)
46
8CR-47425-00-00
Bracket, Rear 2 (usa)
47
8CR-47417-01-00
Bracket 3 (usa)
49
82M-47485-02-00
Shaft 3 (usa)
50
90201-10136-00
Washer, Plate (usa)
51
90185-08169-00
Nut, Self Locking (usa)
52
95827-08220-00
Bolt, Flange (usa)
53
90387-083G6-00
Collar (usa)
54
8CH-47480-40-00
Shock Absorber (usa)
56
93315-21454-00
Bearing, Cylindrica (usa)
57
93109-14021-00
Oil Seal, Sdo-type (usa)
58
90202-14226-00
Washer, Plate (usa)
59
8AC-4631K-00-00
Bolt, Adjusting (usa)
60
90387-1009S-00
Collar (usa)
61
90201-103U4-00
Washer, Plate (usa)
62
90201-100U1-00
Washer, Plate (usa)
63
90387-1404R-00
Collar (usa)
65
8CX-47494-01-00
Rod, Relay (usa)
66
93315-21455-00
Bearing, Cylindrical (usa)
68
90387-1007M-00
Collar (usa)
69
95817-10035-00
Bolt, Flange (usa)
70
95814-10040-00
Bolt, Flange (usa)
73
90387-1007N-00
Collar (usa)
74
8CR-4745A-01-00
Rod, Control 1 (usa)
75
8CR-4745B-00-00
Rod, Control 2 (usa)
76
90384-16251-00
Bush, Bimetal Form (usa)
77
90202-16232-00
Washer, Plate (usa)
79
97017-10025-00
Bolt(59v) (usa)
80
93700-06M03-00
Nipple, Grease (usa)
81
90380-22232-00
Bush, Solid (usa)
82
90380-28235-00
Bush, Solid (usa)
83
8DF-47367-09-00
Screw, Rear Pivot (usa)
84
90201-100S2-00
Washer, Plate (usa)
85
90201-101U2-00
Washer, Plate (usa)
87
8K2-47479-01-00
Collar 3 (usa)
88
95707-10300-00
Nut, Nylon (usa)
33
95817-10030-00
Bolt, Flange (usa)
38
90105-103A1-00
Bolt, Washer Based (usa)
43
90105-103A1-00
Bolt, Washer Based (usa)
48
95817-10030-00
Bolt, Flange (usa)
55
4AA-22259-60-00
Label, Warning (usa)
64
95617-10100-00
Nut, U (usa)
67
93109-14021-00
Oil Seal, Sdo-type (usa)
71
90201-100U1-00
Washer, Plate (usa)
72
90101-10738-00
Bolt (usa)
78
90201-106F2-00
Washer, Plate (usa)
86
95607-10200-00
Nut, Self-locking (usa)
