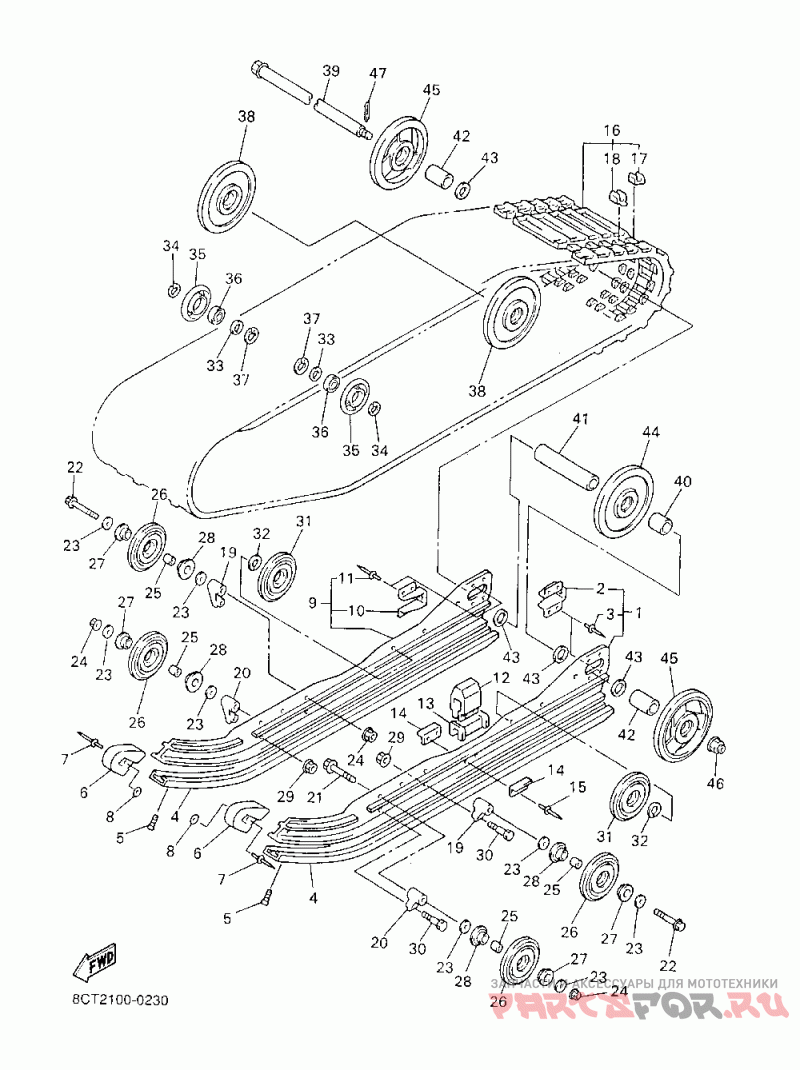

Подвеска трака 1

Yamaha SX 500R

Yamaha
#oem кодцена
1
8EA-47411-00-00
Sliding Frame (usa)
2
8V0-4741B-00-00
Bracket (usa)
3
8V0-47468-00-00
Rivet (usa)
4
SMA-8CM92-70-BK
121 Black Hyfax (usa)
5
90151-06005-00
)screw, Crossrecess (usa)
6
8ED-47422-00-00
Runner, Sliding 2 (usa)
7
90267-48194-00
Rivet, Blind (usa)
8
90201-047R8-00
Washer, Plate (usa)
9
8EA-47412-00-00
Sliding Frame (usa)
12
8CM-47457-00-00
Damper 2 (usa)
13
8CM-47341-00-00
Spacer (usa)
14
8AX-47458-00-00
Plate, Damper (usa)
15
90267-48199-00
Rivet, Blind (usa)
16
8EA-47110-10-00
Track Assy (usa)
17
8EA-47113-00-00
Plate, Reinforceme (usa)
18
8EA-47115-00-00
Metal, Slide (usa)
19
8DF-47419-00-00
Bracket 7 (usa)
20
8DF-47419-10-00
Bracket 7 (usa)
21
90105-10392-00
Bolt, Washer Based (usa)
22
95817-10085-00
Bolt, Flange (usa)
23
90201-100S0-00
Washer, Plate (usa)
24
95607-10200-00
Nut, Self-locking (usa)
25
90387-10079-00
Collar (usa)
26
8CR-4731A-00-00
Bogey Wheel W Spacer (usa)
27
8CR-47341-01-00
Spacer (usa)
28
8CR-47341-11-00
Spacer (usa)
29
90185-08169-00
Nut, Self Locking (usa)
30
90101-08774-00
Bolt (usa)
32
99009-25400-00
Circlip (usa)
33
90387-2004V-00
Collar (usa)
34
99009-20400-00
Circlip (usa)
35
8H8-47320-00-00
Suspension Wheel (usa)
36
93306-00444-00
Bearing (usa)
37
99009-42500-00
Circlip (usa)
38
8CR-47550-00-00
Guide, Wheel (usa)
39
8L8-47520-02-00
Rear Axle (usa)
40
90387-2012E-00
Collar (usa)
41
90387-2013L-00
Collar (usa)
42
90387-2012D-00
Collar (usa)
43
90201-205R6-00
Washer, Plate (usa)
44
8CR-47550-10-00
Guide Wheel Assy (usa)
45
8DF-47550-01-SL
Wheel Silver Plastic (usa)
46
95607-14200-00
Nut, Self-locking (usa)
47
91490-30030-00
Pin, Cotter (usa)
10
8V0-4741B-00-00
Bracket (usa)
11
8V0-47468-00-00
Rivet (usa)
31
8CR-4731A-00-00
Bogey Wheel W Spacer (usa)
47
91401-30025-00
Pin, Cotter (usa)
