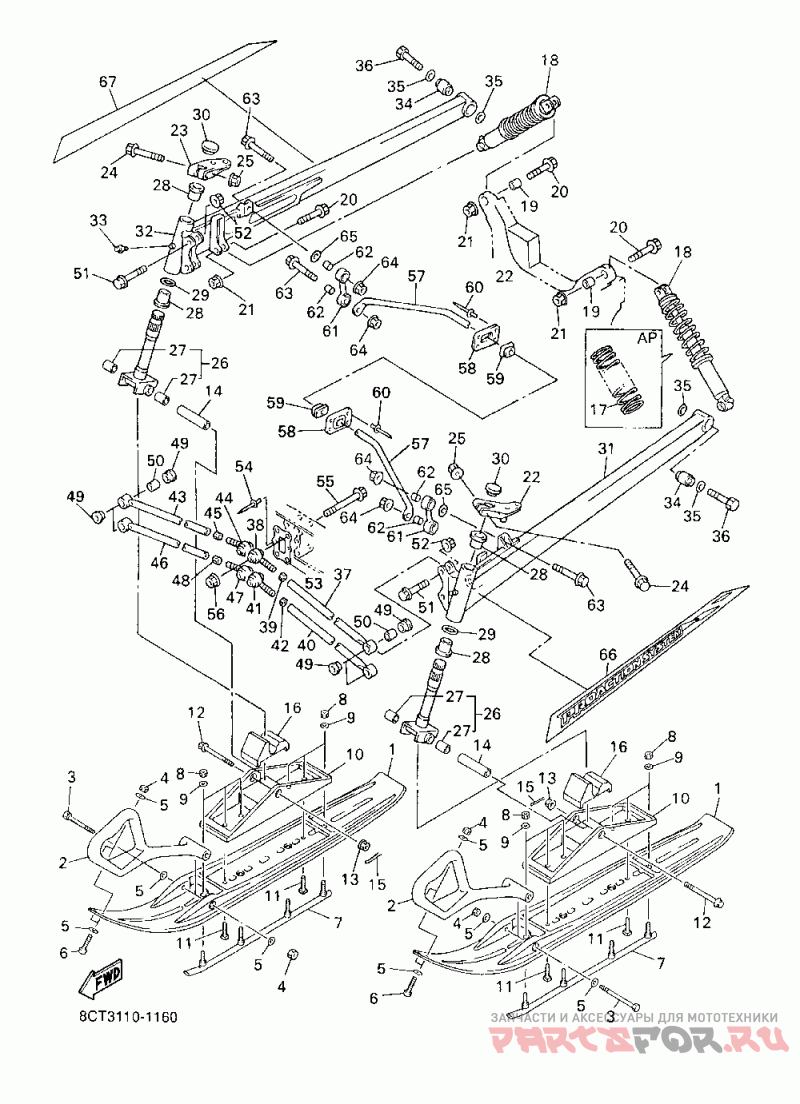

Лыжа

Yamaha SX 500R

Yamaha
#oem кодцена
1
8DF-23711-19-00
Ski 1 (usa)
2
GYT-8DN91-35-BL
Gyt/8df Ski Handle B (usa)
3
8DF-23755-00-00
Bolt, Reinf. Head (usa)
4
95717-08300-00
Nut, Lock (usa)
5
92907-08200-00
Washer(6tc) (usa)
6
92017-08040-00
Button Head (usa)
7
8DF-23731-20-00
Runner 1 (usa)
9
90201-086P8-00
Washer, Plate (usa)
10
8EA-23766-00-00
Saddle (rocker) (usa)
11
90108-08002-00
Bolt, Square (usa)
12
90105-10712-00
Bolt, Washer Based (usa)
13
95607-10200-00
Nut, Self-locking (usa)
14
90387-1012H-00
Collar (usa)
15
91490-20025-00
Pin, Cotter (usa)
16
8CS-23743-00-00
Stopper 1 (usa)
17
8CH-23760-40-00
Spring, Shock Ap (usa)
17
8CH-23760-50-00
Spring, Shock Ap (usa)
17
8CH-23760-60-00
Spring, Shock Ap (usa)
17
8CX-23760-00-00
Spring, Shock Ap (usa)
17
8CX-23760-10-00
Spring, Compressn Ap (usa)
18
8CT-2376A-40-00
Absorber Assy 1 (usa)
19
8CR-2376B-00-00
Bush (usa)
20
90105-10030-00
Bolt, Flange (usa)
22
8CR-23851-00-00
Arm, Outside 1 (usa)
23
8CR-23852-00-00
Arm, Outside 2 (usa)
24
95817-10055-00
Bolt, Flange (usa)
26
8CR-23803-01-00
Ski Column W Bushing (usa)
27
90384-16251-00
Bush, Bimetal Form (usa)
28
90381-25115-00
Bush, Solid (usa)
29
90201-301G3-00
Washer, Plate (usa)
30
8CR-23741-10-00
Cap 1 (usa)
31
8CR-2382E-20-00
Arm, Front 1 (usa)
32
8CR-2382F-20-00
Arm, Front 2 (usa)
33
93700-06M03-00
Nipple, Grease (usa)
34
8CR-2516A-00-00
Damper, Trailing Arm (usa)
35
90201-120T5-00
Washer, Plate (usa)
36
90101-12780-00
Bolt (usa)
37
8CR-2384E-20-00
Arm, Control 1 (usa)
38
8DN-23823-00-00
Joint 2 (usa)
39
95337-12600-00
Nut (6ta) (usa)
40
8CR-2384F-20-00
Arm, Control 2 (usa)
41
8DN-23832-00-00
Joint 3 (usa)
42
95314-14600-00
Nut (usa)
49
90381-17110-00
Bush, Solid (usa)
50
90387-1009K-00
Collar (usa)
53
8DF-23779-00-00
Washer (usa)
54
90267-48057-00
Rivet, Blind (usa)
55
90105-124A2-00
Bolt, Washer Based (usa)
56
95607-12200-00
Nut, U Flange (usa)
57
8CR-2386E-00-00
Bar, Stablzr Front (usa)
58
8CR-2386H-00-00
Cover, Stablzr Frt (usa)
59
8CR-2386G-00-00
Bush, Stablzr Front (usa)
60
90267-47186-00
Rivet, Blind (usa)
61
8DF-2385L-00-00
Joint, Stabilizer (usa)
62
90387-087L3-00
Collar (usa)
64
90185-08169-00
Nut, Self Locking (usa)
66
8EA-77371-20-00
Emblem 15 (usa)
67
8EA-77372-20-00
Emblem 16 (usa)
8
95717-08300-00
Nut, Lock (usa)
21
95607-10200-00
Nut, Self-locking (usa)
25
95607-10200-00
Nut, Self-locking (usa)
43
8CR-2384E-20-00
Arm, Control 1 (usa)
44
8DN-23823-00-00
Joint 2 (usa)
45
95337-12600-00
Nut (6ta) (usa)
46
8CR-2384F-20-00
Arm, Control 2 (usa)
47
8DN-23832-00-00
Joint 3 (usa)
48
95314-14600-00
Nut (usa)
51
90105-10030-00
Bolt, Flange (usa)
52
95607-10200-00
Nut, Self-locking (usa)
65
90201-086P8-00
Washer, Plate (usa)
