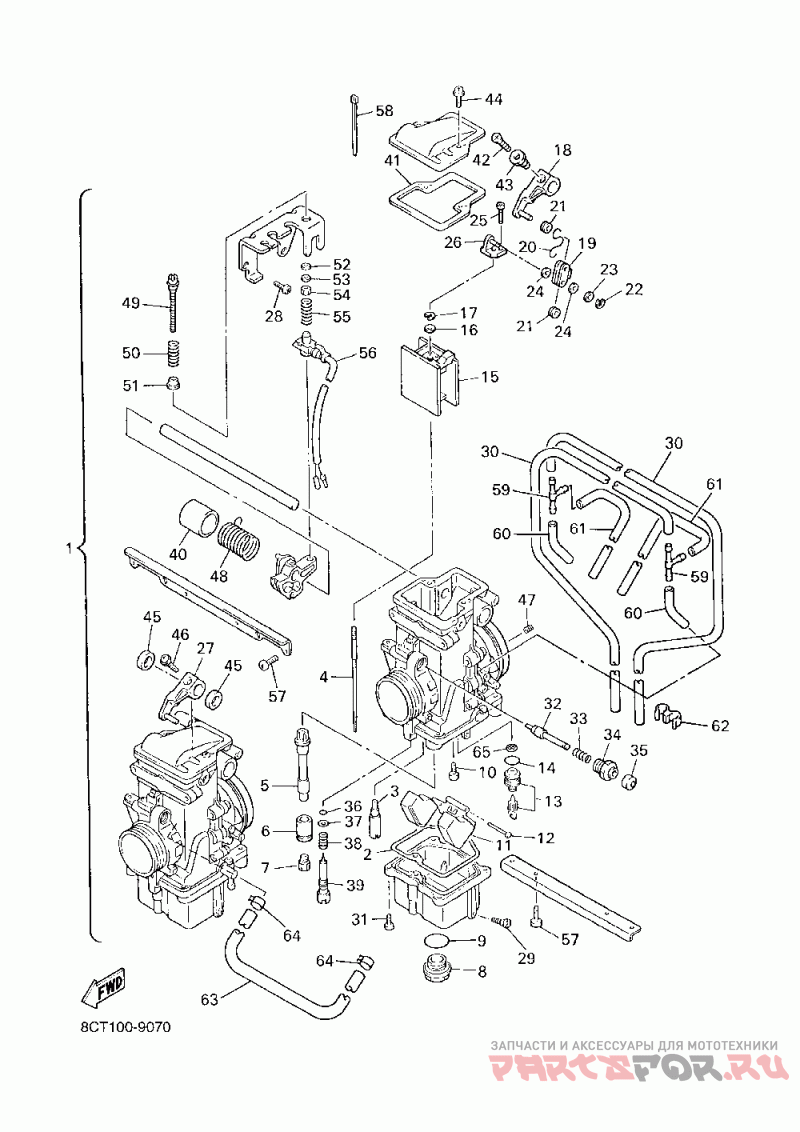

Карбюратор

Yamaha SX 500R

Yamaha
#oem кодцена
1
8CJ-14100-10-00
Carburetor Assy (usa)
2
8AY-14147-00-00
O-ring (usa)
3
3H1-14142-45-00
Jet, Pilot #45 Std (usa)
3
3H1-14142-50-00
Jet, Pilot #50 Ap (usa)
4
8CA-14116-A3-00
Needle (usa)
5
8AY-14141-56-00
Nozzle, Main (usa)
6
8CA-14194-00-00
Ring (usa)
7
3G2-14231-28-00
Jet, Main #140 Ap (usa)
7
3G2-14231-29-00
Jet, Main #145 Ap (usa)
7
3G2-14231-30-A0
Jet, Main (#150) Ap (usa)
7
3G2-14231-31-00
Jet, Main #155 Ap (usa)
7
3G2-1423A-79-00
Jet, Main #142.5 Ap (usa)
7
3G2-1423A-80-A0
Jet, Main(#147.5) Ap (usa)
7
3G2-1423A-81-00
Jet, Main(#152.5) Ap (usa)
7
3G2-1423E-55-00
Jet, Main #138.8 Ap (usa)
7
3G2-1423E-56-00
Jet, Main(#141.3) Ap (usa)
7
3G2-1423E-57-00
Jet, Main #143.8 Ap (usa)
7
3G2-1423E-58-00
Main Jet #146.3 Ap (usa)
7
3G2-1423E-59-00
Jet, Main #148.8 Ap (usa)
7
3G2-1423E-60-00
Jet, Main #151.3 Std (usa)
7
3G2-1423E-61-00
Jet, Main #153.8 Ap (usa)
7
3G2-1423E-62-00
Jet, Main #156.3 Ap (usa)
8
500-14115-00-00
Plug, Screw (usa)
9
558-14147-00-00
O-ring (usa)
10
2LN-14565-00-00
Screw Stop (usa)
11
8AY-14185-10-00
Float (usa)
12
537-14186-00-00
Pin, Float (usa)
13
1AE-14190-15-00
Needle Valve Assy (usa)
14
8F2-14147-00-00
O-ring (usa)
15
8CJ-14112-30-00
Valve, Throttle 1 (usa)
16
8AB-14227-00-00
Jn Shim 0.4mm (usa)
17
256-14919-00-00
Clip (usa)
18
8CW-14905-00-00
Lever, Starter (usa)
19
8AY-14243-00-00
Plate (usa)
20
8CD-14137-00-00
Clip (usa)
21
8CC-14918-00-00
Ring (usa)
22
3MA-14937-00-00
Clip (usa)
23
620-14198-00-00
Gasket (usa)
24
3GF-14126-00-00
Gasket (usa)
25
8CC-14216-00-00
Screw (usa)
26
8CD-14188-00-00
Connector (usa)
27
8CW-14905-10-00
Lever, Starter (usa)
28
98517-05010-00
Screw, Pan Head(3sx (usa)
29
3FV-14191-00-00
Plug, Drain (usa)
30
8CJ-14348-00-00
Pipe 1 (usa)
31
98580-04014-00
Screw, Pan Head (usa)
32
8CW-14171-00-00
Plunger, Starter (usa)
33
256-14135-00-00
Spring, Plunger (usa)
34
1FN-14174-00-00
Cap, Plunger (usa)
35
302-14173-00-00
Cover, Plunger Cap (usa)
36
3H1-14147-00-00
O-ring (usa)
37
3H1-14962-00-00
Washer (usa)
38
5K7-14134-00-00
Spring, Air Adj (usa)
39
89A-14565-00-00
Screw, Pilot Adjusti (usa)
40
8AY-14265-00-00
Collar (usa)
41
8AY-14199-00-00
Gasket (usa)
42
98703-05018-00
Screw, Flat Head (usa)
43
8AY-14918-00-00
Ring (usa)
44
97607-04108-00
Screw Pan Head W/w (usa)
45
583-14264-00-00
Collar (usa)
46
98507-05016-00
Screw, Pan Head (usa)
47
239-14172-06-00
Pilot Jet, Air 0.6 Ap (usa)
47
239-14172-08-00
Pilot Jet, Air 0.8 Std (usa)
48
8CJ-14275-00-00
Spring (usa)
49
8CC-14122-00-00
Screw, Throttle (usa)
50
8X0-14500-00-00
Spring (usa)
51
8X0-14184-00-00
Collar (usa)
52
22F-14117-00-00
Washer, Plug Screw (usa)
53
90201-05328-00
Washer, Plate (usa)
54
89A-14594-00-00
Nut (usa)
55
8X0-14133-00-00
Spring, Thrtl Stop (usa)
56
87S-8259A-01-00
Switch, Carburetor (usa)
57
98580-05014-00
Screw, Pan Head (usa)
58
35H-14139-00-00
Clip, Pipe (usa)
59
4N0-14251-00-00
Pipe (t Fitting) (usa)
60
8CH-14348-00-00
Hose (usa)
61
89A-14987-00-00
Hose (usa)
62
87M-14137-00-00
Clip (usa)
63
8CJ-14348-10-00
Pipe 1 (usa)
64
90467-10039-00
Clip, Scissor (usa)
65
1J7-14994-00-00
Net, Filter (usa)
