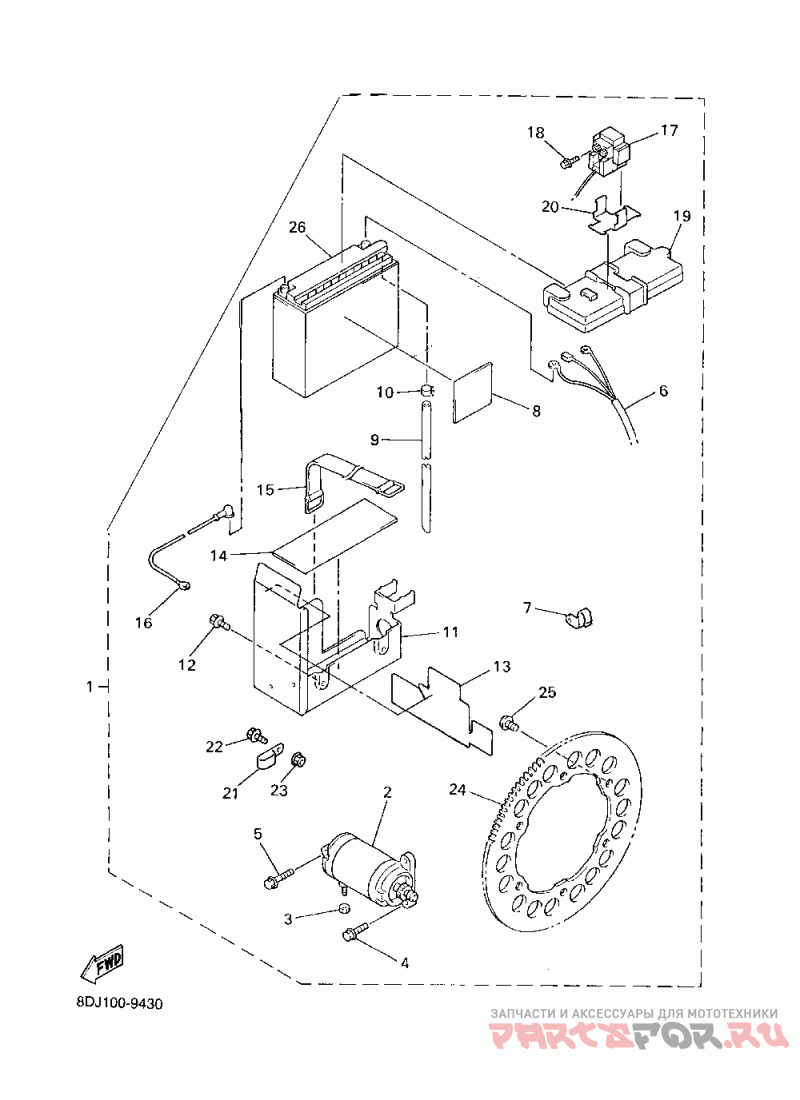

Электрика 1-дооснащение

Yamaha SX 500R

Yamaha
#oem кодцена
1
8CR-W8180-10-00
Starting Motor Set (usa)
2
8CW-81800-01-00
Starting Motor Assy (usa)
3
95317-06600-00
Nut (6ta) (usa)
4
95027-08030-00
Bolt, Small Flange (usa)
5
95027-08080-00
Bolt, Flange (usa)
6
8CY-82116-00-00
Wire, Minus Lead (usa)
7
8DY-82117-00-00
Wire, Lead (usa)
8
8CW-82176-00-00
Damper (usa)
9
8CW-8235W-01-00
Pipe (usa)
10
8CW-2199G-00-00
Bracket, Battery (usa)
11
90105-06827-00
Bolt, Flange (usa)
12
84N-82122-00-00
Seat, Battery (usa)
13
8CY-82131-00-00
Band, Battery (usa)
14
8DY-82115-00-00
Wire, Plus Lead (usa)
15
3EL-81940-02-00
Starter Relay Assy (usa)
16
95027-06008-00
Bolt, Small Flange (usa)
17
8DM-1760A-18-00
Gear 1 (usa)
18
8DV-17617-10-00
Bolt Cap (usa)
19
90465-10381-00
Clamp (usa)
20
90467-08092-00
Clip, Scissor (usa)
21
8CW-2199H-00-00
Shield, Heat (usa)
22
90464-15195-00
Clamp (usa)
23
8DX-82129-00-00
Cover, Battery (usa)
24
8CY-81952-00-00
Holder, Relay (usa)
25
8DY-82509-00-00
Wire, Sub Lead (usa)
26
BTY-YB16A-LA-20
Yb16al-a2 Yuasa Batt (usa)
26
YB1-6ALA2-00-00
Battery (usa)
