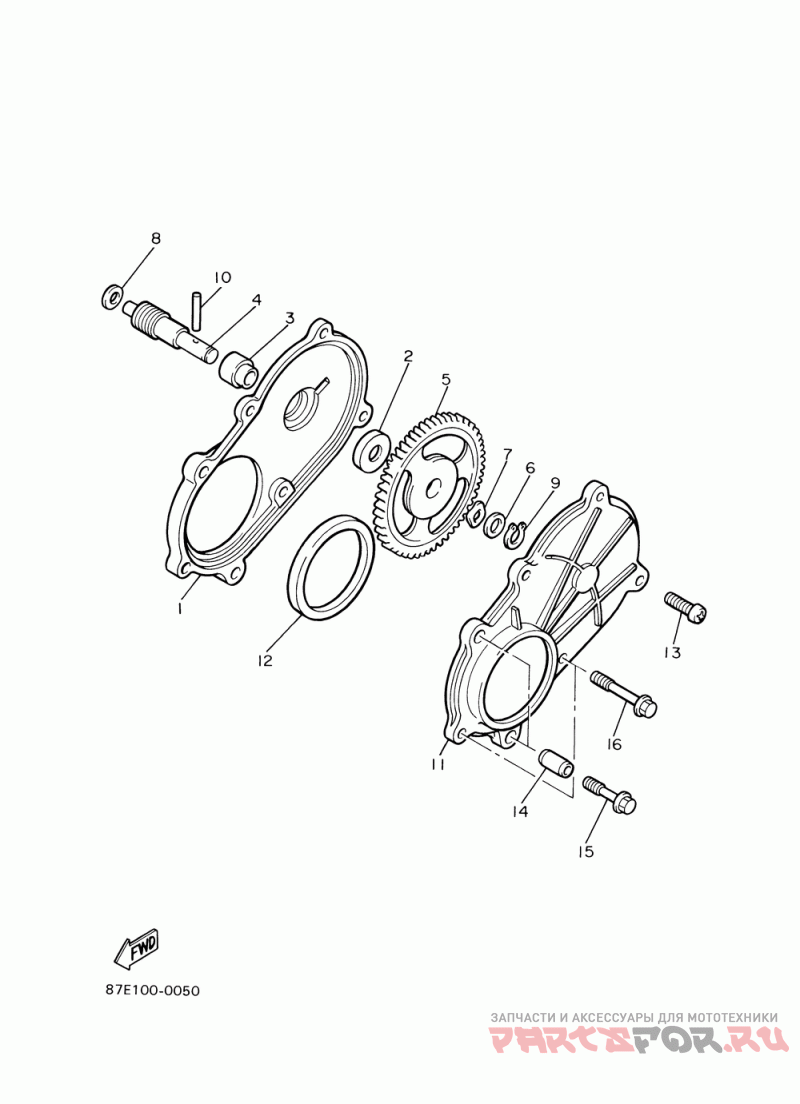

Привод масляного насоса

Yamaha ENTICER II ET410TRF

Yamaha
#oem кодцена
1
85L-15416-00-00
Cover, Oil Pump (usa)
2
93101-10090-00
Oil Seal, S-type (usa)
3
821-13176-00-00
Metal, Wrm Shaf Otr (usa)
4
85L-13175-00-00
Shaft, Worm (usa)
5
8R4-13188-00-00
Gear, Drive (59t) (usa)
6
137-13148-00-00
Plate, Cam Thrust (usa)
7
90206-11016-00
Washer, Wave (usa)
8
90201-08624-00
Washer, Plate (usa)
9
99009-10400-00
Circlip (usa)
10
93603-22028-00
Pin, Dowel (usa)
11
85L-15426-02-00
Cover, Oil Pump R (usa)
12
93104-52079-00
Oil Seal, So-type (usa)
13
98507-06016-00
Screw, Pan Head (usa)
14
91808-22019-00
Pin, Dowel (8ah) (usa)
15
95817-06035-00
Bolt, Flange (usa)
16
95817-06025-00
Bolt, Flange (usa)
