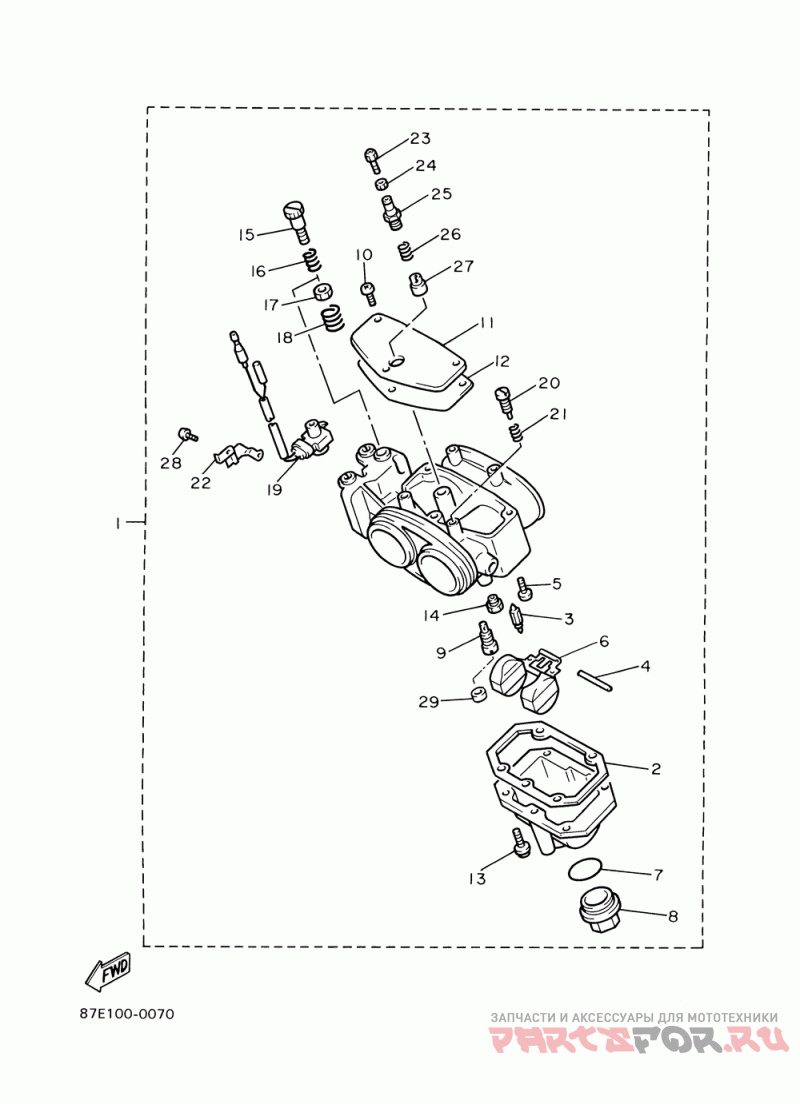

Карбюратор

Yamaha ENTICER II ET410TRF

Yamaha
#oem кодцена
1
89X-14301-00-00
Carburetor Asy 1 (usa)
2
85L-14384-01-00
Gasket, Float Chbr (usa)
3
85L-14392-00-00
Valve, Needle (usa)
4
6E5-14386-01-00
Pin, Float (usa)
5
98980-04006-00
Screw, Bind (usa)
6
87D-14385-00-00
Float (usa)
7
85L-14147-00-00
O-ring (usa)
8
85L-14191-00-00
Plug, Drain (usa)
9
85L-14342-39-00
Jet, Pilot #78 ( 78) Std (usa)
9
85L-14342-40-00
Jet, Pilot #80 ( 80) Ap (usa)
10
98507-05008-00
Screw, Panhead(jn2 (usa)
11
85L-14157-00-00
Cover, Mixing (usa)
12
85L-14227-00-00
Washer (usa)
13
98517-04016-00
Screw, Pan Head (usa)
14
288-14343-80-00
Jet, Main (#160) (160) Ap (usa)
14
288-14329-83-00
Jet, Main #166 (166) Std (usa)
14
288-14329-81-00
Jet, Main #162 (162) Ap (usa)
14
288-14329-78-00
Jet, Main #156 (156) Ap (usa)
14
288-14329-82-00
Jet, Main #164 (164) Ap (usa)
14
288-14329-79-00
Jet, Main #158 (158) Ap (usa)
14
288-14329-77-00
Jet, Main #154 (154) Ap (usa)
14
288-14343-76-00
Jet, Main #152 (152) Ap (usa)
14
288-14329-75-00
Jet, Main (150) Ap (usa)
14
288-14329-74-00
Jet, Main #148 (148) Ap (usa)
15
85L-14321-00-00
Screw, Throttle (usa)
16
85L-14333-00-00
Spring, Thrtl Stop (usa)
17
85L-14358-00-00
Nut (usa)
18
85L-14133-00-00
Spring, Thrtl Stop (usa)
19
87S-8259A-01-00
Switch, Carburetor (usa)
20
85L-14323-00-00
Screw, Air Adj (usa)
21
85L-14334-00-00
Spring, Air Adj (usa)
22
85L-14146-00-00
Plate (usa)
23
288-14124-00-00
Screw, Cable Adj (usa)
24
85L-14161-00-00
Nut, Cable Adj (usa)
25
85L-14374-00-00
Cap, Plunger (usa)
26
85L-14335-01-00
Spring, Plunger (usa)
27
87D-14371-00-00
Plunger, Starter (usa)
28
98580-04008-00
Screw, Pan Head (usa)
29
50M-14355-00-00
Plug (usa)
