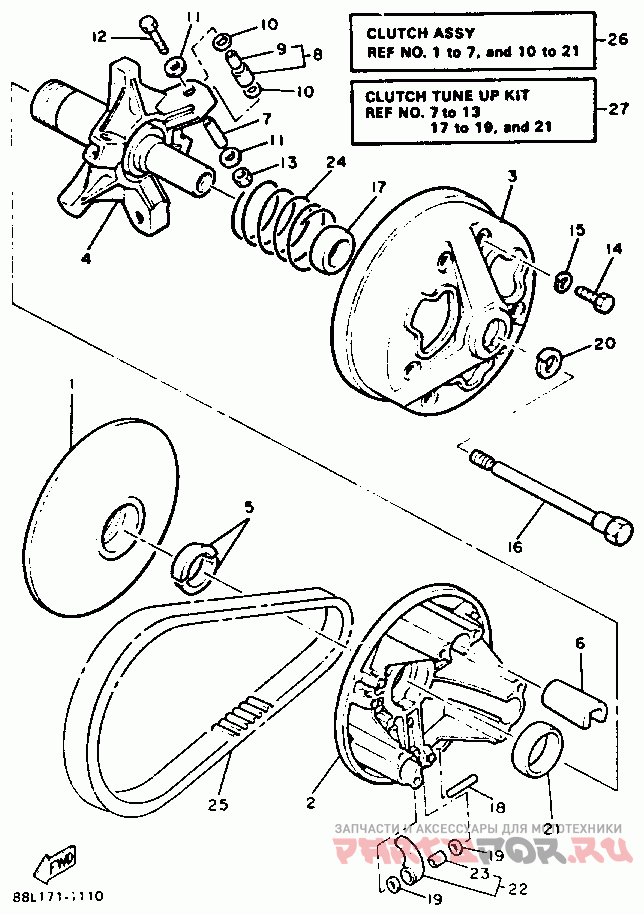

Вариатор для снегоходов Yamaha ENTICER-ET 410TR (1993)

Москва и регионы России

Вариатор

Yamaha ENTICER-ET 410TR

Вариатор

#

oem код

название

цена

1

84J-17611-00-00

Sheave, Prim Fixed O

Sheave, Prim Fixed O

2

8V0-17621-01-00

Sheave, Pri Sliding O

Sheave, Pri Sliding O

3

8V0-17631-00-00

Cap O

Cap O

4

8V0-17640-02-00

Spider, Comp. O

Spider, Comp. O

5

8V0-17639-00-00

Stopper O

Stopper O

6

88X-17653-00-00

Slider O

Slider O

7

Collar O

Collar O

8

87M-W176B-10-00

Roller, W/bush (ex)

Roller, W/bush (ex)

9

Roller Bush Vespel

Roller Bush Vespel

10

Washer, Plate O

Washer, Plate O

11

Washer, Plate (83r) O

Washer, Plate (83r) O

12

Bolt, Hexagon O

Bolt, Hexagon O

13

Nut, U O

Nut, U O

14

Bolt, Hexagon O

Bolt, Hexagon O

15

Washer O

Washer O

16

8V0-17647-00-00

Bolt (l=156; 5mm) O

Bolt (l=156; 5mm) O

17

Bush, Spec'l Shape O

Bush, Spec'l Shape O

18

Pin, Dowel O

Pin, Dowel O

19

Washer, Plate O

Washer, Plate O

20

Washer(jn5) O

Washer(jn5) O

21

Bush, Spec'l Shape O

Bush, Spec'l Shape O

22

83R-W176A-00-00

Weight, With Bush Ur Std

Weight, With Bush Ur Std

22

8V0-W176A-00-00

Weight, With Bush Ap

Weight, With Bush Ap

23

Втулка грузика

Втулка грузика

24

Spring, Compresion Ur Std

Spring, Compresion Ur Std

24

Spring, Compression Ap

Spring, Compression Ap

24

Spring, Compression Ap

Spring, Compression Ap

24

Spring, Compression Ap

Spring, Compression Ap

24

Spring, Compression Ap

Spring, Compression Ap

25

89X-17641-01-00

Ремень вариатора

Ремень вариатора

26

89X-17601-09-00

Clutch Asy Ap Marked O

Clutch Asy Ap Marked O

27

89X-00000-50-00

Clutch Tune-up Kit Ap Marked

Clutch Tune-up Kit Ap Marked
