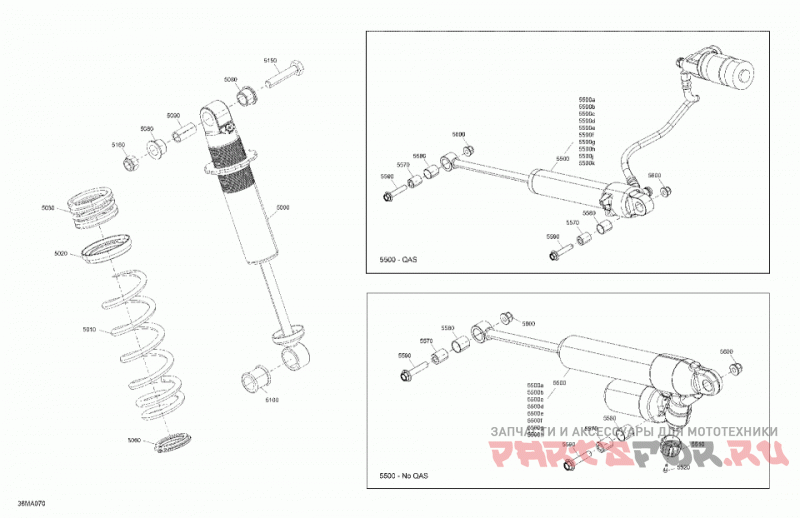

05- suspension - rear shocks

Ski-Doo (Bombardier) 013 - RENEGADE 900 ACE Turbo - X - North America

Ski-Doo (Bombardier)
#oem кодцена
5000
503195275
Central Shock.
5010
503193160
Deep Black, Spring (189mm) Long.
5020
503191281
Spring Spacer.
5030
503193837
Black, Spring (51mm) Short.
5060
503194270
Spring Stopper.
5080
503189117
Bushing Urethane.
5090
503189282
Bushing.
5100
503189271
Bushing.
5150
207005044
Hex. Screw M10 X 1.5 X 50.
5160
233601466
Elastic Locking Nut M10.
5500a
415093807
O-Ring.
5500b
415093806
Piston Ring.
5500c
505070398
Air Valve.
5500d
505070399
Screw.
5500e
505070400
O-Ring.
5500f
715900076
Circlip En C.
5500g
415093804
O-Ring.
5500h
415130165
Base Valve. Without Quick Adjust System.
5500h
415093810
Bolt. With Quick Adjust System.
5500j
415038700
O-Ring. With Quick Adjust System.
5500k
415130165
Base Valve. With Quick Adjust System.
5510
503193033
Shock Adjuster Knob. Without Quick Adjust System.
5520
250000644
Allen Screw M3 X 0.5 X 10. Without Quick Adjust System.
5570
503192606
Rear Shock Axle.
5580
505072663
Leg Cushion.
5590
207684044
Hex. Flanged Screw M8 X 40.
5600
233281466
Elastic Flang Nut M8.
