  5. 010 - EXPEDITION SWT 600R E-TEC - North America

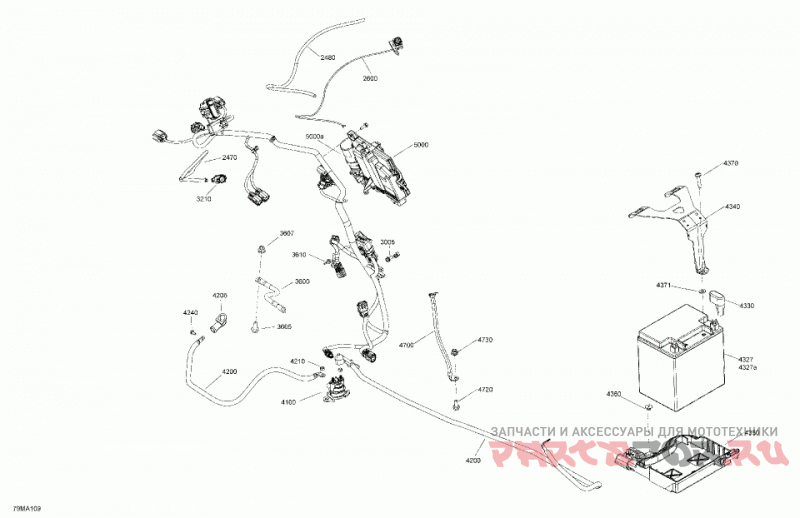

08- electric - lower section

Ski-Doo (Bombardier) 010 - EXPEDITION SWT 600R E-TEC - North America

Ski-Doo (Bombardier)
#oem кодцена
2470
415130141
Sleeve.
2480
415130141
Sleeve.
2600
515177931
Emergency Stop Switch.
3005
250001062
Hex. Flanged Screw M6 X 16.
3210
515178177
4 Circuits Female Housing.
3600
515178248
Ground Wire.
3605
207662044
Hex. Flanged Screw M6 X 20.
3607
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
3610
250000911
Hex. Flanged Screw M5 X 16.
4100
278003012
Starter Relay.
4200
515178919
Positive Cable.
4205
710000495
Protector Cap.
4210
232561434
Elastic Stop Nut M6.
4240
207551044
Flanged Hex. Screw M5 X 10.
4327
515176151
Battery. Includes 4327 to 4327a.
4327a
515176081
Battery Bolt Kit.
4330
710001817
Protector Cap.
4340
515178658
Battery Strip.
4350
515178659
Battery Support Under.
4360
293150103
Pop Rivet 3/16
4370
250000843
Torx Truss Screw M6 X 30.
4371
224061121
Flat Washer.
4700
515178564
Cable.
4720
207661644
Hex. Flanged Screw M6 X 16.
4730
233261416
Elastic Flanged Nut M6 X 1.0.
5000
512061392
Engine Control Module. Includes 5000 to 5000a.
5000a
515177272
Capacitor.
