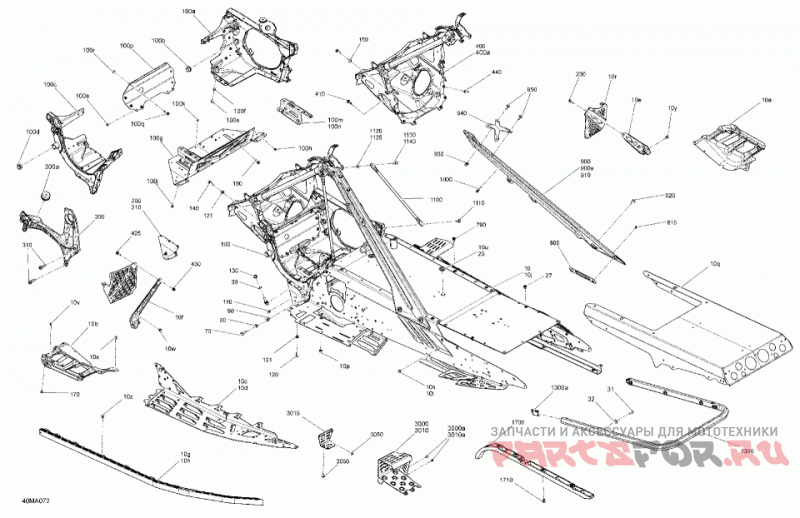

06- frame - system

Ski-Doo (Bombardier) 004 - MXZ 600RS - Europe

Ski-Doo (Bombardier)
#oem кодцена
10
415130433
Deep Black, Module Chassis Tunnel 137. Includes 10 to 10au.
100
518331753
Engine Chassis Module. Includes 100 to 100r.
1000
250300629
Stud M5 X 20.
100b
505072690
Leg Bushing.
100d
505072690
Leg Bushing.
100g
518332716
Bottom Plate.
100h
293150203
Rivet AVIBULB 3/16.
100j
293450268
Insert M5 X 0.8.
100k
293150203
Rivet AVIBULB 3/16.
100p
518330100
Front Member.
100q
250000945
Hex. Flange Screw M6 X 25.
100r
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
100s
293150203
Rivet AVIBULB 3/16.
10a
518330738
Deep Black, RH Footrest Reinforcement.
10b
518331523
Deep Black, LH Footrest Reinforcement.
10c
518329010
RH Footrest.
10d
518329011
LH Footrest.
10e
518331253
Stirrup Reinforcement.
10f
518331560
Deep Black, LH Chasssis Reinforcement.
10g
518329023
RH Roller.
10h
518329024
LH Roller.
10j
518331939
Assembly Radiator.
10p
250100199
Insert Half Hex Body M6 x 1.0.
10r
518328460
RH Footrest.
10s
293730047
Black, Dart 8 mm.
10t
293730060
Black Dart 10 mm.
10u
293730052
Black, Plug.
10v
293150203
Rivet AVIBULB 3/16.
10w
293150096
Hemlock Rivet, 6.5 mm.
10x
293150119
Hemlock Rivet, 6.5 mm.
10y
293150174
Hemlock Rivet, 6.4 mm.
10z
293150147
Hemlock Rivet.
110
293150147
Hemlock Rivet.
1100
518329974
Upper Colomn Support.
1110
207562034
Hex. Flanged Screw M6 X 20, Scotch Grip.
1120
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
1125
233261416
Elastic Flanged Nut M6 X 1.0.
1130
207662544
Hex. Flanged Screw M6 X 25.
1140
207662044
Hex. Flanged Screw M6 X 20.
120
250000536
Tork Screw M6 X 18.
121
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
130
233281414
Hex. Flanged Elastic Nut M8.
1300
518331570
Rear Bumper. Includes 1300 to 1300a.
1300a
520001612
Cap.
140
207662046
Hex. Flanged Screw M6 X 20.
150
233261416
Elastic Flanged Nut M6 X 1.0.
170
293450267
Insert M5 - 0.8.
1700
518329982
Front Protector.
1710
293150108
Pop Rivet 3/16”.
180
207661646
Hex. Flange Screw M6 X 16.
20
293730052
Black, Plug.
200
518329493
Left Junction Reinforcement.
210
518329494
Right Junction Reinforcement.
230
207562056
Flanged Hex Screw S.GRIP M6 X 20.
27
293450275
Insert.
30
234081410
Flat Washer 8 mm.
3000a
390909100
Avex Rivet.
3010a
390909100
Avex Rivet.
3015
518329838
Support.
3050
250000767
Torx Truss Screw M6 X 12.
31
250000779
Torx Screw M6 X 1.0 X 18, Scotch Grip.
310
250001060
Screw-Pan HD.Torx M8X30.
32
224061201
Flat Washer.
400
518330637
Chassis Suspension Module. Includes 400 to 400a.
400a
518330573
S Module.
410
250001051
Screw-Forming Hex.HD.FL. M6 X 16.
425
207562056
Flanged Hex Screw S.GRIP M6 X 20.
430
233261416
Elastic Flanged Nut M6 X 1.0.
440
207661636
Hex. Flanged Screw M6 X 16.
70
250000942
Hex Screw M8 X 30.
790
293450278
Insert.
80
234081410
Flat Washer 8 mm.
800
518329480
Member Fixation Plate.
815
293150203
Rivet AVIBULB 3/16.
90
233281414
Hex. Flanged Elastic Nut M8.
900
518330140
Black, LH Member. Includes 900 to 900a.
910
518331058
RH Rear Diagonal Cross Member.
920
250000887
Pan Head Torx Screw M8 X 12.
930
293450275
Insert.
940
518329499
Brace Rear Member.
950
207661644
Hex. Flanged Screw M6 X 16.
