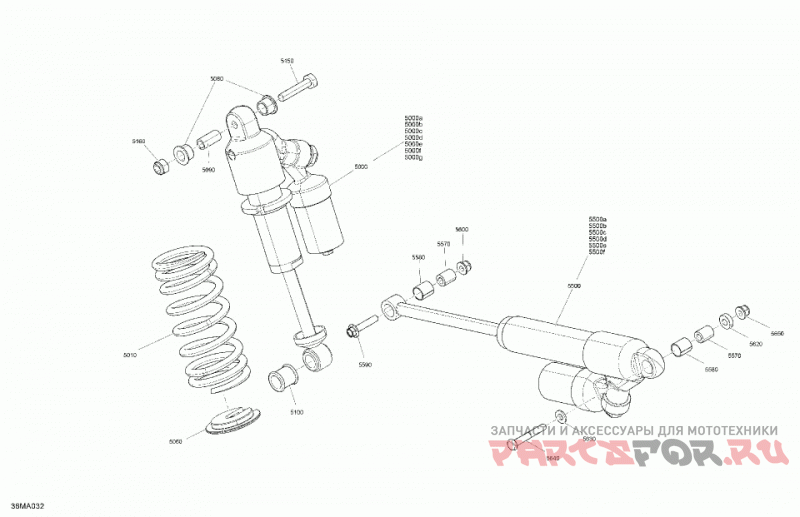

05- suspension - rear shocks

Ski-Doo (Bombardier) 004 - MXZ 600RS - Europe

Ski-Doo (Bombardier)
#oem кодцена
5000
503195820
Center Shock. Included 5000 to 5000g.
5000a
415093807
O-Ring.
5000b
415093806
Piston Ring.
5000c
505070398
Air Valve.
5000d
505070399
Screw.
5000e
505070400
O-Ring.
5000f
715900076
Circlip En C.
5000g
415093804
O-Ring.
5010
503195824
Spring.
5060
503196103
Stopper Spring.
5080
503189117
Bushing Urethane.
5090
503189282
Bushing.
5100
503189271
Bushing.
5150
207005044
Hex. Screw M10 X 1.5 X 50.
5160
233601466
Elastic Locking Nut M10.
5500
503195821
Rear Shock. Included 5500 to 5500f.
5500a
415093806
Piston Ring.
5500b
505070398
Air Valve.
5500c
505070399
Screw.
5500d
505070400
O-Ring.
5500e
715900076
Circlip En C.
5500f
415093804
O-Ring.
5570
503192606
Rear Shock Axle.
5580
505072663
Leg Cushion.
5590
207684044
Hex. Flanged Screw M8 X 40.
5600
233281466
Elastic Flang Nut M8.
5620
503190526
Spacer.
5630
503192494
Washer.
5640
207085556
Hex. Screw M8 X 55.
5650
233281466
Elastic Flang Nut M8.
