03- mecanic - brakes для снегоходов Ski-Doo (Bombardier) 004 - MXZ 600RS

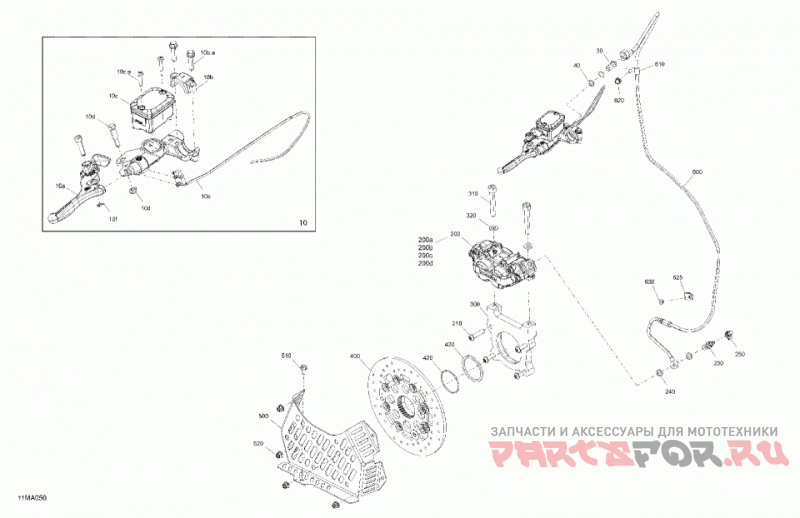

03- mecanic - brakes

Ski-Doo (Bombardier) 004 - MXZ 600RS - Europe

oem код

название

цена

507032614

Cylinder Master. Included 10 to 10f.

10a

507032476

Lever With Parking Lock.

10b

507032477

Clamp And Screw Kit. Included 10b to 10b.a.

10b.a

250000447

Hex Flanged Screw M6 X 25.

10c.a

415129356

Screw M4 X 20.

10e

507032601

Microswitch.

10f

414439000

Circlip.

200a

507032615

Brake Pads Kit.

200b

507032616

Pin & Spring Kit.

200c

507032617

Spring Plate.

200d

507032618

Spring Clips.

210

250000971

Screw-torx Button Head M8 X 35.

230

705601201

Banjo Bolt/ Bleeder.

240

705601628

Copper Washer.

250

705601190

Bleeder Bolt Cap.

507032551

Banjo Bolt.

300

507032647

Brake Caliper Support.

310

244006060

Socket Screw M10 X 60.

320

503192496

Washer.

705601628

Copper Washer.

420

293300221

O Ring.

430

507032612

Spacer.

500

507032674

Disc Brake Guard.

510

207661254

Hex. Flanged Screw M6 X 12.

520

233261466

Hex. Flanged Elastic Nut M6.

600

507032649

Brake Hose.

610

414108400

Open Clamp.

620

210261040

Hex. Flanged Screw M6 X 10.

625

293650257

Clamp.

630

293150231

Blind Rivet 3/16.
