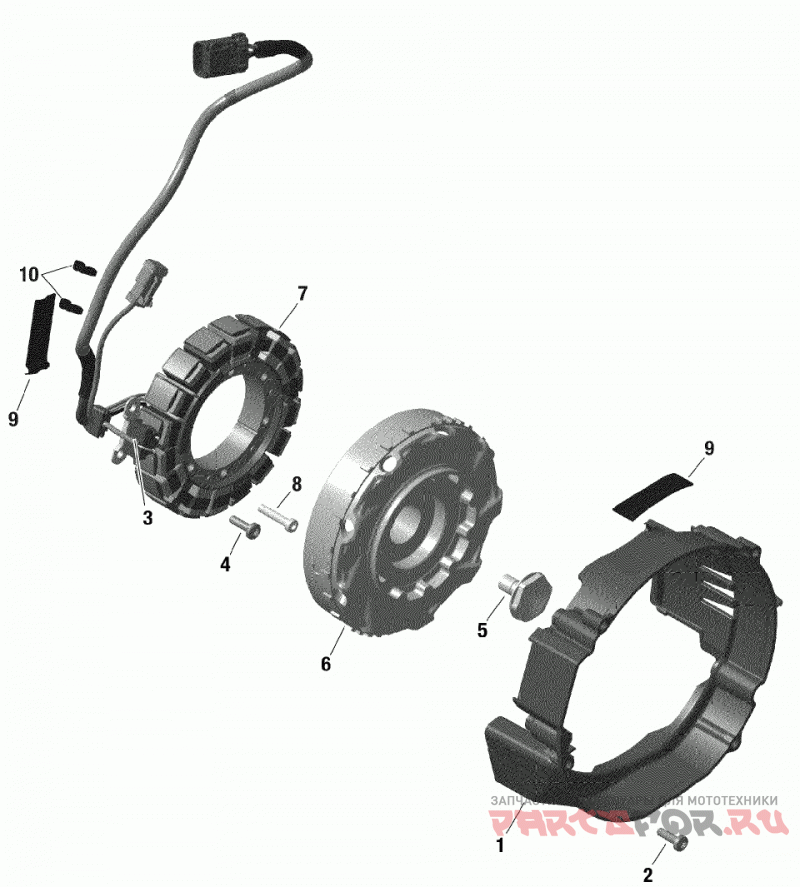

01- rotax - magneto
Ski-Doo (Bombardier) 004 - MXZ 600RS - Europe
| # | oem код | название | цена |
|---|---|---|---|
1 | 420911851 Деталь Ignition Housing. | Деталь Ignition Housing. | |
10 | 420651817 Деталь Locking Tie 175 X 4 MM. | Деталь Locking Tie 175 X 4 MM. | |
2 | 420441386 Деталь Flanged Torx Screw M6 X 20. | Деталь Flanged Torx Screw M6 X 20. | |
4 | 420441386 Деталь Flanged Torx Screw M6 X 20. | Деталь Flanged Torx Screw M6 X 20. | |
5 | 420840851 Деталь Collar Hex Screw M12 X 25. | Деталь Collar Hex Screw M12 X 25. | |
6 | 420864438 Деталь Magneto Flywheel. | Деталь Magneto Flywheel. | |
8 | 420540001 Деталь Allen Screw M6 X 30. | Деталь Allen Screw M6 X 30. | |
9 | 420201360 Деталь Adhesive Pad, 1.6 mm X 20 mm X 60 mm. | Деталь Adhesive Pad, 1.6 mm X 20 mm X 60 mm. |
