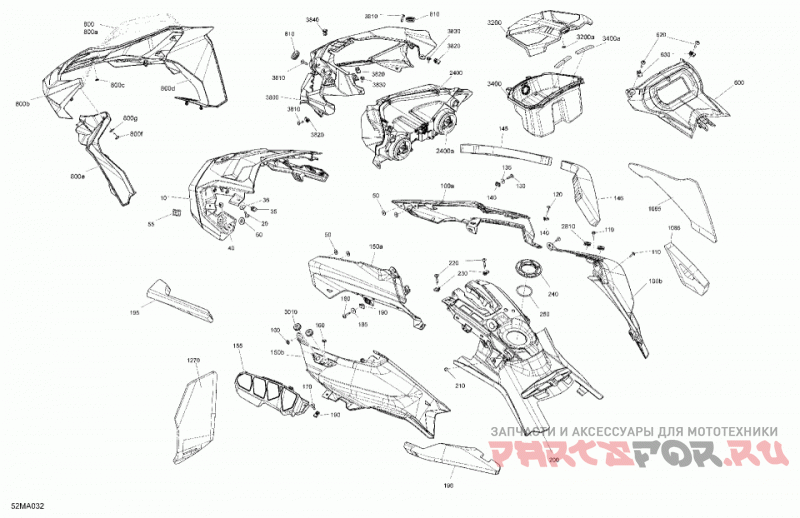

07- body - hood

Ski-Doo (Bombardier) 001 - SKANDIC SPORT 600 EFI - Europe

Ski-Doo (Bombardier)
#oem кодцена
10
517306288
Deep Black, Center Hood.
100a
517307125
Catalyst Gray, RH Front Hood.
100b
517307126
Catalyst Gray, RH Rear Hood.
1065
517306561
Foam.
1085
517307293
Foam.
110
250000725
Screw M4 X 16.
1150
517307700
Rubber Sheet. Not shown.
120
250000528
Torx Screw M5 X 20.
1270
517306499
Foam.
130
250000587
Torx Screw M5 X 26.
135
250200166
Washer.
140
250000958
Panel Nut M5 X 0.8.
145
517305763
RH Front Hood Foam.
146
517306001
RH Hood Foam.
150a
517307128
Catalyst Gray, LH Front Hood.
150b
517307129
Catalyst Gray, LH Rear Hood.
155
517306690
LH Hood Trim.
160
250000725
Screw M4 X 16.
170
250000528
Torx Screw M5 X 20.
180
250000587
Torx Screw M5 X 26.
185
250200166
Washer.
190
250000958
Panel Nut M5 X 0.8.
195
517305764
LH Front Hood Foam.
196
517306002
LH Hood Foam.
20
250000528
Torx Screw M5 X 20.
200
517307688
Deep Black, Rear Console.
210
233251434
Flanged Elastic Nut M5.
220
250000587
Torx Screw M5 X 26.
230
250000958
Panel Nut M5 X 0.8.
240
517306602
Console Nut.
2400
517305752
Headlamp. Includes 2400 to 2400a.
2400a
415130081
Bulb.
250
706002839
O-Ring.
2810
517307161
Grommet.
3010
517307161
Grommet.
3200a
732610072
Push Nut.
3400a
517305157
Seal Joint.
35
250000958
Panel Nut M5 X 0.8.
36
250200166
Washer.
3800
517306301
Headlamp Fairing.
3810
250000528
Torx Screw M5 X 20.
3820
250000958
Panel Nut M5 X 0.8.
3830
250000725
Screw M4 X 16.
3840
293150230
Tuflok Plastic Rivet.
40
293150104
Pop Rivet 3/16
50
517124300
Washer.
55
517305109
Rivet Plate.
60
508000853
Push Nut.
600
517307675
Gauge Support.
620
250000587
Torx Screw M5 X 26.
630
250000958
Panel Nut M5 X 0.8.
800
860201258
Medium Windshield Kit. Includes 800 to 800g.
800a
517306062
Windshield.
800b
517306183
Deep Black, Windshield Support.
800c
732610072
Push Nut.
800d
517306063
Deflector RH, Black 63% Light Transm.
800e
517306064
Deflector LH, Black 63% Light Transm.
800f
250000889
Screw M4 X 16.
800g
517306524
Rubber Washer 4 MM.
810
517303756
Grommet.
