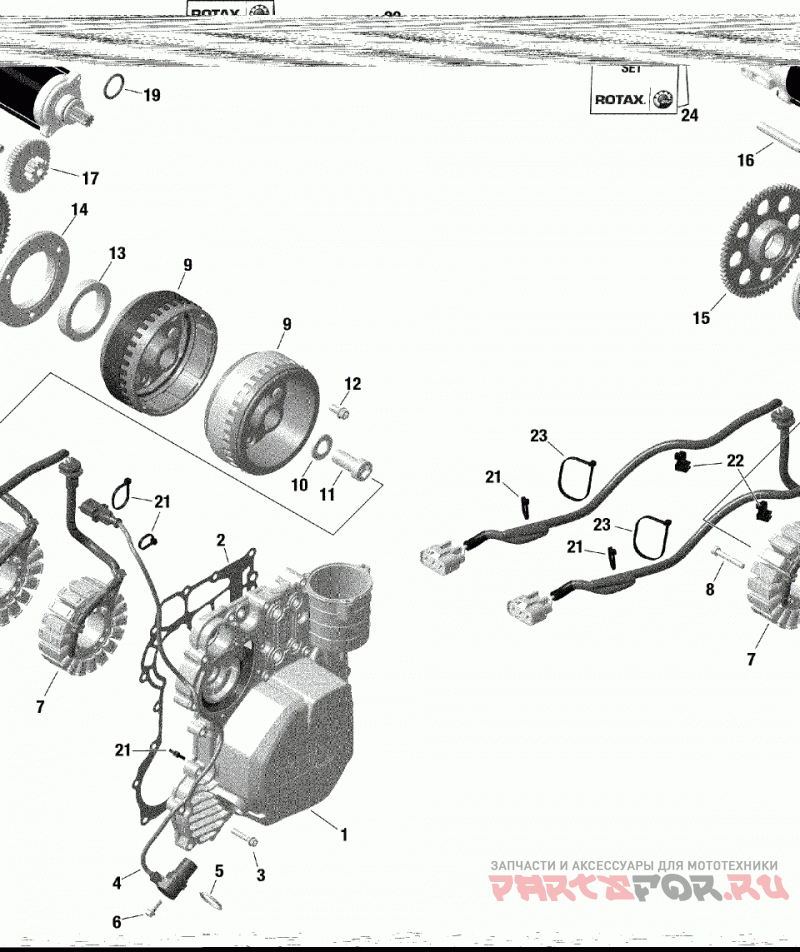

01- rotax - magneto and electric starter 420w

Ski-Doo (Bombardier) 001 - RENEGADE 600 ACE - SPORT - Europe

Ski-Doo (Bombardier)
#oem кодцена
1
420911055
Ignition Cover.
10
420627270
Shim.
11
420241549
Socket Head Screw M16 X 35.
12
420440854
Flanged Torx Screw M8 X 16.
13
420659111
Sprag Clutch.
14
420659263
Sparg Clutch Housing.
15
420434238
Free Wheel Gear, 64 Teeth.
16
420229475
Needle Pin.
17
420634743
Double Gear 11/49.
19
420250145
O-Ring.
2
420431640
Gasket.
20
420440647
Flanged Torx Screw M6 X 30.
21
420866714
Tie Rap.
22
420881149
Starter Repair Kit.
3
420440647
Flanged Torx Screw M6 X 30.
5
420431580
O-Ring.
6
420440162
Flanged Torx Screw M6 X 16.
7
420296908
Stator Plate 420W.
8
420241956
Allen Screw M6 X 40.
9
420685700
Magneto Flywheel 420W.
