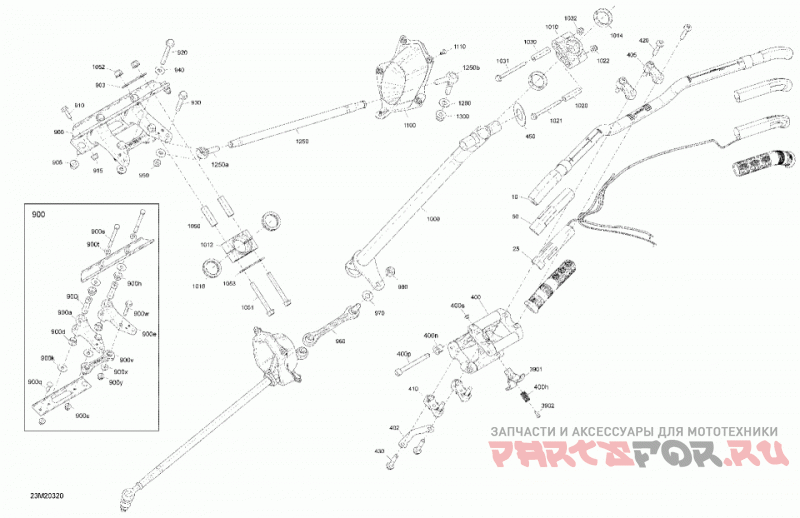

06- steering - system

Ski-Doo (Bombardier) 014 - RENEGADE 850 E-TEC - XRS rMotion X - North America

Ski-Doo (Bombardier)
#oem кодцена
10
506152825
Handle Bar.
1000
506153026
Main Tube.
1010
506152219
Upper Half Housing.
1012
506153048
Lower Half-Housing.
1014
506152292
Upper Vibration Ring.
1016
506152518
Lower Vibration Ring.
1020
506152297
Housing Bushing.
1021
250001114
Screw Hex FLange M6 x 75.
1022
233261416
Elastic Flanged Nut M6 X 1.0.
1030
506152297
Housing Bushing.
1031
250001114
Screw Hex FLange M6 x 75.
1032
233261416
Elastic Flanged Nut M6 X 1.0.
1050
506152937
Housing Bushing.
1051
207687044
Hex. Flanged Screw M8 X 70.
1052
233281416
Hex. Elastic Flanged Nut M8.
1053
506152938
Stopper Plate.
1100
506153109
Boot.
1110
293150008
Pop Rivet 3/16
1250a
506152344
LH Threaded Ball Joint.
1250b
506152684
RH Thread Ball Joint.
1280
506152582
Washer.
1300
233201464
Hex. Elast. Flanged Nut M10 x 1.5.
20
506152560
Grip 148mm.
25
506152856
Heated Film.
3901
506152821
Handle.
3902
205041060
Socket Head Screw M4X 10.
400
506153192
Handlebar Adjustable Riser Block. Included 400 to 400s.
400h
506152820
Spring.
400n
506152520
Cushion.
400p
205588554
Socket Head Screw M8 X 85.
400s
390402200
Pop Rivet 3/16
402
506153028
Steering Stopper.
405
506152894
Support.
410
506152894
Support.
420
250000904
Button Head Torx Screw M8 X 38.
430
250000852
Hexagonal Flange Screw M8 X 1.25 x 60.
450
506152992
Washer.
50
506153176
Isolant.
900a
506152788
LH Swivel Arm.
900d
503194671
Bushing.
900e
506152790
RH Swivel Arm.
900h
503194671
Bushing.
900j
506152792
Swivel Pivot.
900k
503191800
Washer.
900q
250300038
Clinch Stud.
900s
207088544
Hex. Screw M8 X 85.
900t
503192494
Washer.
900u
233281466
Elastic Flang Nut M8.
900v
506152755
Ball Joint.
900w
250001028
Hex. Flanged Screw M6 X 45.
900x
506151245
Washer.
900y
233281466
Elastic Flang Nut M8.
903
506153157
Steering Stopper.
905
233281416
Hex. Elastic Flanged Nut M8.
910
207662044
Hex. Flanged Screw M6 X 20.
915
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
920
207686544
Hex. Flanged Screw, M8 X 65.
930
207684544
Hex. Flanged Screw M8 X 45.
940
506151245
Washer.
950
232581414
Hex. Elastic Stop Nut M8.
960
506152753
Ball Joint.
970
506152582
Washer.
980
232500416
Elastic Stop Nut M10.
