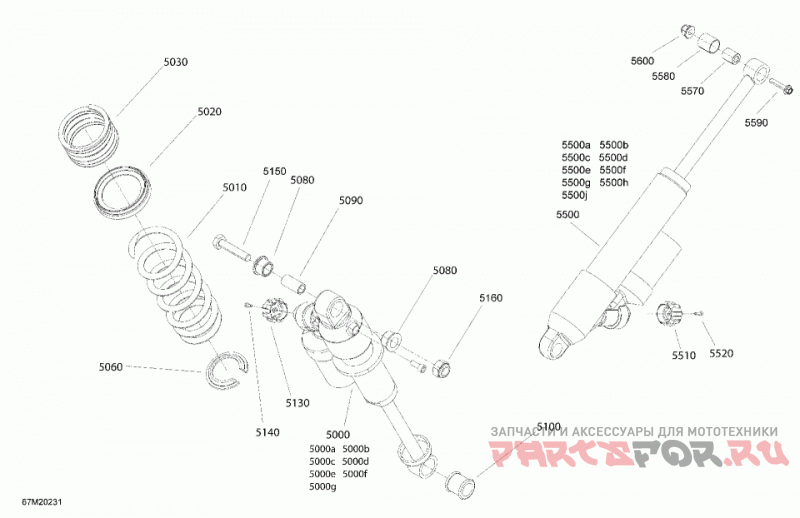

08- suspension, rear - shocks - xrs

Ski-Doo (Bombardier) 008 - RENEGADE 850 E-TEC - XRS - North America

Ski-Doo (Bombardier)
#oem кодцена
5000
503194071
Center Shock. Included 5000 to 5000g.
5000a
415093807
O-Ring.
5000b
415093806
Piston Ring.
5000c
505070398
Air Valve.
5000d
505070399
Screw.
5000e
505070400
O-Ring.
5000f
415093804
O-Ring.
5000g
415130165
Base Valve.
5010
503193065
Black, Spring (162mm) Long.
5020
503192743
Spring Spacer.
5030
503193479
Black, Spring (52mm) Short.
5060
503194270
Spring Stopper.
5080
503189117
Bushing Urethane.
5090
503189282
Bushing.
5100
503189271
Bushing.
5130
503193033
Shock Adjuster Knob.
5140
250000644
Allen Screw M3 X 0.5 X 10.
5150
207005044
Hex. Screw M10 X 1.5 X 50.
5160
233601466
Elastic Locking Nut M10.
5500
503194072
Rear Shock. Without Quick Adjust System. Included 5500 to 5500g.
5500
503193854
Rear Shock. With Quick Adjust System. Included 5500 to 5500j.
5500a
415093807
O-Ring.
5500b
415093806
Piston Ring.
5500c
505070398
Air Valve.
5500d
505070399
Screw.
5500e
505070400
O-Ring.
5500f
415093804
O-Ring.
5500g
415130165
Base Valve. Without Quick Adjust System.
5500g
415093810
Bolt. With Quick Adjust System.
5500h
415038700
O-Ring.
5500j
415130165
Base Valve.
5510
503193033
Shock Adjuster Knob.
5520
250000644
Allen Screw M3 X 0.5 X 10.
5570
503192606
Rear Shock Axle.
5580
505072663
Leg Cushion.
5590
207684044
Hex. Flanged Screw M8 X 40.
5600
233281466
Elastic Flang Nut M8.
