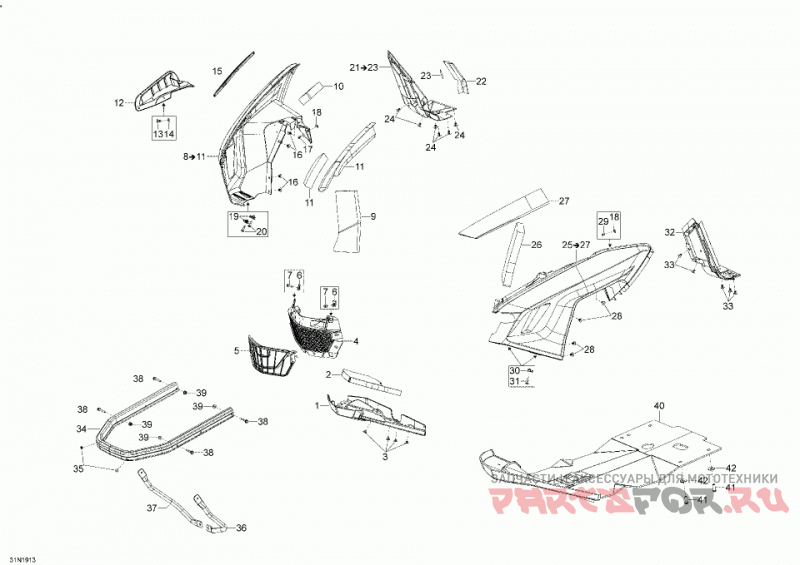

09- body - bottom pan

Ski-Doo (Bombardier) 007 - EXPEDITION SWT 900 ACE - North America

Ski-Doo (Bombardier)
#oem кодцена
1
502008006
Black, Front Bottom Pan.
11
502007009
Insulator. Except Package EXTREME.
11
517305977
Insulator. Package EXTREME.
12
517306982
RH Bottom Pan Air Vent. Package EXTREME.
13
293150104
Pop Rivet 3/16
14
250200025
Washer M5. Package EXTREME.
15
517305976
RH Bottom Pan Grill. Package EXTREME.
16
293150104
Pop Rivet 3/16
17
390402200
Pop Rivet 3/16
18
234052450
Flat Washer.
19
250000957
Extruded Panel Nut M6.
2
502007002
Insulator.
20
250000722
Torx Screw M6 X 20.
22
502007038
Aluminium Foil.
24
293150104
Pop Rivet 3/16
26
502007003
Insulator.
27
502007185
Insulator.
28
293150104
Pop Rivet 3/16
29
390402200
Pop Rivet 3/16
3
293150103
Pop Rivet 3/16
30
250000957
Extruded Panel Nut M6.
31
250000722
Torx Screw M6 X 20.
32
502008012
LH Rear Bottom Pan.
33
293150104
Pop Rivet 3/16
34
502007685
Black Anod. Bumper. Package EXTREME & SE.
34
502007684
Clear Anod. Bumper. Package SWT & LE.
35
293730047
Black Dart 8 mm. Package EXTREME.
35
293730041
Full Moon Dart 8 mm. Package SWT & LE.
36
502007014
LH Bumper Support.
37
502007015
RH Bumper Support.
38
207664044
Hex. Flanged Screw M6 X 40.
39
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
4
502007145
Grill.
5
502007393
Front Grill With Mesh. Package EXTREME.
50
732610072
Push Nut. Package EXTREME. Not Shown.
6
250000957
Extruded Panel Nut M6.
60
234082410
Flat Washer 8 mm. Package SE. Not Shown.
60
518328317
Oil Plate. Not Shown. Includes 860 to 860a.
60
250000757
Screw-Torx Button Head M8 X 25 S.Gr. Package SE. Not Shown.
60
250000767
Torx Truss Screw M6 X 12. Not Shown.
60a
605636003
Clinch Nut M6 Hexsert. Not Shown.
7
250000722
Torx Screw M6 X 20.
9
502007526
Insulator.
