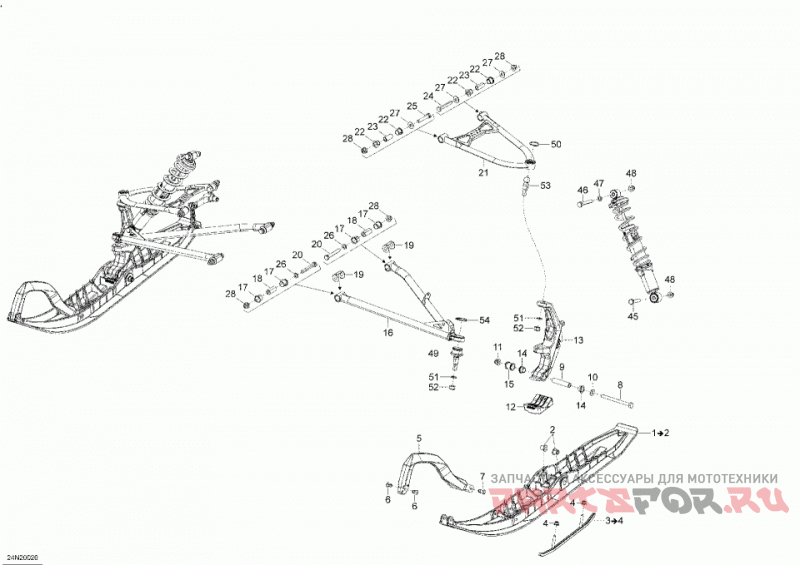

07- suspension, front - system

Ski-Doo (Bombardier) 007 - EXPEDITION SWT 900 ACE - North America

Ski-Doo (Bombardier)
#oem кодцена
1
505073227
Black, Ski.
10
503192496
Washer.
11
233201464
Hex. Elast. Flanged Nut M10 x 1.5.
12
505072594
Ski Stopper.
13
505073628
LH Ski Leg.
13
505073629
RH Ski Leg.
14
505072690
Leg Bushing.
15
505071999
Spacer.
16
505073583
Black Epoxy, LH Lower Arm.
16
505073584
Black Epoxy, RH Lower Arm.
17
505073330
Bushing.
18
505072209
Sleeve.
19
505072634
Wear Plate.
20
250001024
Screw Hex. M10 X 70.
21
505073588
Black Epoxy, LH Upper Arm.
21
505073589
Black Epoxy, RH Upper Arm.
22
505073329
Bushing.
23
505072143
Sleeve.
24
250001023
Screw Hex. M10 X 60.
25
250001022
Screw Hex. M10 X 50.
26
503189564
Washer.
27
505072392
Washer.
28
250100165
Hex. Flanged Elastic Nut M10.
3
860201044
Carbide Runner Kit (Square Runner).
4
233281414
Hex. Flanged Elastic Nut M8.
45
207005544
Hex. Screw M10 X 55.
46
207006544
Hex. Screw M10 X 1.5 X 65.
47
503189564
Washer.
48
233201414
Hex. Flanged Elastic Nut M10.
49
505073636
Ball Joint.
5
505072976
Black, Handle.
50
293370070
Circlip.
51
234021410
Flat Washer 12 mm.
52
250100089
Hex. Elastic Hex. Nut M12.
53
505072913
Upper Ball Joint.
54
293370035
Circlip.
6
505071812
Retainer 17mm long.
60
505072448
O-Ring.
7
505072133
Retainer 23mm Long.
8
250000703
Hex. Screw M10 X 130.
810
572091300
Cap.
9
506133300
Spacer.
