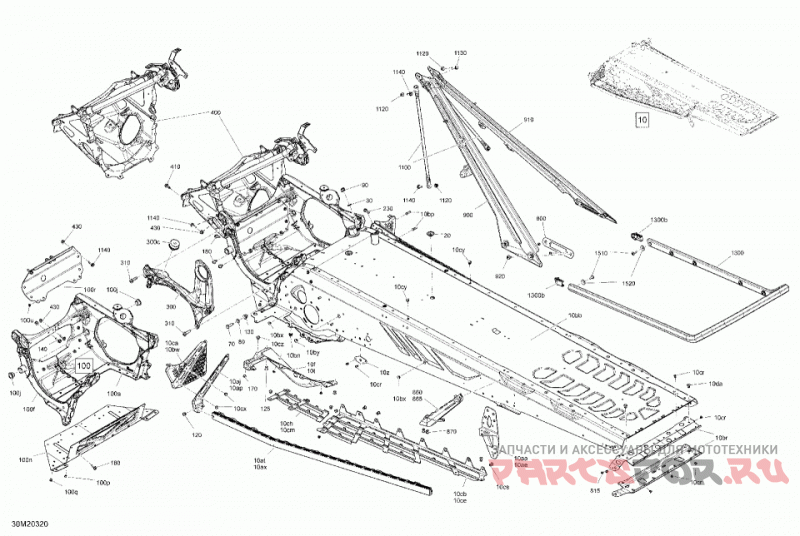

09- frame - system

Ski-Doo (Bombardier) 006 - SUMMIT 850 E-TEC Turbo - North America

Ski-Doo (Bombardier)
#oem кодцена
10
415130323
Деталь Sunburst Yellow Chassis Tunnel Module165. Includes 10 to 10da.
100j
505073317
Деталь Leg Cushion.
100n
518330074
Деталь Bottom Plate.
100p
293150203
Деталь Rivet AVIBULB 3/16.
100q
293450268
Деталь Insert M5 X 0.8.
100r
518330100
Деталь Front Member.
100u
293150203
Деталь Rivet AVIBULB 3/16.
10aa
518329053
Деталь LH Suspension Bracket.
10ae
518329054
Деталь RH Suspension Bracket.
10aj
518331253
Деталь Stirrup Reinforcement.
10ap
518331560
Деталь Deep Black, LH Chasssis Reinforcement.
10at
518328737
Деталь RH Roller.
10ax
518328738
Деталь LH Roller.
10bb
415130288
Деталь Radiator Tunnel 154
10bn
250100199
Деталь Insert Half Hex Body M6 x 1.0.
10bp
250300027
Деталь Clinch Stud M6 X 20.
10bu
293150203
Деталь Rivet AVIBULB 3/16.
10bw
518328460
Деталь RH Footrest.
10bx
293730047
Деталь Black Dart 8 mm.
10by
293730060
Деталь Black Dart 10 mm.
10ca
518331556
Деталь LH Foot Protector.
10cb
518330960
Деталь LH Rear Perforated Footstep.
10ce
518330962
Деталь RH Rear Perforated Footstep.
10ch
518330385
Деталь LH Front Driver Footrest.
10cm
518330388
Деталь RH Front Driver Footrest.
10cr
293150203
Деталь Rivet AVIBULB 3/16.
10cs
293150183
Деталь Rivet.
10cx
293150096
Деталь Hemlock Rivet, 6.5 mm.
10cy
293150119
Деталь Hemlock Rivet, 6.5 mm.
10cz
293150174
Деталь Hemlock Rivet, 6.4 mm.
10da
293150147
Деталь Hemlock Rivet.
10f
518330320
Деталь RH Footrest Reinforcement.
10t
518330321
Деталь LH Footrest Reinforcement.
10z
518326647
Деталь Reinforcement Plate.
1100
518329974
Деталь Upper Colomn Support.
1120
233261416
Деталь Elastic Flanged Nut M6 X 1.0.
1130
207662556
Деталь Hex. Flange Screw M6 X 25.
1140
207662046
Деталь Hex. Flanged Screw M6 X 20.
120
293150174
Деталь Hemlock Rivet, 6.4 mm.
125
293150120
Деталь Hemlock Rivet 6.5 mm.
130
233281414
Деталь Hex. Flanged Elastic Nut M8.
1300
518331206
Деталь Rear Short Bumper 165. Includes 1300 to 1300b.
1300b
520001612
Деталь Cap.
140
207662046
Деталь Hex. Flanged Screw M6 X 20.
1510
250000779
Деталь Torx Screw M6 X 1.0 X 18, Scotch Grip.
1520
224061201
Деталь Flat Washer.
170
293450267
Деталь Insert M5 - 0.8.
180
207661646
Деталь Hex. Flange Screw M6 X 16.
20
293730052
Деталь Black, Plug.
230
207562034
Деталь Hex. Flanged Screw M6 X 20, Scotch Grip.
30
506151252
Деталь Washer.
300c
512060295
Деталь Rubber Mount.
310
250001060
Деталь Screw-Pan HD.Torx M8X30.
400
518330167
Деталь S Module.
410
250001051
Деталь Screw-Forming Hex.HD.FL. M6 X 16.
430
233261414
Деталь Hex. Flanged Elastic Nut M6 x 1.0.
70
250000942
Деталь Hex Screw M8 X 30.
80
234081410
Деталь Flat Washer 8 mm.
800
518329480
Деталь Member Fixation Plate.
815
293150203
Деталь Rivet AVIBULB 3/16.
860
518331396
Деталь Labrador Blue, LH Rear Footrest Reinforc.
860
518331394
Деталь SunburstYellow, LH Rear Footrest Reinfor.
865
518331395
Деталь Blue, RH Rear Footrest Reinforcement.
865
518331393
Деталь Yellow, RH Rear Footrest Reinforcement.
870
293150183
Деталь Rivet.
90
233281414
Деталь Hex. Flanged Elastic Nut M8.
900
518329079
Деталь Yellow, LH Member.
910
518331054
Деталь Sunburst Yellow, RH Rear Diag Cross Memb.
920
250000887
Деталь Pan Head Torx Screw M8 X 12.
