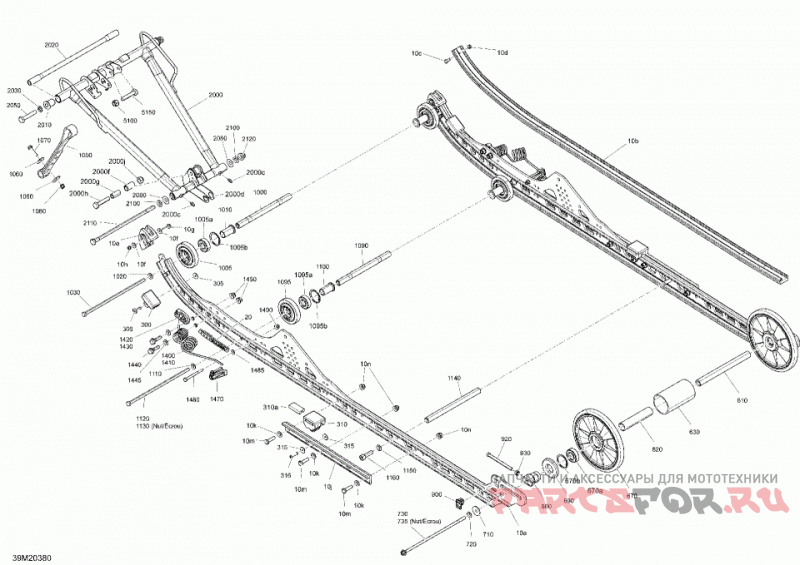

08- suspension, rear - lower section

Ski-Doo (Bombardier) 005 - SUMMIT 850 E-TEC - EXPERT - North America

Ski-Doo (Bombardier)
#oem кодцена
1000
503194939
Axle. Except SKU - TGLL.
1005a
503194917
Ball Bearing.
1005b
415129371
Retaining Ring.
1010
503191259
Center Bushing. SKU - TGLL.
1020
503192494
Washer. Except SKU - TGLL.
1030
503192440
Bolt M8 X 248mm.
1050
503194679
Stopper Strap.
1060
503193995
Washer.
1070
207663056
Hex Flanged Screw M6 X 1.0 X 30.
1080
233261466
Hex. Flanged Elastic Nut M6.
1090
503195522
Pivot Axle.
1095a
503194917
Ball Bearing.
1095b
415129371
Retaining Ring.
10a
503195549
Bright White, Suspension Rail 154. Frame - 154 inch Bright White.
10a
503195553
Orange Crush, Suspension rail 154. Frame - 154 inch Orange Crush.
10a
503195556
Bright White, Suspension Rail 165. Frame - 165 inch Bright White.
10a
503195560
Orange Crush, Suspension Rail 165. Frame - 165 inch Orange Crush.
10b
503194251
Slider 154. Frame - 154 inch.
10b
503194254
Slider 165. Frame - 165 inch.
10c
208562531
Phillips Screw M6 X 25.
10d
232561434
Elastic Stop Nut M6.
10e
503194249
Protector.
10f
250200140
Washer.
10g
207652544
Hex. Flanged Screw M5 X 25.
10h
233281466
Elastic Flang Nut M8.
10j
503193853
Black Runner Reinforcement. SKU - TGLL.
10k
503192494
Washer.
10m
207183054
Hex. Cap Screw M8 X 30.
10n
233281466
Elastic Flang Nut M8.
1100
503191259
Center Bushing. SKU - TGLL.
1110
503192494
Washer.
1120
503192440
Bolt M8 X 248mm.
1130
233281466
Elastic Flang Nut M8.
1140
503191260
Axle Strap.
1150
503192496
Washer.
1160
205503554
Socket Head Screw M10 X 35.
1400
503194900
LH Spring. Except SKU - TGLL.
1410
503194901
RH Spring. Except SKU - TGLL.
1420
503194294
LH Support. Except SKU - TGLL.
1430
503194295
RH Support. Except SKU - TGLL.
1440
207683054
Hex. Flanged Screw M8 X 30. Except SKU - TGLL.
1445
503192494
Washer. Except SKU - TGLL.
1450
233281466
Elastic Flang Nut M8. Except SKU - TGLL.
1470
503195087
Hook Assy. Except SKU - TGLL.
1480
207167054
Hex. Cap Screw M6 X 70. Except SKU - TGLL.
1485
250200039
Flat Washer. Except SKU - TGLL.
1490
233261466
Hex. Flanged Elastic Nut M6. Except SKU - TGLL.
2000a
232061404
Hexagonal Nut M6.
2000b
503191556
Extended Bushing.
2000c
408200700
Grease Fitting.
2000d
503193464
Rocker.
2000f
503193037
Bushing.
2000g
503189282
Bushing.
2000h
207005044
Hex. Screw M10 X 1.5 X 50.
2000j
233601416
Elastic Locking Nut M10 X 1.5.
2010
503194970
Bushing.
2020
503193441
Upper Shaft.
2030
503192496
Washer.
2050
250000605
Hex. ScrewS.GRIP M10 X 55.
2080
250200032
Washer.
2100
250200143
Flat Washer.
2110
503193227
Bolt M10 X 251MM.
2120
233201466
Flanged Elastic Nut M10.
300
503190576
Rubber Stopper.
305
503191273
Washer.
306
293150224
Rivet Pop 3/16.
310
503193512
Rubber Stopper. SKU - TGLL.
310a
572084800
Reinforcement Stopper.
315
503191273
Washer. Except SKU - TGLL.
316
293150224
Rivet Pop 3/16. Except SKU - TGLL.
316
293150013
Pop Rivet 3/16
5150
207005044
Hex. Screw M10 X 1.5 X 50.
5160
233601466
Elastic Locking Nut M10.
610
503194261
Rear Axle. SKU - TGLL.
620
503194280
Spacer. SKU - TGLL.
620
503191263
Rear Spacer. Except SKU - TGLL.
630
503194286
Bushing. SKU - TGLL.
660
503190428
Rear Wheel Spacer. Except SKU - TGLL.
660
503194747
Tip. SKU - TGLL.
670a
503190396
Ball Bearing.
670b
415129371
Retaining Ring.
690
503190434
Labyrinth Seal. Except SKU - TGLL.
710
503191910
Washer. Except SKU - TGLL.
710
503194264
Washer. SKU - TGLL.
720
234201474
Conical Spring Washer 10 mm. Except SKU - TGLL.
720
503192494
Washer. SKU - TGLL.
730
503194265
Bolt. SKU - TGLL.
730
250000817
Hex Screw With Nilon Patch, M10 X 35. Except SKU - TGLL.
735
233201466
Flanged Elastic Nut M10.
900
503194266
Tensioner. Except SKU - TGLL.
900
503193808
Tensioner. SKU - TGLL.
920
230100054
Hex Screw M10 x 100. SKU - TGLL.
920
503194267
Hex. Cap Screw M8 X 95. Except SKU - TGLL.
930
233601466
Elastic Locking Nut M10. SKU - TGLL.
930
232581414
Hex. Elastic Stop Nut M8. Except SKU - TGLL.
