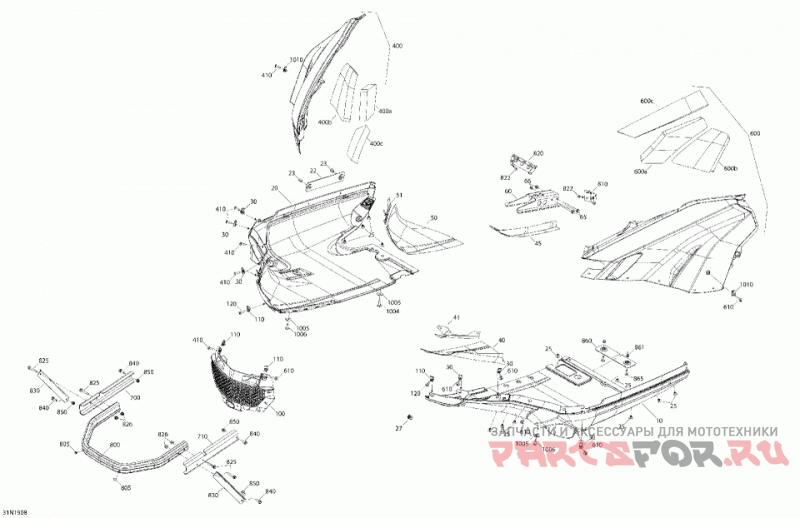

09- body - bottom pan - swt

Ski-Doo (Bombardier) 005 - SKANDIC SWT 600HO E-TEC - North America

Ski-Doo (Bombardier)
#oem кодцена
10
502007836
LH Lower Bottom Pan.
100
502007140
Front Grill.
1004
250000752
Torx Screw M8 X 1.25 X 25, Scotch Grip.
1005
234082410
Flat Washer 8 mm.
1006
250000722
Torx Screw M6 X 20.
1010
250000957
Extruded Panel Nut M6.
110
250000957
Extruded Panel Nut M6.
120
250000722
Torx Screw M6 X 20.
20
502007837
RH Lower Bottom Pan.
22
502007255
Heat Isolation Plate.
23
293150211
Rivet.
25
293150104
Pop Rivet 3/16
27
517302785
Edge Clip.
30
250000957
Extruded Panel Nut M6.
40
508000918
Heat Shield.
400
502008015
Deep Black, Bottom Pan RH.
400a
502007133
Insulator.
400b
502007132
Insulator.
400c
502007009
Insulator.
41
508000919
Heat Shield.
410
250000722
Torx Screw M6 X 20.
45
508000920
Heat Shield.
50
508000921
Heat Shield.
51
508000922
Heat Shield.
60
502007688
Support.
600
502008017
Deep Black, LH Bottom Pan.
600a
502007088
Insulator.
600b
502007131
Insulator.
600c
502007185
Insulator.
610
250000722
Torx Screw M6 X 20.
65
207667056
Hex. Flange Screw M6 X 70.
66
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
700
502007379
RH Bumper Support.
710
502007380
LH Bumper Support.
800
502007381
Bumper.
805
293730041
Full Moon Dart 8 mm.
810
502007535
LH Bottom Pan Fastener.
820
502007536
RH Bottom Pan Fastener.
822
605636003
Clinch Nut M6 Hexsert.
825
207664044
Hex. Flanged Screw M6 X 40.
826
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
830
502007382
Bumper Support SWT.
840
207662044
Hex. Flanged Screw M6 X 20.
850
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
860
518328879
Oil Plate.
861
605636003
Clinch Nut M6 Hexsert.
865
250000722
Torx Screw M6 X 20.
