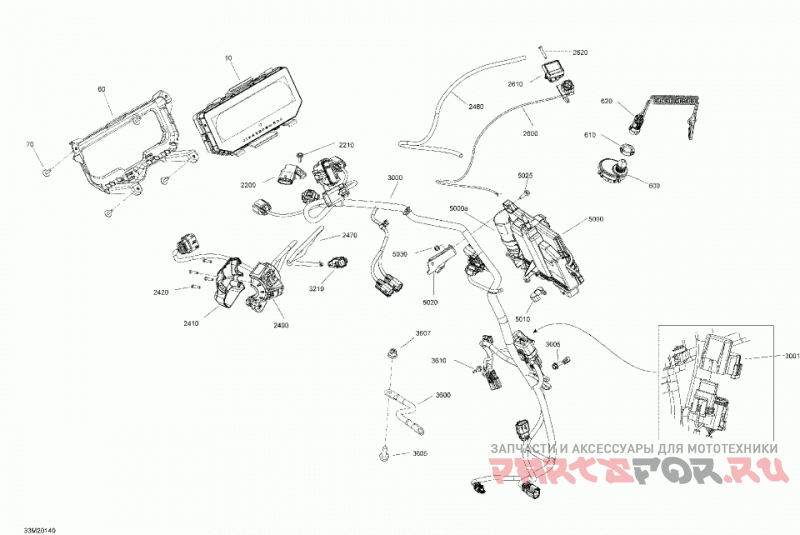

10- electric - system

Ski-Doo (Bombardier) 005 - MXZ 600R E-TEC - XRS Iron Dog - North America

Ski-Doo (Bombardier)
#oem кодцена
10
515178227
Multifunction Gauge Full Size Color.
2200
707000995
Pressure And Temperature Sensor.
2210
250000725
Screw M4 X 16.
2400
515178196
LH Housing.
2410
515177147
Housing Plate.
2420
250000671
Torx Screw.
2470
415130141
Sleeve.
2480
415130141
Sleeve.
2600
515177931
Emergency Stop Switch.
2610
515177310
Emergency Stop Switch Support.
2620
250000263
Torx Screw #8-18.
3000
515178648
Chassis Wiring Harness.
3001
515178435
Diagnostic Cap.
3005
250001062
Hex. Flanged Screw M6 X 16.
3210
515178177
4 Circuits Female Housing.
3600
515178248
Ground Wire.
3605
207661644
Hex. Flanged Screw M6 X 16.
3607
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
3610
250000911
Hex. Flanged Screw M5 X 16.
5000
512061191
Ignition Module.
5000a
515177272
Capacitor.
5010
515178430
Rubber Stopper.
5020
515178159
Module Support.
5025
207651646
Hex. Flanged Screw M5 X 16.
5030
233251434
Flanged Elastic Nut M5.
60
515178278
Support Gauge.
600
515178225
DESS Switch, RFID.
610
278002963
Safety Nut (DESS Switch).
70
250000725
Screw M4 X 16.
