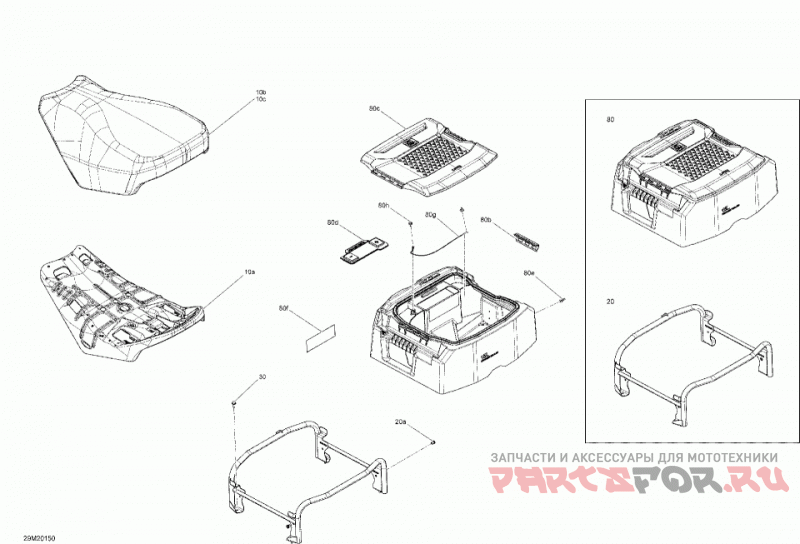

09- seat - main section - xtreme
Ski-Doo (Bombardier) 005 - EXPEDITION XTREME 850 E-TEC, Europe
| # | oem код | название | цена |
|---|---|---|---|
10a | 510006369 Driver Seat Base. | Driver Seat Base. | |
10b | 510006413 Driver Seat Foam. | Driver Seat Foam. | |
10c | 510006843 Seat Cover. | Seat Cover. | |
20a | 293450268 Insert M5 X 0.8. | Insert M5 X 0.8. | |
30 | 207561644 Hex.Fla. Screw M6 X 16, Scotch Grip. | Hex.Fla. Screw M6 X 16, Scotch Grip. | |
80b | 269502402 Latch. | Latch. | |
80c | 511001274 Box Cover. | Box Cover. | |
80d | 510006789 Access Cover. | Access Cover. | |
80e | 250000724 Torx Screw M5 X 20. | Torx Screw M5 X 20. | |
80f | 516009465 Warning Label. | Warning Label. | |
80g | 293750092 Retaining Cable. | Retaining Cable. | |
80h | 250000805 Plastite Screw M4 X 10. | Plastite Screw M4 X 10. |
