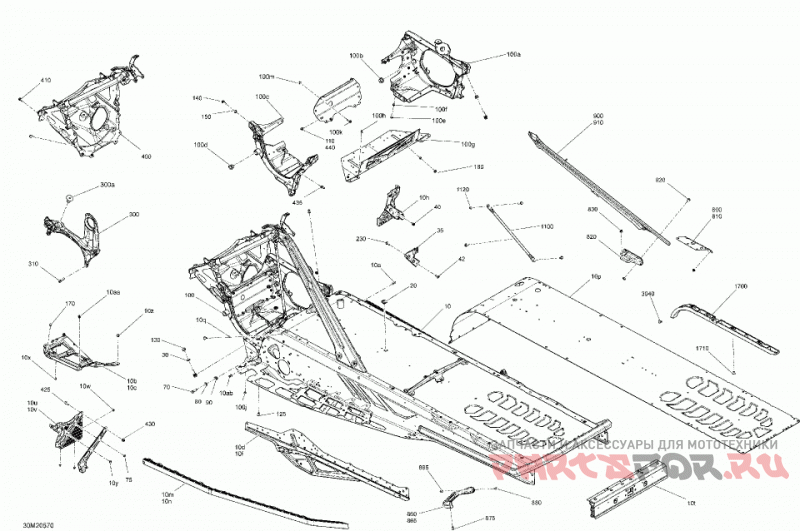

09- frame - system - xtreme

Ski-Doo (Bombardier) 005 - EXPEDITION XTREME 850 E-TEC, Europe

09- frame - system - xtreme

#

oem код

название

цена

100b

Leg Cushion.

Leg Cushion.

100d

Leg Cushion.

Leg Cushion.

100g

Bottom Plate.

Bottom Plate.

100h

Avex Rivet.

Avex Rivet.

100j

Insert M5 X 0.8.

Insert M5 X 0.8.

100k

Hex. Flanged Screw M6 X 20.

Hex. Flanged Screw M6 X 20.

100m

Hex. Flanged Elastic Nut M6 x 1.0.

Hex. Flanged Elastic Nut M6 x 1.0.

10a

Clinch Stud M6 X 20. Includes 10a to 10g.

Clinch Stud M6 X 20. Includes 10a to 10g.

10aa

Hemlock Rivet, 6.4 mm.

Hemlock Rivet, 6.4 mm.

10ab

Hemlock Rivet.

Hemlock Rivet.

10b

RH Footrest Reinforcement.

RH Footrest Reinforcement.

10c

Deep Black, LH Footrest Reinforcement.

Deep Black, LH Footrest Reinforcement.

10d

RH Suspension Support.

RH Suspension Support.

10f

LH Suspension Support.

LH Suspension Support.

10h

RH Footrest Reinforcement. Includes 10h to 10j.

RH Footrest Reinforcement. Includes 10h to 10j.

10m

RH Roller.

RH Roller.

10n

LH Roller.

LH Roller.

10p

Radiator.

Radiator.

10q

Clinch Nut M6 Hexsert.

Clinch Nut M6 Hexsert.

10t

Rear Cap.

Rear Cap.

10u

RH Footrest.

RH Footrest.

10v

LH Footrest.

LH Footrest.

10w

Avex Rivet.

Avex Rivet.

10x

Avex Rivet.

Avex Rivet.

10y

Hemlock Rivet, 6.5 mm.

Hemlock Rivet, 6.5 mm.

10z

Hemlock Rivet, 6.5 mm.

Hemlock Rivet, 6.5 mm.

110

Hemlock Rivet.

Hemlock Rivet.

1100

Upper Colomn Support.

Upper Colomn Support.

1120

Hex. Flanged Elastic Nut M6 x 1.0.

Hex. Flanged Elastic Nut M6 x 1.0.

125

Hemlock Rivet 6.5 mm.

Hemlock Rivet 6.5 mm.

130

Hex. Flanged Elastic Nut M8.

Hex. Flanged Elastic Nut M8.

140

Hex. Flanged Screw M6 X 20.

Hex. Flanged Screw M6 X 20.

150

Hex. Flanged Elastic Nut M6 x 1.0.

Hex. Flanged Elastic Nut M6 x 1.0.

170

Insert M5 - 0.8.

Insert M5 - 0.8.

1700

Front Protector.

Front Protector.

1710

Pop Rivet 3/16”.

Pop Rivet 3/16”.

180

Hex. Flange Screw M6 X 16.

Hex. Flange Screw M6 X 16.

20

Black, Plug.

Black, Plug.

230

Hex. Flanged Screw M6 X 20, Scotch Grip.

Hex. Flanged Screw M6 X 20, Scotch Grip.

30

Conical Spring Washer M8.

Conical Spring Washer M8.

300a

Rubber Mount.

Rubber Mount.

3040

Dart.

Dart.

310

Screw-Pan HD.Torx M8X30.

Screw-Pan HD.Torx M8X30.

35

RH Footrest Reinforcement.

RH Footrest Reinforcement.

40

Insert.

Insert.

400

S Module.

S Module.

410

Screw-Forming Hex.HD.FL. M6 X 16.

Screw-Forming Hex.HD.FL. M6 X 16.

42

Torx Head Screw M6 X 16.

Torx Head Screw M6 X 16.

425

Hex. Flanged Screw M6 X 20.

Hex. Flanged Screw M6 X 20.

430

Hex. Flanged Elastic Nut M6 x 1.0.

Hex. Flanged Elastic Nut M6 x 1.0.

435

Hex. Flanged Screw M6 X 16.

Hex. Flanged Screw M6 X 16.

440

Hemlock Rivet.

Hemlock Rivet.

70

Hex Screw M8 X 30.

Hex Screw M8 X 30.

75

Hemlock Rivet, 6.5 mm.

Hemlock Rivet, 6.5 mm.

80

Flat Washer 8 mm.

Flat Washer 8 mm.

800

Reinforcement.

Reinforcement.

810

Reinforcement.

Reinforcement.

820

Cross Member Support.

Cross Member Support.

830

Hemlock Rivet, 6.5 mm.

Hemlock Rivet, 6.5 mm.

860

Deep Black LH Rear Footrest Reinforcemen.

Deep Black LH Rear Footrest Reinforcemen.

865

Deep Black RH Rear Footrest Reinforcemen.

Deep Black RH Rear Footrest Reinforcemen.

875

Rivet.

Rivet.

90

Hex. Flanged Elastic Nut M8.

Hex. Flanged Elastic Nut M8.

900

Deep Black, LH Diagonal Cross Member Ass.

Deep Black, LH Diagonal Cross Member Ass.

910

Deep Black, RH Diagonal Cross Member Ass.

Deep Black, RH Diagonal Cross Member Ass.

920

Pan Head Torx Screw M8 X 12.

Pan Head Torx Screw M8 X 12.
