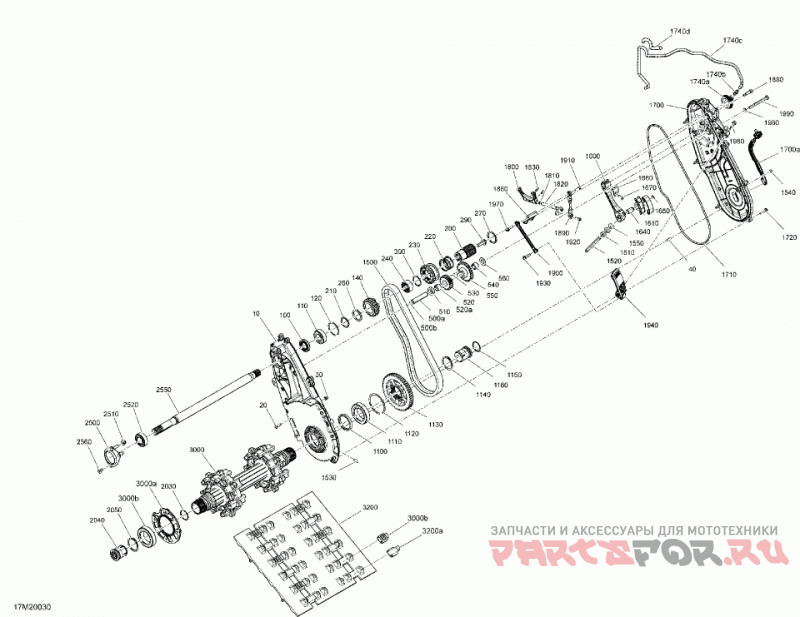

05- drive - system

Ski-Doo (Bombardier) 003 - TUNDRA 600 ACE - North America

Ski-Doo (Bombardier)
#oem кодцена
10
504153184
Chaincase.
100
293200168
Oil Seal.
10a
518325816
Plate. Not Shown.
10b
233261434
Flanged Elastic Nut M6. Not Shown.
110
293350115
Ball Bearing.
1100
293200159
Oil Seal.
1110
293350059
Ball Bearing.
1120
504152582
Circlip.
1130
504152971
Sprocket, 51 Teeth.
1140
504152572
Circlip.
1150
293300122
O-Ring.
1160
504152619
Magnetic Cap.
120
504152576
Circlip.
140
504152927
Sprocket, 21 Teeth.
1500
504152630
Drive Chain, 106 Links.
1510
232006414
Hex. Nut M10 X 1.5.
1520
504152602
Adjustment Screw.
1530
504152636
Magnetic Plug 1/8 - 27 NPTF.
1540
250500012
Allen Drive Plug 1/8-27 PTF.
1550
250200100
Bonded Washer.
1600
504153431
Chaine Tensionner.
1610
504152739
Slider Chain.
1640
504152841
Tensioner Axle.
1650
504152282
Circlip.
1660
504153122
Chain Slider.
1670
205862044
Socket Head Screw M6 X 20, Scotch Grip.
1700a
504152896
Rotation Sensor.
1710
293300130
Tight Seal.
1720
250001013
Flanged Hex. Screw M6 X 30.
1740a
504152930
Cap.
1740b
293710035
Straight Fitting.
1740c
415080200
Hose, Polyurethane, iD 5.7mm (10M Roll).
1740d
503195447
Protector Tube.
1810
414484400
O-Ring.
1820
504152956
Welded Axel Fork.
1830
250400045
Spring Pin M5 X 16.
1860
504153427
Lever.
1880
250000340
Socket Head Screw M8 X 25, Scotch Grip.
1890
504152951
Ball Joint.
1900
504152710
Double Ball Joint.
1910
205562044
Socket Head Screw M6 X 20, Scotch Grip.
1920
205562044
Socket Head Screw M6 X 20, Scotch Grip.
1930
207562544
Hex. Flanged Screw M6 X 25.
1940
504153082
Grip.
1960
250000340
Socket Head Screw M8 X 25, Scotch Grip.
1970
207562544
Hex. Flanged Screw M6 X 25.
1980
504082900
Washer.
1990
207089044
Hex. Screw M8 X 90.
200
504152979
Coupling.
2030
293300122
O-Ring.
2040
504152619
Magnetic Cap.
2050
504152572
Circlip.
210
293370054
Circlip.
220
504153179
Spring Release.
230
504152960
Slinding Gear, 27 Teeth.
240
293350063
Needle Bearing.
2500
504153187
Bearing Housing.
2510
233281414
Hex. Flanged Elastic Nut M8.
2520
293350074
Ball Bearing.
2550
504153000
Countershaft.
2560
235381646
Torx Screw M8 X 16, Scotch Grip.
260
504152689
Washer.
270
293370055
Circlip.
290
207503046
Hex. Flanged Screw M10 X 30, Scotch Grip.
300
504152862
Washer.
3000a
504153426
Retaining Ring.
3000b
293350059
Ball Bearing.
3200a
415129528
Track Guide. SPORT.
3200a
415129222
Track Guide. LT.
3200b
504152651
Cleat. LT.
40
250400048
Dowel Pin.
500a
504083100
Reverse Shaft.
500b
250400010
Rolled Pin M3 X 10.
510
504078700
Ring.
520a
293350064
Needle Bearing.
530
570048600
Alignement Rod.
540
293350064
Needle Bearing.
550
504152724
Sprocket, 29 Teeth.
560
504077300
Spacer.
