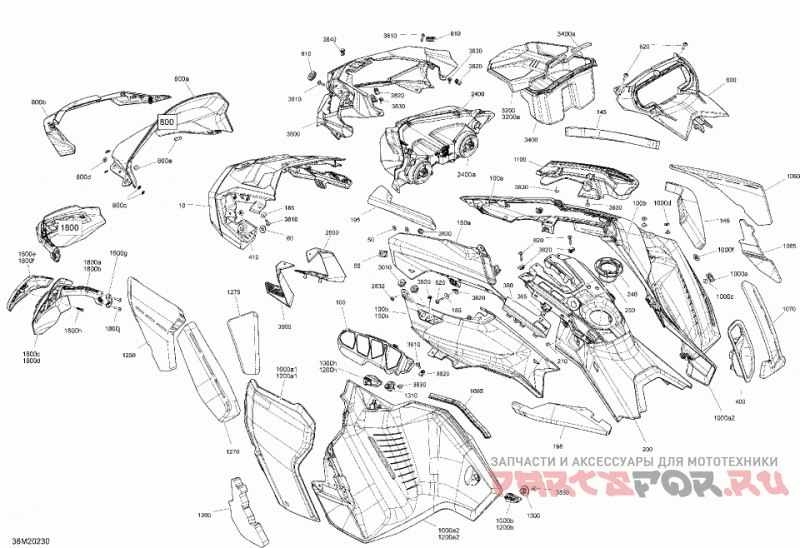

09- body - hood section - adrenaline - manta green

Ski-Doo (Bombardier) 003 - RENEGADE 900 ACE - Europe

Ski-Doo (Bombardier)
#oem кодцена
10
517306288
Deep Black, Center Hood.
1000a1
517307160
Manta Green, RH Front Panel.
1000a2
517306904
RH Rear Panel.
1000b
517305773
RH Rear Latch.
1000c
293150104
Pop Rivet 3/16
1000d
517124300
Washer.
1000e
517305109
Rivet Plate.
1000f
508000853
Push Nut.
1000h
517305979
RH Front Latch.
100a
517307150
Manta Green, RH Front Hood.
100b
517307151
Manta Green, RH Rear Hood.
1060
517306461
Foam.
1065
517306495
Foam.
1070
517306845
Foam.
1095
293250047
Neoprene Seal ( 3Meter pack ).
1100
517307049
Grill.
1200a1
517307162
Manta Green, LH Front Panel.
1200a2
517306296
LH Rear Panel.
1200b
517305774
LH Rear Latch.
1200h
517305980
LH Front Latch.
1250
517306463
Foam.
1260
517306464
Foam.
1270
517306465
Foam.
1275
517306496
Foam.
1300
517305985
Rear Stud.
1310
517305988
Front Stud.
145
517305763
RH Front Hood Foam.
146
517306001
RH Hood Foam.
150a
517307153
Manta Green, LH Front Hood.
150b
517307154
Manta Green, LH Rear Hood.
155
517306690
LH Hood Trim.
1800a
517305290
Deep Black, LH Arm.
1800b
517305293
Deep Black, RH Arm.
1800c
517305291
LH Deflector, Smoke 60% Transm.
1800d
517305294
RH Deflector, Smoke 60% Transm.
1800e
517306405
Manta Green, LH Cap.
1800f
517306406
Manta Green, RH Cap.
1800g
517305296
Bride.
1800h
250000760
Torx Screw Truss Head K50X20 T20.
1800j
250000724
Torx Screw M5 X 20.
185
250200166
Washer.
195
517305764
LH Front Hood Foam.
196
517306002
LH Hood Foam.
200
517306830
Rear Console.
210
233251434
Flanged Elastic Nut M5.
240
517306602
Console Nut.
2400
517305752
Headlamp. Includes 2400 to 2400a.
2400a
415130081
Bulb.
250
706002839
O-Ring.
2800
517305776
RH Deflector Black 63% Light Transm.
3000
517305777
Deflector LH, Black 63% Light Transm.
3010
517302841
Grommet.
3200a
732610072
Push Nut.
3400a
517305157
Seal Joint.
360
517306582
LH Front Console.
365
572051500
Cap.
3800
517306301
Headlamp Fairing.
3810
250000528
Torx Screw M5 X 20.
3820
250000958
Panel Nut M5 X 0.8.
3830
250000725
Screw M4 X 16.
3840
293150230
Tuflok Plastic Rivet.
400
517306302
Reverse Lever Trim.
410
293150104
Pop Rivet 3/16
50
517124300
Washer.
55
517305109
Rivet Plate.
60
508000853
Push Nut.
600
517306304
Gauge Support.
620
250000587
Torx Screw M5 X 26.
800
860201448
Low Windshield Kit, , Black. Includes 800 to 800e.
800a
517306423
Windshield 360.
800b
517305749
Windshield Support, Deep Black.
800c
732610072
Push Nut.
800d
250200024
Rubber Washer 5 mm.
800e
293250087
Gasket, Neoprene.
810
517303756
Grommet.
