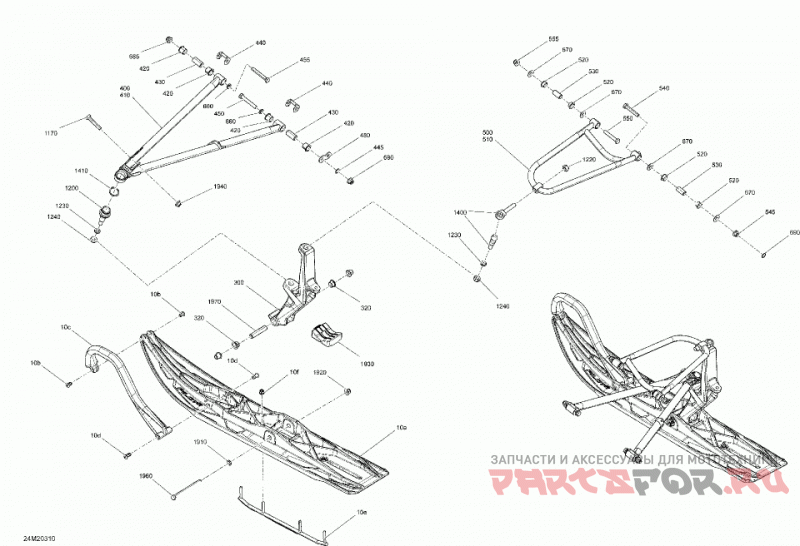

07- suspension, front - system - racing

Ski-Doo (Bombardier) 003 - MXZ 600RS - Europe

Ski-Doo (Bombardier)
#oem кодцена
10a
505074670
Black, Racing Ski.
10b
505071812
Retainer 17mm long.
10c
505074308
Handle.
10d
505072133
Retainer 23mm Long.
10e
860201697
Runner Kit.
10p
233281414
Hex. Flanged Elastic Nut M8.
1170
207005554
Hex Screw M10 X 1.5 X 55.
1200
505074133
Ball Joint.
1220
250100089
Hex. Elastic Hex. Nut M12.
1230
503192491
Washer.
1240
232521464
Hex Elastic Nut M12 X 1.25.
1400
505072257
Upper Ball Joint.
1410
293370098
Snap Ring.
1910
503192496
Washer.
1920
233201464
Hex. Elast. Flanged Nut M10 x 1.5.
1930
505072594
Ski Stopper.
1940
233201436
Hex. Flanged Elastic Nut M10.
1960
250000703
Hex. Screw M10 X 130.
1970
505073691
Ski Axle.
300
505074649
Deep Black, Ski Leg. Includes 300 to 300e.
320
505072690
Leg Bushing.
400
505074655
RH Lower Arm. Includes 400 to 400h.
410
505074654
LH Lower Arm. Includes 410 to 410h.
420
503191766
Cushion.
430
505072401
Aluminum Bushing.
440
505072634
Wear Plate.
445
505072448
O-Ring.
450
250001024
Screw Hex. M10 X 70.
455
250001024
Screw Hex. M10 X 70.
480
505074424
Rear Reinforcement.
500
505074899
LH Upper Arm. Includes 500 to 500f.
510
505074900
RH Upper Arm. Includes 510 to 510f.
520
505073018
Bushing.
530
505072143
Sleeve.
540
250001023
Screw Hex. M10 X 60.
545
250100165
Hex. Flanged Elastic Nut M10.
550
250001023
Screw Hex. M10 X 60.
555
250100165
Hex. Flanged Elastic Nut M10.
660
503189564
Washer.
670
505072392
Washer.
680
250100165
Hex. Flanged Elastic Nut M10.
685
250100165
Hex. Flanged Elastic Nut M10.
690
505072448
O-Ring.
