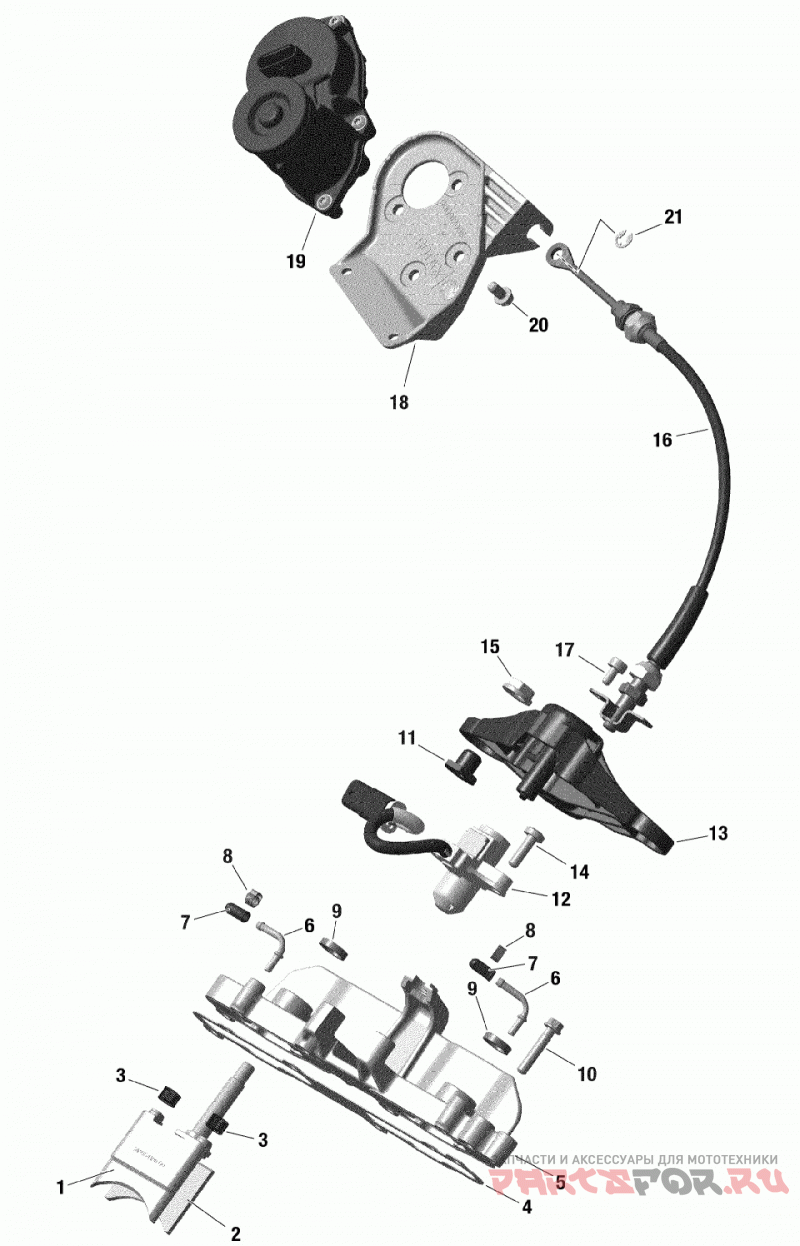

01- engine - rave valve - 598 rs

Ski-Doo (Bombardier) 003 - MXZ 600RS - Europe

01- engine - rave valve - 598 rs

#

oem код

название

цена

1

Exhaust Valve Upper.

Exhaust Valve Upper.

10

Flanged Torx Screw M6 X 30.

Flanged Torx Screw M6 X 30.

11

Collar Nut M8.

Collar Nut M8.

12

Valve Bar With Position Sensor. Includes 12 to 13.

Valve Bar With Position Sensor. Includes 12 to 13.

14

Flanged Torx Screw M6 X 20.

Flanged Torx Screw M6 X 20.

15

Nut M12 X 1.5.

Nut M12 X 1.5.

17

Allen Screw M5 X 10.

Allen Screw M5 X 10.

18

Mounting Bracket.

Mounting Bracket.

19

Servomotor.

Servomotor.

2

Exhaust Valve Lower.

Exhaust Valve Lower.

20

Flanged Hex. Screw M6 X 12.

Flanged Hex. Screw M6 X 12.

21

Anneau De Retenue.

Anneau De Retenue.

3

Spring.

Spring.

4

Gasket.

Gasket.

6

Fitting 90D.

Fitting 90D.

7

Closure Cap.

Closure Cap.

8

Clamp 5.8-7.0MM.

Clamp 5.8-7.0MM.

9

Oil Seal.

Oil Seal.
