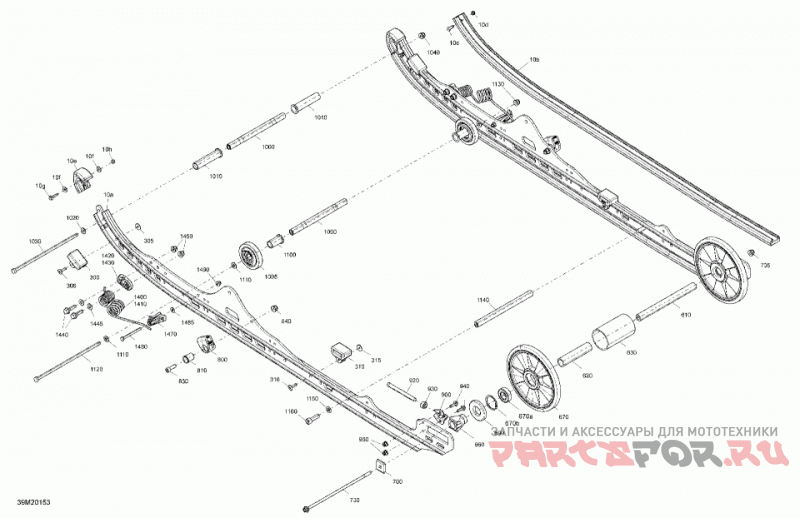

08- suspension, rear - lower section - model 146''

Ski-Doo (Bombardier) 002 - SUMMIT 850 E-TEC - SP - Europe

Ski-Doo (Bombardier)
#oem кодцена
1000
503194939
Axle.
1010
503191259
Center Bushing.
1020
503192494
Washer.
1030
503192440
Bolt M8 X 248mm.
1040
233281466
Elastic Flang Nut M8.
1090
503195522
Pivot Axle.
10a
503195177
Black, Runner 146.
10b
503191499
Black, Slider 146.
10c
208562531
Phillips Screw M6 X 25.
10d
232561434
Elastic Stop Nut M6.
10e
503192299
Runner Protector.
10f
250200140
Washer.
10g
207652544
Hex. Flanged Screw M5 X 25.
10h
233251434
Flanged Elastic Nut M5.
1100
503194864
Spacer.
1110
503192494
Washer.
1120
503192440
Bolt M8 X 248mm.
1130
233281466
Elastic Flang Nut M8.
1140
503191260
Axle Strap.
1150
503192496
Washer.
1160
205503554
Socket Head Screw M10 X 35.
1400
503194900
LH Spring.
1410
503194901
RH Spring.
1420
503194294
LH Support.
1430
503194295
RH Support.
1440
207683054
Hex. Flanged Screw M8 X 30.
1445
503192494
Washer.
1450
233281466
Elastic Flang Nut M8.
1470
503195087
Hook Assy.
1480
207167054
Hex. Cap Screw M6 X 70.
1485
250200039
Flat Washer.
1490
233261466
Hex. Flanged Elastic Nut M6.
300
503190576
Rubber Stopper.
305
503191273
Washer.
306
293150224
Rivet Pop 3/16.
310
503193504
Rubber Stopper.
315
503191273
Washer.
316
293150224
Rivet Pop 3/16.
610
503194200
Rear Axle.
620
503191263
Rear Spacer.
630
503193097
Bushing.
660
503190428
Rear Wheel Spacer.
670a
503190396
Ball Bearing.
670b
415129371
Retaining Ring.
690
503190434
Labyrinth Seal.
700
503194412
Axle Slider.
730
503194265
Bolt.
735
233281466
Elastic Flang Nut M8.
800
503195351
Spring Support.
810
503190754
Retainer Cushion.
830
205082554
Socket Screw M8 X 25.
840
233281466
Elastic Flang Nut M8.
900
503192583
Tensioner.
920
230100054
Hex Screw M10 x 100.
930
233601466
Elastic Locking Nut M10.
940
207562054
Flanged Hex. Screw S.GRIP M6 X 20.
950
233261466
Hex. Flanged Elastic Nut M6.
