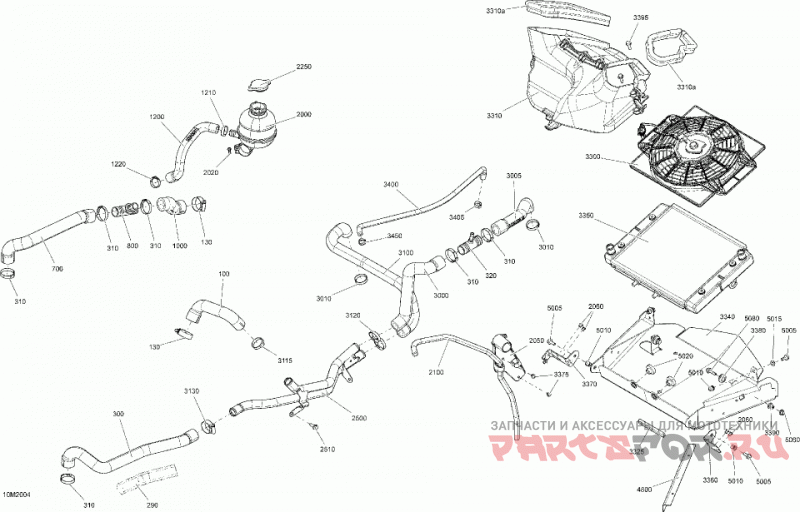

03- cooling - system

Ski-Doo (Bombardier) 001 - TUNDRA 600 ACE - Europe

Ski-Doo (Bombardier)
#oem кодцена
100
509000932
Engine Outlet Hose.
1000
509000921
Radiator Hose.
1010
509000529
Oetiker Gear Clamp, 36.5-706R.
1020
509000443
Aba Gear Clamp, 26-38 MM.
1200
509001063
Filling Hose.
1210
509000442
Oeticker Gear Clamp, 25.6-706R.
1220
293650099
Crimp Clamp.
130
509000443
Aba Gear Clamp, 26-38 MM.
2000
509000875
Cooling Tank.
2020
241151640
Hex. Flanged Screw K50 X 2.24 X 16.
2050
509000694
Front Bracket.
2060
390909200
Avex Rivet.
2100
509000775
Hose.
2250
509000180
Pressure Cap.
2500
509000800
Water Pipe.
2510
207561634
Hex. Flanged Screw M6 X 16, Scotch Grip.
290
509000513
Protector Tube 32 mm.
300
509000634
Hose.
3000
509000617
Radiator Hose.
3005
509000618
Radiator Hose.
3006
509000529
Oetiker Gear Clamp, 36.5-706R.
3010
293650165
Oetiker Gear Clamp.
310
509000529
Oetiker Gear Clamp, 36.5-706R.
3100
509000560
Radiator Hose.
3110
293650165
Oetiker Gear Clamp.
3115
293650141
Oetiker Clamp.
3120
509000735
Clamp.
3130
509000931
Gear Clamp.
320
509000510
T-Fitting.
3310a
293250047
Neoprene Seal ( 3Meter pack ).
3310b
293250047
Neoprene Seal ( 3Meter pack ).
3325
271000110
Protection Trim.
3340
509000988
Radiator Support.
3350
509000972
Radiator.
3360
509000715
Support.
3370
509000772
Support.
3375
390909100
Avex Rivet.
3380
709000582
Grommet.
3390
293900100
Bushing.
3395
207562034
Hex. Flanged Screw M6 X 20, Scotch Grip.
3400
509000860
Breather Hose.
3405
293650047
Crimp Clamp, 15.3-706R.
3450
293650025
Oetiker Gear Clamp.
4800
509000892
Deflector.
4900
390909200
Avex Rivet.
5005
207661654
Hex. Flanged Screw M6 X 16.
5010
293450275
Insert.
5015
224061121
Flat Washer.
5020
709200285
Grommet.
5060
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
5080
207662544
Hex. Flanged Screw M6 X 25.
700
509001062
Radiator Return Hose.
710
509000529
Oetiker Gear Clamp, 36.5-706R.
800
509000372
T-Fitting.
