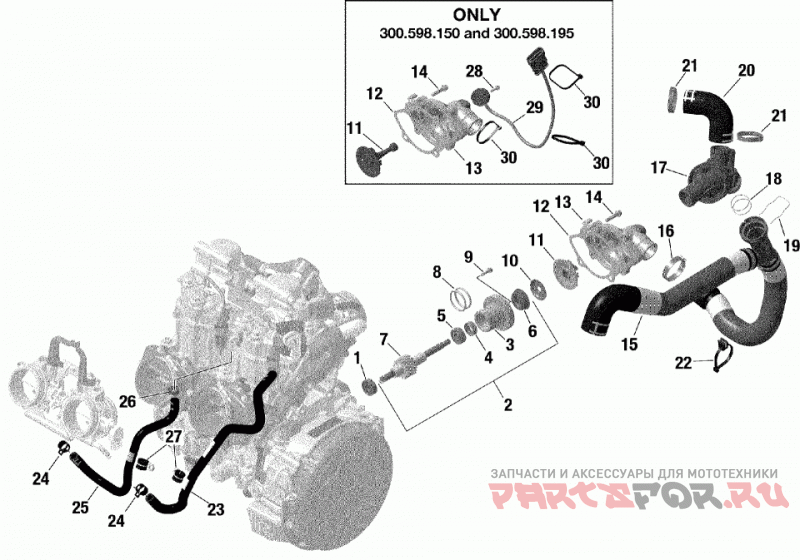

01- engine - cooling - 600r e-tec

Ski-Doo (Bombardier) 001 - SUMMIT 600R E-TEC - Europe

Ski-Doo (Bombardier)
#oem кодцена
1
420232100
Ball Bearing.
10
420944035
Cover Washer.
11
420222507
Impeller. Except SHOT Engine.
11
420222508
Impeller. SHOT Engine.
12
420931812
Gasket.
13
420933633
Water Pump Housing. Except SHOT Engine.
13
420933636
Water Pump Housing. SHOT Engine.
14
420440234
Flanged Torx Screw M6 X 25.
15
420822803
Molded Hose.
16
420951120
Clamp 26-38MM.
17
420822836
Thermostat Housing.
18
420430062
O-Ring.
19
420939344
Spring Clip.
2
420891479
Water Pump Shaft. Except SHOT Engine. Includes 2 to 8.
2
420891478
Water Pump Shaft. SHOT Engine. Includes 2 to 8.
20
420822820
Hose Return.
21
420951120
Clamp 26-38MM.
22
420951652
Tie Rap 200 X 4.6.
23
420201775
Formed Hose.
24
420853511
Clamp.
25
420201771
Formed Hose.
26
420851458
Clamp.
27
420851250
Clamp.
28
420440292
Allen Screw M4 X12. SHOT Engine.
29
420864400
Angle Sensor. SHOT Engine.
3
420847933
Step Collar.
30
293750002
Tie-Rap 142 mm. SHOT Engine.
4
420230198
Oil Seal.
5
420232100
Ball Bearing.
6
420650370
Rotary Seal.
8
420950890
O-Ring.
9
420840514
Allen Screw M5 x 16.
