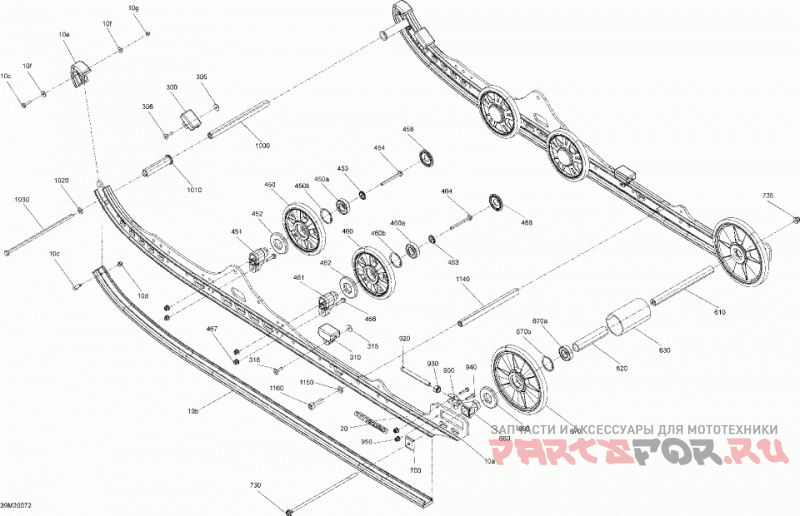

08- suspension, rear - lower section

Ski-Doo (Bombardier) 001 - SUMMIT 600 CARB - North America

Ski-Doo (Bombardier)
#oem кодцена
1000
503194845
Axle.
1010
503191259
Center Bushing.
1020
503192494
Washer.
1030
503192440
Bolt M8 X 248mm.
10a
503193345
Bare Aluminum Runner 146
10b
503191499
Black, Slider 146.
10c
208562531
Phillips Screw M6 X 25.
10d
232561434
Elastic Stop Nut M6.
10e
503192299
Runner Protector.
10f
250200140
Washer.
10g
207652544
Hex. Flanged Screw M5 X 25.
1140
503191260
Axle Strap.
1150
503192496
Washer.
1160
205503554
Socket Head Screw M10 X 35.
300
503190576
Rubber Stopper.
305
503191273
Washer.
306
293150224
Rivet Pop 3/16.
310
503193504
Rubber Stopper.
315
503191273
Washer.
316
293150224
Rivet Pop 3/16.
450a
503190396
Ball Bearing.
450b
415129371
Retaining Ring.
451
503193894
Casted Support.
452
503190434
Labyrinth Seal.
453
503191820
Wheel Cup M6.
454
250000944
Hex. Flange Screw M6 X 70.
458
503192771
Black, Wheel Cap.
460a
503190396
Ball Bearing.
460b
415129371
Retaining Ring.
461
503193894
Casted Support.
462
503190434
Labyrinth Seal.
463
503191820
Wheel Cup M6.
464
250000944
Hex. Flange Screw M6 X 70.
466
250000945
Hex. Flange Screw M6 X 25.
467
233261466
Hex. Flanged Elastic Nut M6.
468
503192771
Black, Wheel Cap.
610
503194200
Rear Axle.
620
503191263
Rear Spacer.
630
503193097
Bushing.
660
503190428
Rear Wheel Spacer.
670a
503190396
Ball Bearing.
670b
415129371
Retaining Ring.
690
503190434
Labyrinth Seal.
700
503194412
Axle Slider.
730
503194265
Bolt.
735
233281466
Elastic Flang Nut M8.
900
503192583
Tensioner.
920
230100054
Hex Screw M10 x 100.
930
233601466
Elastic Locking Nut M10.
940
207562054
Flanged Hex. Screw S.GRIP M6 X 20.
950
233261466
Hex. Flanged Elastic Nut M6.
