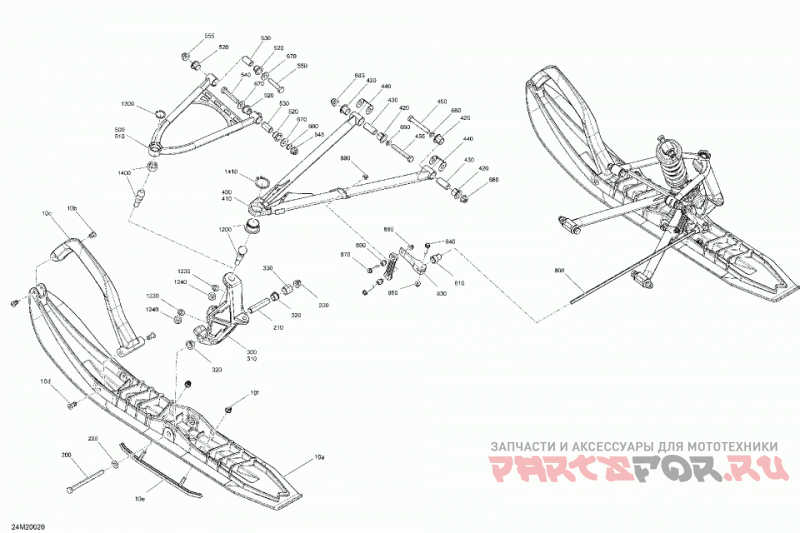

07- suspension, front - system

Ski-Doo (Bombardier) 001 - SUMMIT 600 CARB - North America

Ski-Doo (Bombardier)
#oem кодцена
10a
505073227
Black, DS 2 Ski.
10b
505071812
Retainer 17mm long.
10c
505072976
Black, Handle.
10d
505072133
Retainer 23mm Long.
10e
860201044
Carbide Runner Kit (Square Runner).
10f
233281414
Hex. Flanged Elastic Nut M8.
1200
505073636
Ball Joint.
1230
503192491
Washer.
1240
232521464
Hex Elastic Nut M12 X 1.25.
1300
293370070
Circlip.
1400
505072913
Upper Ball Joint.
1410
293370035
Circlip.
200
250000703
Hex. Screw M10 X 130.
210
506133300
Spacer.
220
732900049
Washer.
230
233201414
Hex. Flanged Elastic Nut M10.
300
505073557
Clear, LH Ski Leg.
310
505073558
Clear, RH Ski Leg.
320
505072690
Leg Bushing.
330
503193651
Spacer.
400
505073040
Black, Lower Arm RH.
410
505073039
Black, LH Lower Arm.
420
505072208
Bushing.
430
505072209
Sleeve.
440
505072634
Wear Plate.
450
250001024
Screw Hex. M10 X 70.
455
250001024
Screw Hex. M10 X 70.
500
505073466
Black Upper Arm LH 36
510
505073467
Black Upper Arm RH 36
520
505072250
Bushing.
530
505072143
Sleeve.
540
250001023
Screw Hex. M10 X 60.
545
250100165
Hex. Flanged Elastic Nut M10.
550
250001022
Screw Hex. M10 X 50.
555
250100165
Hex. Flanged Elastic Nut M10.
660
503189564
Washer.
670
505072392
Washer.
680
250100165
Hex. Flanged Elastic Nut M10.
685
250100165
Hex. Flanged Elastic Nut M10.
690
505072448
O-Ring.
800
505073609
Stabilisator.
810
505072786
Bushing.
830
505073176
Stabilisator Lever.
840
207663056
Hex Flanged Screw M6 X 1.0 X 30.
850
233261466
Hex. Flanged Elastic Nut M6.
860
505073172
Double Ball Joint Link.
870
207663056
Hex Flanged Screw M6 X 1.0 X 30.
880
233261466
Hex. Flanged Elastic Nut M6.
