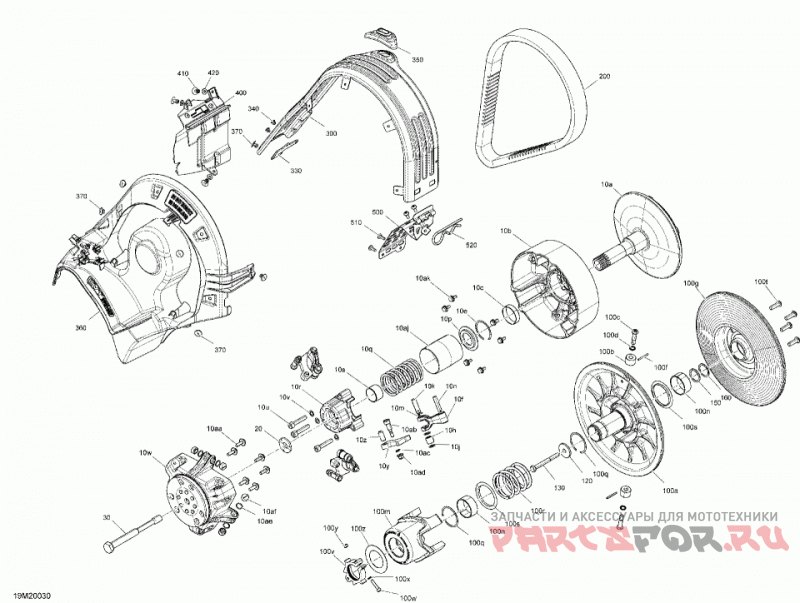

05- pulley - system

Ski-Doo (Bombardier) 001 - SUMMIT 600 CARB - North America

05- pulley - system

#

oem код

название

цена

100b

Roller.

Roller.

100c

Pivot Stud.

Pivot Stud.

100d

Lock Washer 8 mm.

Lock Washer 8 mm.

100f

Spring Pin M3 X 30.

Spring Pin M3 X 30.

100n

Bushing ID 41mm OD 45mm X 19mm L.

Bushing ID 41mm OD 45mm X 19mm L.

100q

Circlip.

Circlip.

100r

Black Spring.

Black Spring.

100s

Swivel Abutment.

Swivel Abutment.

100t

Screw-Torx Button Head M8 X 25 S.Gr.

Screw-Torx Button Head M8 X 25 S.Gr.

100w

Socket Screw M5 X 25.

Socket Screw M5 X 25.

100x

Flat Washer M5.

Flat Washer M5.

100y

Elastic Stop Nut M5.

Elastic Stop Nut M5.

100z

Washer.

Washer.

10aa

Flanged Hex. Screw M6 X 18, Scotch Grip.

Flanged Hex. Screw M6 X 18, Scotch Grip.

10ab

Calibration Screw.

Calibration Screw.

10ac

Washer.

Washer.

10ad

Hex. Flanged Elastic Nut M6 x 1.0.

Hex. Flanged Elastic Nut M6 x 1.0.

10ae

O-Ring.

O-Ring.

10af

Slider Shoe.

Slider Shoe.

10ag

Guard.

Guard.

10ah

Flanged Hex. Screw M6 X 12, Scotch Grip.

Flanged Hex. Screw M6 X 12, Scotch Grip.

10c

Bushing.

Bushing.

10e

Circlip.

Circlip.

10f

Lever. Includes 10f to 10g.

Lever. Includes 10f to 10g.

10h

Roller.

Roller.

10j

Stopper Washer.

Stopper Washer.

10k

Pin.

Pin.

10m

Cotter Pin.

Cotter Pin.

10n

Lever Axle.

Lever Axle.

10p

Spring Seat.

Spring Seat.

10q

Spring (Blue/Pink).

Spring (Blue/Pink).

10s

Bushing.

Bushing.

10u

Socket Head Screw M8 X 1.25 X 40.

Socket Head Screw M8 X 1.25 X 40.

10v

Lock Washer 8 mm.

Lock Washer 8 mm.

10y

Ramp 417.

Ramp 417.

10z

Spring Pin M10 X 22.

Spring Pin M10 X 22.

120

Strength Washer.

Strength Washer.

130

Hex. Cap Screw M8 X 75.

Hex. Cap Screw M8 X 75.

150

Spacer.

Spacer.

160

Spacer.

Spacer.

20

Conical Spring Washer M14.

Conical Spring Washer M14.

200

Drive Belt.

Drive Belt.

30

Drive Pulley Bolt.

Drive Pulley Bolt.

300

Belt Guard.

Belt Guard.

330

Front Bracket.

Front Bracket.

340

Avex Rivet.

Avex Rivet.

350

Guide.

Guide.

360

CVT Air Duct.

CVT Air Duct.

370

Pop Rivet 3/16

Pop Rivet 3/16

400

Front Support.

Front Support.

410

Pop Rivet 3/16

Pop Rivet 3/16

420

Flat Washer.

Flat Washer.

450

Reinforcement Plate.

Reinforcement Plate.

460

Avex Rivet.

Avex Rivet.

500

Belt Guard Bracket.

Belt Guard Bracket.

510

Torx Screw M5 X 14.

Torx Screw M5 X 14.

520

Hair Pin.

Hair Pin.
