  5. 001 - SKANDIC WT 550F - North America

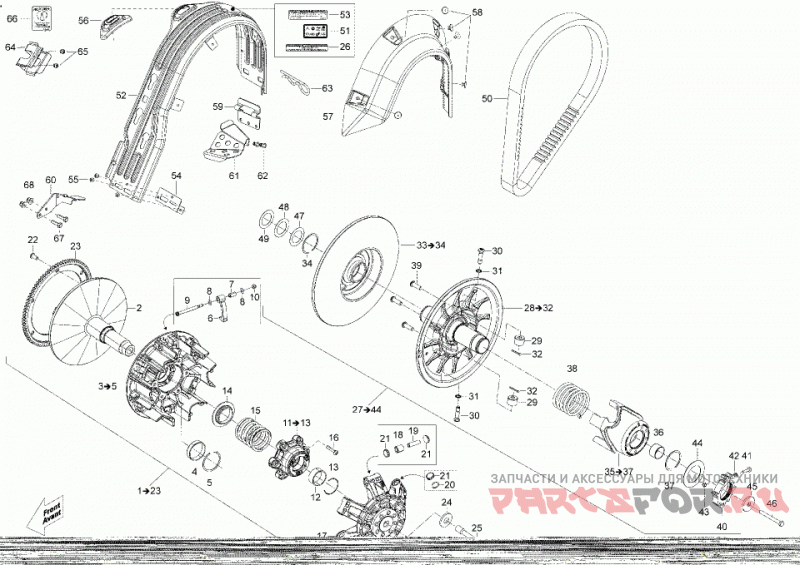

05- pulley - system

Ski-Doo (Bombardier) 001 - SKANDIC WT 550F - North America

Ski-Doo (Bombardier)
#oem кодцена
10
232551414
Elastic Stop Nut M5.
13
293370065
Circlip.
14
417223752
Seat Spring.
15
417223748
Spring Clutch.
16
250000580
Torx Screw M6 X 30.
18
417223767
Roller.
19
417223257
Roller Axle.
20
293300185
O-Ring.
21
417223919
Slider Shoe.
22
250000706
Torx Button Head Screw M8 X 16.
23
417223476
Crown Gear Launch.
24
250200144
Conical Spring Washer M14.
25
417300432
Pulley Drive Bolt.
26
516005503
Decal English.
38
417127243
Spring, White.
39
250000757
Screw-Torx Button Head M8 X 25 S.Gr.
4
417222758
Bushing.
41
205052544
Socket Screw M5 X 25.
42
234051410
Flat Washer M5.
43
232551414
Elastic Stop Nut M5.
44
417127155
Washer.
45
517302322
Strength Washer.
46
207287544
Hex. Cap Screw M8 X 75.
47
417300252
Spacer.
48
417300265
Spacer.
49
504112000
Shim.
5
293370037
Circlip.
50
414860700
Drive Belt.
51
516003919
Warning Decal. Europe.
52
417300382
Belt Guard.
53
516006900
Security Label, Belt Guard.
54
417300380
Reinforcement.
55
390909200
Avex Rivet.
56
417300381
Guide.
57
417300356
Side Protector.
58
293150103
Pop Rivet 3/16
59
417300363
Belt Guard Bracket.
6
417223604
Ramp 700.
60
417300451
Belt Guard Bracket.
61
518325626
Brake Hose Cover.
62
293150163
Rivet Hucklok.
63
114045200
Hair Pin.
64
517281905
Bracket.
65
390909100
Avex Rivet.
66
516007493
Belt Decal, English.
70
293150096
Hemlock Rivet, 6.5 mm.
8
417223255
Thrust Washer.
9
417223694
Ramp Axle.
