  5. 001 - SKANDIC WT 550F - North America

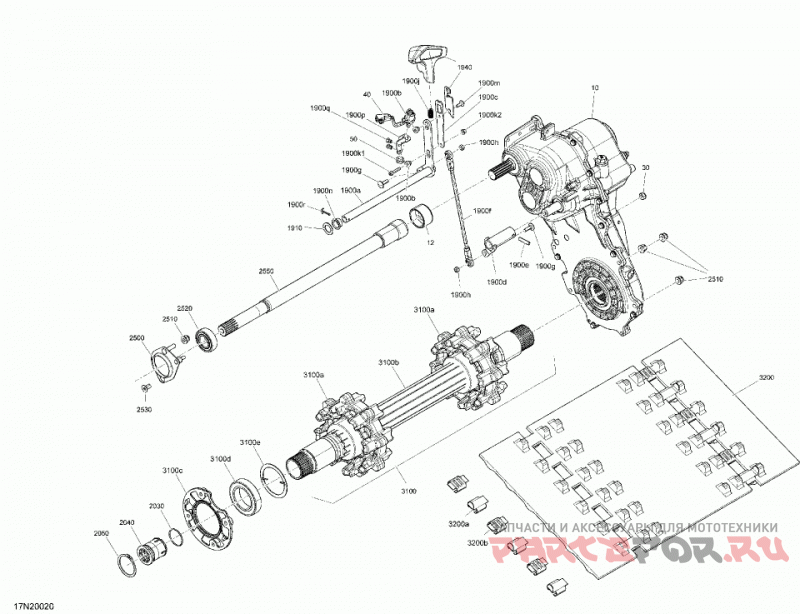

05- drive - system

Ski-Doo (Bombardier) 001 - SKANDIC WT 550F - North America

Ski-Doo (Bombardier)
#oem кодцена
10a
504152896
Rotation Sensor.
12
504153054
Protective Rubber.
1900a
504153288
Lever Shifter.
1900b
504152787
Sleeve.
1900c
504153287
Shifter Arm.
1900d
504153278
Lever. Gear Box 2.30.
1900d
504153280
Welded Lever. Gear Box 1.98.
1900e
41012
Pin.
1900f
504153258
Shifter Rod.
1900g
250000677
Carriage Bolt M6 X 20.
1900h
232561434
Elastic Stop Nut M6.
1900j
504152882
Spring.
1900k1
205052544
Socket Screw M5 X 25.
1900k2
233251434
Hex. Flanged Elastic Nut M5.
1900m
250000676
Forming Screw M5 x 16.
1900n
504152890
Bushing.
1900p
504152902
Sensor Bracket.
1900q
293150163
Rivet Hucklok.
1900r
250400035
Cotter Pin.
1910
503189273
Washer.
1940
504152837
Handle.
2030
293300122
O-Ring.
2040
504152619
Magnetic Cap.
2050
504152572
Circlip.
2500
504153187
Bearing Housing.
2510
233281414
Hex. Flanged Elastic Nut M8.
2520
293350074
Ball Bearing.
2530
235381646
Torx Screw M8 X 16, Scotch Grip.
2550
504152963
Counter Shaft. Gear Box 2.30.
2550
504153070
Counter Shaft. Gear Box 1.98.
30
232581414
Hex. Elastic Stop Nut M8.
3100c
504153426
Retaining Ring.
3100d
293350059
Ball Bearing.
3100e
504153207
Shim.
3200
605613004
Track. Includes 3200 to 3200b.
3200a
415129528
Track Guide.
3200b
415129529
Cleat.
50
250000373
Brass Nut.
