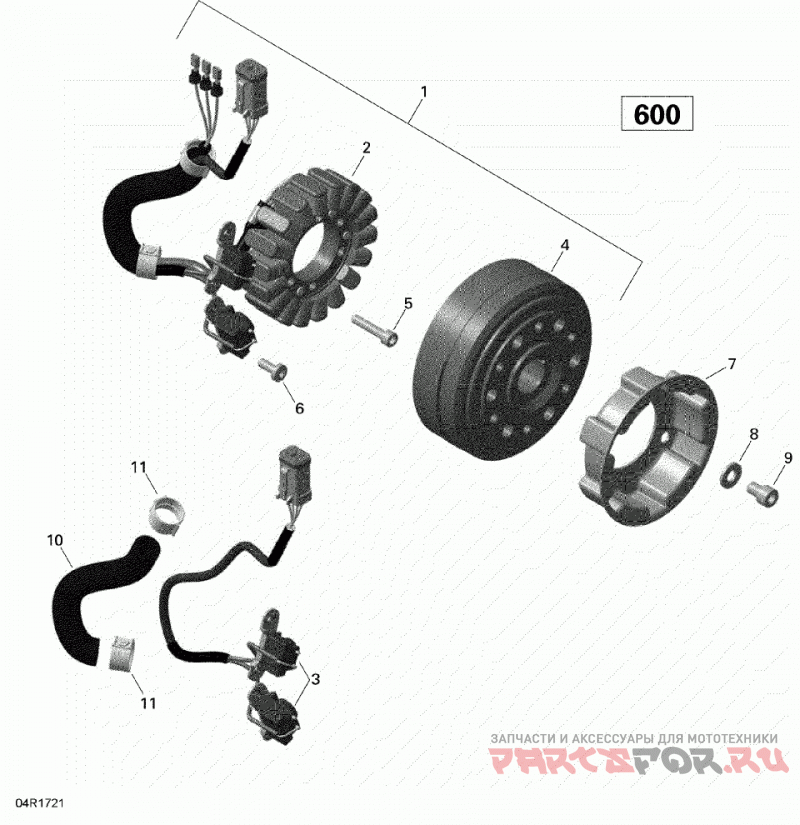

10- electric - magneto - 600 carb
Ski-Doo (Bombardier) 001 - RENEGADE 600 CARB - North America
| # | oem код | название | цена |
|---|---|---|---|
10 | 420460871 Tube. | Tube. | |
11 | 420960896 Conduit Clip. | Conduit Clip. | |
2 | 420889904 Stator Plate. Includes 2 to 3. | Stator Plate. Includes 2 to 3. | |
4 | 420665722 Flywheel. | Flywheel. | |
5 | 205063044 Socket Head Screw M6 X 30. | Socket Head Screw M6 X 30. | |
6 | 420640324 Torx Screw M6 X 16. | Torx Screw M6 X 16. | |
7 | 420852590 Starting Pulley. | Starting Pulley. | |
8 | 420827405 Flat Washer. | Flat Washer. | |
9 | 420841520 Socket Head Screw M8 X 12. | Socket Head Screw M8 X 12. |
