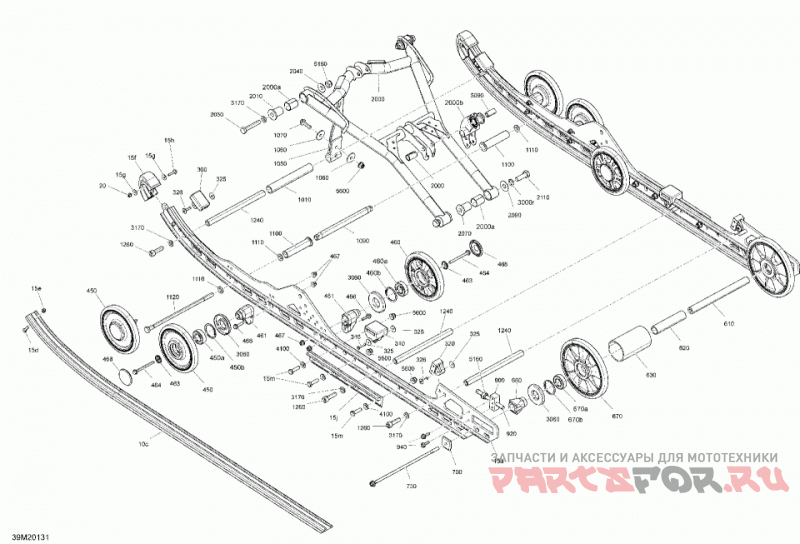

08- suspension, rear - lower section

Ski-Doo (Bombardier) 001 - FREERIDE 137 850 E-TEC - North America

Ski-Doo (Bombardier)
#oem кодцена
1010
503192678
Spacer.
1050
503192759
Stopper Strap.
1060
250200128
Flat Washer 8 mm.
1070
207683044
Hex. Flanged Screw M8 X 30.
1090
503193435
Pivot Axle.
10c
503191306
Black, Slider Shoe 137'.
1100
503191259
Center Bushing.
1110
250200143
Flat Washer.
1120
503193227
Bolt M10 X 251MM.
1240
503191260
Axle Strap.
1260
205503554
Socket Head Screw M10 X 35.
15a
503194533
White, Runner 137
15d
208562531
Phillips Screw M6 X 25.
15e
232561434
Elastic Stop Nut M6.
15f
503192530
Slide Protector.
15g
250200140
Washer.
15h
207652544
Hex. Flanged Screw M5 X 25.
15j
503193726
Black Reinforcement Runner.
15m
207183054
Hex. Cap Screw M8 X 30.
20
233251434
Flanged Elastic Nut M5.
2000a
503191554
Bushing.
2000b
503192531
Rocker.
2010
503190698
Axle.
2040
503191926
Washer.
2050
207006056
Hex. Cap Screw M10 X 60.
2070
503191966
Lower Axle.
2090
503190656
Washer.
2110
250000537
Hex. Cap Screw M12 X 35.
300
503190576
Rubber Stopper.
3000r
503192491
Washer.
3060
503190434
Labyrinth Seal.
316
293150013
Pop Rivet 3/16
3170
503192496
Washer.
320
503192750
Rubber Stopper.
325
503191273
Washer.
326
293150224
Rivet Pop 3/16.
4100
503192494
Washer.
450a
503190396
Ball Bearing.
450b
415129371
Retaining Ring.
460a
503190396
Ball Bearing.
460b
415129371
Retaining Ring.
461
503193894
Casted Support.
463
503191820
Wheel Cup M6.
464
250000944
Hex. Flange Screw M6 X 70.
466
250000945
Hex. Flange Screw M6 X 25.
467
233261466
Hex. Flanged Elastic Nut M6.
468
503192771
Black, Wheel Cap.
5090
503189282
Bushing.
5160
233601466
Elastic Locking Nut M10.
5600
233281466
Elastic Flang Nut M8.
610
503194200
Rear Axle.
620
503191263
Rear Spacer.
630
503193097
Bushing.
660
503190428
Rear Wheel Spacer.
670a
503190396
Ball Bearing.
670b
415129371
Retaining Ring.
700
503194412
Axle Slider.
730
503194265
Bolt.
900
503193808
Tensioner.
920
230100054
Hex Screw M10 x 100.
940
207562054
Flanged Hex. Screw S.GRIP M6 X 20.
