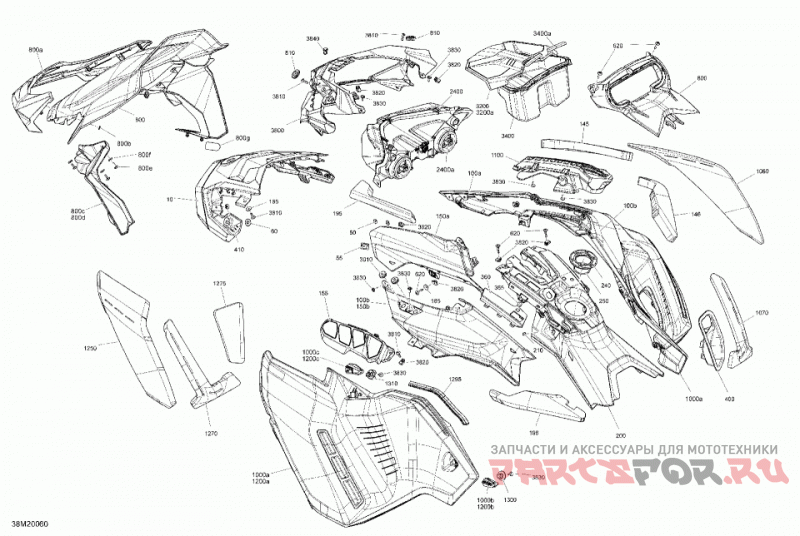

09- body - hood section

Ski-Doo (Bombardier) 001 - EXPEDITION SPORT 600 ACE, Europe

Ski-Doo (Bombardier)
#oem кодцена
10
517306288
Deep Black, Center Hood.
1000a
517306747
Deep Black, RH Panel.
1000b
517305773
RH Rear Latch.
1000c
517305979
RH Front Latch.
100a
517306546
RH Front Hood.
100b
517306547
RH Rear Hood.
1060
517306843
Foam.
1070
517306845
Foam.
1100
517307049
Grill.
1200a
517306750
Deep Black, LH Panel.
1200b
517305774
LH Rear Latch.
1200c
517305980
LH Front Latch.
1250
517306863
Foam.
1270
517306865
Foam.
1275
517306496
Foam.
1295
293250047
Neoprene Seal ( 3Meter pack ).
1300
517305985
Rear Stud.
1310
517305988
Front Stud.
145
517305763
RH Front Hood Foam.
146
517306001
RH Hood Foam.
150a
517306549
LH Front Hood.
150b
517306550
LH Rear Hood.
155
517306690
LH Hood Trim.
185
250200166
Washer.
195
517305764
LH Front Hood Foam.
196
517306002
LH Hood Foam.
200
517306830
Rear Console.
210
233251434
Flanged Elastic Nut M5.
240
517306602
Console Nut.
2400
517305752
Headlamp. Includes 2400 to 2400a.
2400a
415130081
Bulb.
250
706002839
O-Ring.
3010
517302841
Grommet.
3200a
732610072
Push Nut.
3400a
517305157
Seal Joint.
360
517306582
LH Front Console.
365
572051500
Cap.
3800
517306301
Headlamp Fairing.
3810
250000528
Torx Screw M5 X 20.
3820
250000958
Panel Nut M5 X 0.8.
3830
250000725
Screw M4 X 16.
3840
293150230
Tuflok Plastic Rivet.
400
517306302
Reverse Lever Trim.
410
293150104
Pop Rivet 3/16
50
517124300
Washer.
55
517305109
Rivet Plate.
60
508000853
Push Nut.
600
517306304
Gauge Support.
620
250000587
Torx Screw M5 X 26.
800a
517306183
Deep Black, Windshield Support.
800b
732610072
Push Nut.
800c
517306063
Deflector RH, Black 63% Light Transm.
800d
517306064
Deflector LH, Black 63% Light Transm.
800e
250000889
Screw M4 X 16.
800f
250200024
Rubber Washer 5 mm.
800g
516009227
Decal.
810
517303756
Grommet.
