03- cooling - system
Ski-Doo (Bombardier) 001 - EXPEDITION SPORT 550F - North America

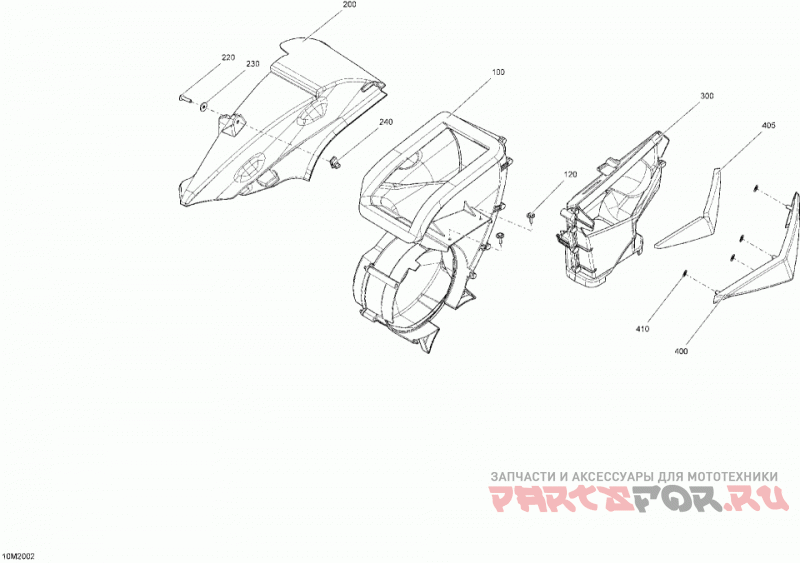

| # | oem код | название | цена |
|---|---|---|---|
100 | 509000840 Inlet Duct. | Inlet Duct. | |
120 | 250000725 Screw M4 X 16. | Screw M4 X 16. | |
200 | 509000451 Air Chamber. | Air Chamber. | |
220 | 250000724 Torx Screw M5 X 20. | Torx Screw M5 X 20. | |
230 | 391301600 Washer. | Washer. | |
240 | 250000958 Panel Nut M5 X 0.8. | Panel Nut M5 X 0.8. | |
300 | 509000452 Outlet Duct. | Outlet Duct. | |
400 | 509000611 Outlet Air Deflector. | Outlet Air Deflector. | |
405 | 509000574 Air Inlet Foam. | Air Inlet Foam. | |
410 | 732610072 Push Nut. | Push Nut. |
