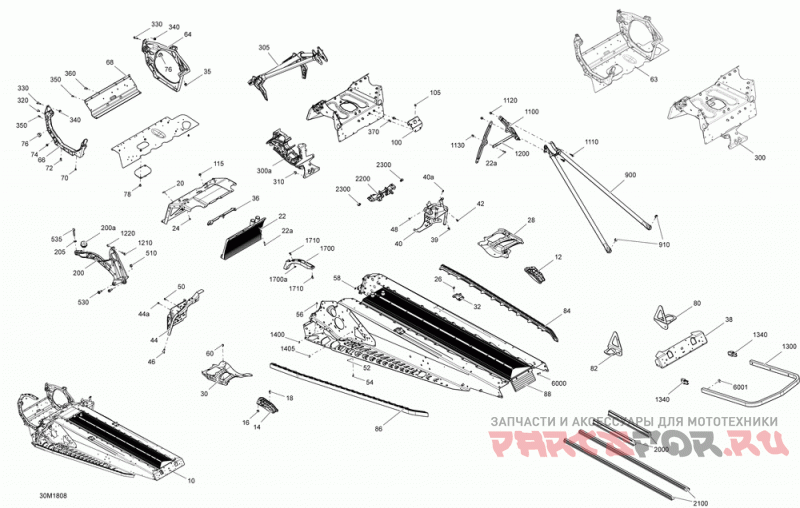

09- frame engine 900 ace mxz - all package

Ski-Doo (Bombardier) MXZ 900 ACE

Ski-Doo (Bombardier)
#oem кодцена
10
415130092
Yellow Frame 129 900ace Sunburst Yellow Models
10
415130095
Black Frame 129 900ace Deep Black Models
12
518325782
Rh Deflector
14
518325783
Lh Deflector
16
293150104
Pop Rivet 3/16" (25.000 Per Pack)
18
207561244
Hex. Flanged Screw M6 X 12, Scotch Grip
20
518325560
Adhesive Patch
22
518327907
Front Radiator Ass Y
22a
250300027
Clinch Stud M6 X 20
24
293150203
Avibulb *avibulb
26
293150174
Hemlock Rivet, 6.4 Mm (10.000 Per Pack)
28
518326937
Renfort Dr *reinforcement
30
518326938
Renfort Ga *reinforcement
32
518325973
Rh Rear Base
32
518325974
Lh Rear Base
35
293450275
Вставка
36
518326656
Уплотнение
38
518327105
Rear Cap
39
293450275
Вставка
40
518328942
Etrier Droit *rh.stirup
40a
390909200
Avex Rivet (50.000 Per Pack)
42
293450268
Вставка
44
518328528
Etrier Ga *lh.stirup
44a
390909200
Avex Rivet (50.000 Per Pack)
46
250000752
Screw-pan Hd.torx M8x25 Scotch Grip
48
293730042
Full Moon Dart 5 Mm
50
293450268
Вставка
52
293150203
Avibulb *avibulb
54
390909100
Avex Rivet (50.000 Per Pack)
56
293150144
Stavex Rivet (20.000 Per Pack)
58
293150146
Henrob Rivet (10.000 Per Pack)
60
293150119
Hemlock Rivet, 6.5 Mm (5.000 Per Pack)
63
518328078
"e" Module
64
518326328
Rh Side Member
66
518326330
Lh Side Member
68
518326198
Front Member
70
293150144
Stavex Rivet (20.000 Per Pack)
72
293150120
Hemlock Rivet 6.5 Mm (4.000 Per Pack)
74
293150119
Hemlock Rivet, 6.5 Mm (5.000 Per Pack)
76
505073317
Втулка
78
250000767
Torx-truss M/s Nylon Patch M6 X 12
80
518328344
Attache Droite *rh.bracket
82
518328345
Кронштейн левый
84
518327472
Rh Roller
86
518327473
Lh Roller
88
518328648
Radiateur Arr.s*rear Rad. Weld
100
518326178
Engine Support
105
293150174
Hemlock Rivet, 6.4 Mm (10.000 Per Pack)
115
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
200
518327535
Bretelle Ass *as Brace Includes 200 To 200a
200a
512060295
Rubber Mount
205
234281474
Conical Spring Washer M8 (10.000 Per Pack)
300
518328320
Module S *cross Member
300a
518327487
Front Suspension Support
305
518327565
Front Member
310
233281414
Hex. Flanged Elastic Nut M8 (10.000 Per Pack)
320
250000822
Screw-forming Hex.hd.fl. M6 X 16
330
207662544
Hex. Flanged Screw M6 X 25 (25.000 Per Pack)
340
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
350
293150191
Monobolt Rivet, 4.8 Mm (4.000 Per Pack)
360
293150182
Monobolt Rivet 6.4 (2.000 Per Pack)
370
207661644
Hex. Flanged Screw M6 X 16 (25.000 Per Pack)
510
233281414
Hex. Flanged Elastic Nut M8 (10.000 Per Pack)
530
250000351
Hex. Flanged Screw M8 X 25, Nylon (5.000 Per Pack)
535
207584034
Винт
900
518326559
Rear Member
910
233281414
Hex. Flanged Elastic Nut M8 (10.000 Per Pack)
1100
518326848
Upper Column Support
1110
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
1120
233261416
Elastic Flanged Nut M6
1130
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
1200
518326355
Center Column Support Includes 1200 To 1200a
1210
207662544
Hex. Flanged Screw M6 X 25 (25.000 Per Pack)
1220
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
1300
518327637
Black Rear Bumper
1340
520000840
Black Cap
1400
293730047
Black Dart 8 Mm
1405
293730060
Black Dart 10 Mm
1700>1700a
518326973
Front Protector Includes 1700 To 1700a
1700a
517124300
Rondelle *washer (10.000 Per Pack)
1710
293150108
Pop Rivet 3/16 (25.000 Per Pack)
2000
860200802
Prot. Chassis *tunnel Prot.
2100
860200802
Prot. Chassis *tunnel Prot.
2200
518327145
Sub A Support
2300
250000079
Panel Nut M5 X 0.8 (10.000 Per Pack)
6000
250000779
Torx-truss M/s N.patch M6 X 18
6001
224061201
Flat Washer (10.000 Per Pack)
