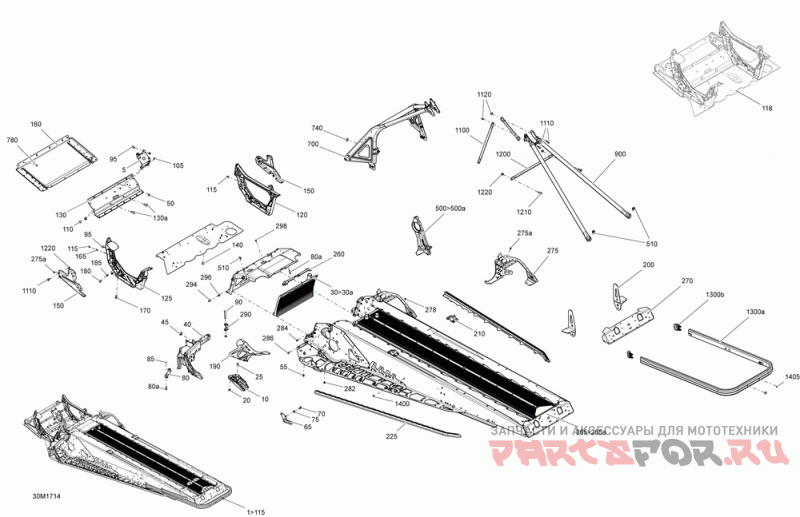

09- frame - all models

Ski-Doo (Bombardier) TUNDRA - 2-STROKE - XTREME

Ski-Doo (Bombardier)
#oem кодцена
5
518325943
Mag Engine Support
10
518325782
Резус Дефлектор
10
518325783
Дефлектор
20
293150104
Поп Заклепки 3/16"
25
207561244
Винт М6 Х 12
30>30a
518326485
Front Radiator Includes 30 To 30a
30>30a
518326486
Front Radiator Includes 30 To 30a
40
518326820
Etrier Ga. *lh.stirup
45
250000079
Гайка М5 Х 0,8
50
293150119
Hemlock Rivet, 6.5 Mm (5.000 Per Pack)
55
293150174
Hemlock Rivet, 6.4 Mm (10.000 Per Pack)
65
518326960
Суппорт
70
250000536
Tork Screw M6 X 18
75
250200039
Flat Washer (10.000 Per Pack)
80
518326986
Attache *attach Includes 80 To 80a
80a
250300027
Clinch Stud M6 X 20
85
232561414
Гайка-стоп
90
250000535
Torx Screw M8 X 55
95
207661644
Hex. Flanged Screw M6 X 16 (25.000 Per Pack)
105
250000512
Socket Screw Head 1/4-20 X 5/8
110
250100140
Elastic Hex. Flange Nut 1/4-20
115
293150191
Monobolt Rivet, 4.8 Mm (4.000 Per Pack)
118
518326927
Module E Tundra Xtreme Includes 118 To 296
120
518326795
Члены правые
125
518326796
Член Левый
130
518326198
Front Member Includes 130 To 130a
130a
250300038
Clinch Stud
140
293150120
Hemlock Rivet 6.5 Mm (4.000 Per Pack)
150
518325949
Rh Front Member
150
518325950
Lh Front Member
160
518325951
Front Bottom Plate
165
390909100
Группа Заклепки
170
293150182
Monobolt Rivet 6.4 (2.000 Per Pack)
180
210261040
Hex. Flanged Screw M6 X 10 (5.000 Per Pack)
185
234061410
Flat Washer 6 Mm (10.000 Per Pack)
190
518324874
Renfort Dr *reinforcement
190
518324875
Renfort Ga *reinforcement
200
518325955
Rh Slide Bracket
200
518325956
Lh Slide Bracket
210
518325973
Rh Rear Base
210
518325974
Lh Rear Base
225
518325159
Rouleau Droit *rh.roller
225
518325160
Rouleau Gauche *lh.roller
260
518326656
Уплотнение
265>265a
518326692
Rear Radiator Ass Y, 154" Includes 265 To 265a
265a
293150144
Stavex Rivet (20.000 Per Pack)
270
518327105
Rear Cap
275
518328938
Etrier Droit *rh.stirup Includes 275 To 275a
275a
390909200
Группа Заклепки
278
293730042
Full Moon Dart 5 Mm
282
293150144
Stavex Rivet (20.000 Per Pack)
284
293150146
Henrob Rivet (10.000 Per Pack)
286
293150147
Hemlock Rivet (10.000 Per Pack)
290
518326961
U-attach
294
250000534
Tork Screw M6 X 16
296
233061414
Hex. Flanged Nut M6 (10.000 Per Pack)
298
390402400
Pop Rivet 3/16" (50.000 Per Pack)
300a
518328327
Module S *cross Member Includes 300a To 300a1
300a1
518327487
Front Suspension Support
300b
518326975
Член Фронта
500>500a
518327133
Driven Pulley Support Includes 500 To 500a
510
233281414
Гайка М8
700
518328306
Front Member, S Module
740
224061201
Flat Washer (10.000 Per Pack)
780
390402200
Pop Rivet 3/16" (50.000 Per Pack)
900
518326559
Rear Member
1100
518325114
Upper Column Support
1110
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
1120
233261416
Elastic Flanged Nut M6
1200
518325115
Center Column Support
1210
207662544
Hex. Flanged Screw M6 X 25 (25.000 Per Pack)
1220
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
1300a
518326611
Black Rear Bumper, 154"
1300b
520000965
Black Rh Cap
1300b
520000964
Black Lh Cap
1400
293730047
Black Dart 8 Mm
1405
293730060
Black Dart 10 Mm
