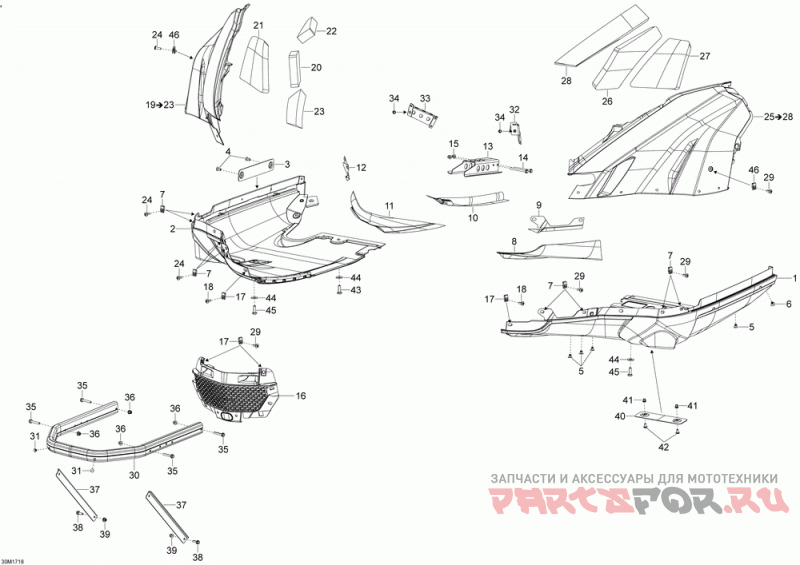

Защита и бампер

Ski-Doo (Bombardier) SKANDIC - 4-STROKE - WT-SWT

Ski-Doo (Bombardier)
#oem кодцена
1
502007447
Bottom-pan Lower Lh.
2
502007446
Bottom-pan Lower Rh.
3
502007255
Heat Isolation Plate
4
293150211
Rivet 4.8x12 Al Black, (1 Pac <=> 50 Pc)
5
293150104
Pop Rivet 3/16" Model Wt (25.000 Per Pack)
6
293150108
Pop Rivet 3/16# Model Wt (25.000 Per Pack)
7
250100113
Panel Nut, M6 X 1.0 (5.000 Per Pack)
8
508000832
Heat Shield Engine 900 Ace
9
508000835
Heat Shield Engine 900 Ace
10
508000837
Heat Shield Engine 900 Ace
11
508000833
Heat Shield Engine 900 Ace
12
508000836
Heat Shield Engine 900 Ace
14
207667056
Винт М6 Х 70
15
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
16
502007140
Передняя решетка
17
250100113
Panel Nut, M6 X 1.0 (5.000 Per Pack)
18
250000722
Torx Screw M6 X 20
19
502007292
Black Bottom Pan Ass Y Rh Includes 19 To 23
20
502007133
Изолятор
21
502007132
Изолятор
22
502007008
Изолятор
23
502007009
Изолятор
24
250000722
Torx Screw M6 X 20
25
502007294
Black Bottom Pan Ass Y Lh Includes 25 To 28
26
502007088
Изолятор
27
502007131
Изолятор
28
502007185
Изолятор
29
250000722
Torx Screw M6 X 20
31
293730041
Full Moon Dart 8 Mm
32
502007535
Bottom Pan Fastener Lh
33
502007536
Bottom Pan Fastener Rh
34
605636003
Clinch Nut M6 Hexsert
35
207664044
Hex. Flanged Screw M6 X 40 (5.000 Per Pack)
36
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
37
502006927
Bumper Support
38
207662044
Hex. Flanged Screw M6 X 20 (25.000 Per Pack)
39
233261414
Hex. Flanged Elastic Nut M6 (10.000 Per Pack)
40
518328879
Oil Plate Lts
41
605636003
Clinch Nut M6 Hexsert
42
250000722
Torx Screw M6 X 20
43
250000752
Screw-pan Hd.torx M8x25 Scotch Grip
44
234082410
Flat Washer 8 Mm (10.000 Per Pack)
45
250000722
Torx Screw M6 X 20
46
250100113
Panel Nut, M6 X 1.0 (5.000 Per Pack)
