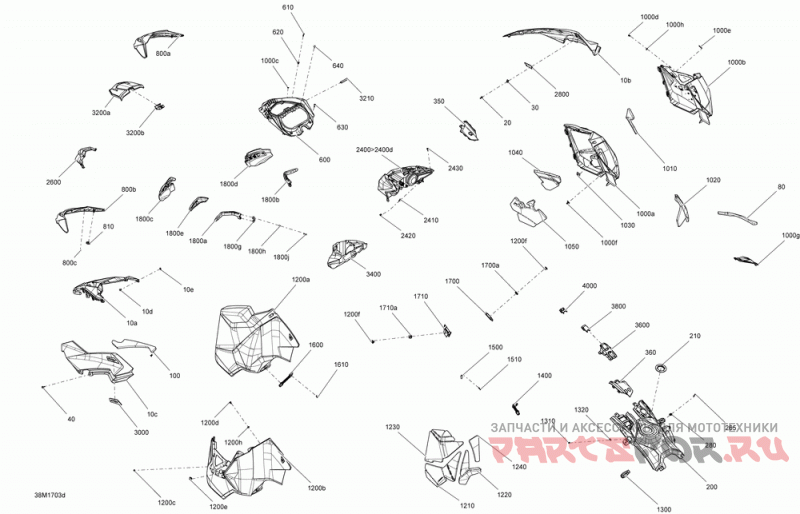

09- hood - package xrs

Ski-Doo (Bombardier) MXZ - 2-STROKE - 600 CARB_600HO E-TEC_800R E-TEC

Ski-Doo (Bombardier)
#oem кодцена
10a
517305368
Grey Center Hood
10a
517304796
Deep Black Center Hood
10b
517305880
Capot Droit *hood-rh
10c
517305879
Capot Gauche *hood-lh
10d
293150104
Поп Заклепки 3/16"
10e
517124300
Rondelle *washer (10.000 Per Pack)
20
250000528
Torx Screw M5 X 20 (5.000 Per Pack)
30
250000079
Гайка М5 Х 0,8
40
250000587
Torx Screw M5 X 26
80
517305090
Rh Rear Hood Foam
100
517305091
Lh Rear Hood Foam
200
517305641
Black Rear Console
210
517304518
заглушка
265
250000705
Винт М6 Х 20
280
250000048
Extruded Panel Nut M6 X 1.0 (10.000 Per Pack)
350
517305549
Rh Front Console
360
517305128
Console Avant *console-front
360
517305143
Deep Black Lh Front Console
600
517305511
Deep Black Indicator Support
610
250000528
Torx Screw M5 X 20 (5.000 Per Pack)
620
250000079
Гайка М5 Х 0,8
630
250000587
Torx Screw M5 X 26
640
414644300
Dart (10.000 Per Pack)
800a
517304931
Windshield 135
800b
517304922
Short Windshield Support Model Black
800b
517305403
Windshield Support Model Gray
800c
732610072
Гайка
810
517303756
Втулка
1000a
517304801
Deep Black Rh Panel
1000a
517305898
Panneau Droit *rh.panel
1000b
517304802
Deep Black Rh Panel Trim
1000d
293150104
Поп Заклепки 3/16"
1000e
517305109
Пластина
1000f
517305734
Палец
1000g
517304935
Rh Panel Vent Grid
1000h
517124300
Rondelle *washer (10.000 Per Pack)
1010
517305197
Rh Center Panel Foam
1020
517305199
Rh Rear Panel Foam
1030
517305451
Тепловой Щит
1040
517305196
Rh Upper Panel Foam
1050
517305198
Rh Lower Panel Foam
1200a
517304804
Deep Black Lh Panel
1200a
517305897
Panneau Gauche *lh.panel
1200b
517304805
Deep Black Lh Flashing Panel
1200c
250100158
Гайка
1200d
293150104
Поп Заклепки 3/16"
1200e
517305109
Пластина
1200f
517305734
Палец
1200h
517124300
Rondelle *washer (10.000 Per Pack)
1210
517305201
Lh Center Panel Foam
1220
517305202
Lh Lower Panel Foam
1230
517305200
Lh Upper Panel Foam
1240
517305203
Lh Rear Panel Foam
1300
517305279
Panel Latch
1310
250000565
Hexalob Screw M4 X 10
1320
250100156
Weld Nut M4
1400
517303612
Rh Panel Latch
1500
517304221
Latch Support
1510
250000792
Torx-truss M/sm5 X 20 (6.000 Per Pack)
1600
517303808
Lh Panel Latch
1610
293150108
Pop Rivet 3/16# (25.000 Per Pack)
1700
517305724
Rh Panel Clip Ass Y Includes 1700 To 1700a
1700a
517305723
Прокладка
1710
517305722
Lh Panel Clip Ass Y Includes 1710 To 1710a
1710a
517305723
Прокладка
1800a
517305290
Lh Arm
1800b
517305293
Rh Arm
1800c
517305291
Дефлектор
1800d
517305294
Резус Дефлектор
1800e
517305601
Black Lh Cap
1800e
517305602
Black Rh Cap
1800e
517305589
Enjoliveur *cap
1800e
517305588
Enjoliveur *cap
1800g
517305296
Bride *bride
1800h
250000760
Винт
1800j
250000724
Звездообразный Винт М5 Х 20
2400>2400d
517306180
Phare *headlamp Includes 2400 To 2400d
2400a
219400070
Крышка
2400b
515176274
Halogen Bulb, 60/55 W, 12 V
2400c
219800282
Holder Bracket
2400d
219800281
Пружина
2410
250000528
Torx Screw M5 X 20 (5.000 Per Pack)
2420
250100035
Гайка М5
2430
250000725
Винт М4 Х 16
2600
517305010
Headlight Trim Cap
2600
517305936
Enjoliveur *cap
2800
517305137
Rh Hood Filler Plate
3000
517305138
Lh Hood Filler Plate
3200a
517304912
Upper Storage Access Cover
3200b
517304917
Cover Latch
3210
517305157
Seal Joint
3400
517305095
Багажник
3600
517304970
Console Support
3800
517305148
Support Console Cap
4000
517305147
Deep Black Support Console Cap
